Product Details | PLATE INSULATOR
5970-00-073-6540 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 8614053, 5970-00-073-6540, 00-073-6540, 5970000736540, 000736540
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-073-6540 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-073-6540
Cross Reference | NSN 5970-00-073-6540
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8614053 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-073-6540
Technical Data | NSN 5970-00-073-6540
| Characteristic | Specifications |
|---|---|

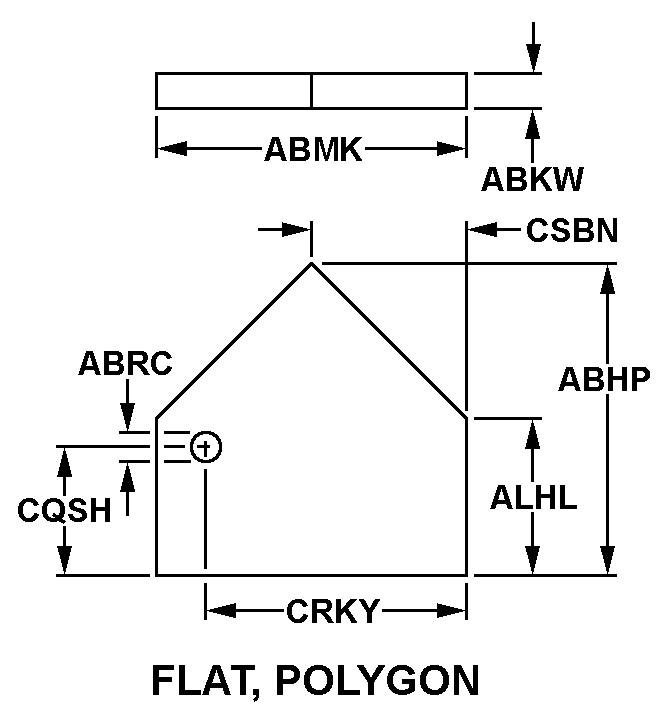

| STYLE DESIGNATOR | K34 FLAT, POLYGON |
| OVERALL LENGTH | 0.562 INCHES NOMINAL |
| OVERALL HEIGHT | 0.010 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.156 INCHES NOMINAL |
| SIDE LENGTH | 0.312 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.156 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.156 INCHES NOMINAL |
| CORNER CUT WIDTH | 0.438 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, PHENOLIC, MIL-P-15047, TYPE NPG |
| SPECIAL FEATURES | SECOND HOLE 0.156 IN. DIA LOCATED 0.156 IN. FROM OTHER SIDE |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 8614053 |
Restrictions/Controls & Freight Information | NSN 5970-00-073-6540
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
