NSN 5970-00-005-3894 12984670, 1298-4670, 00-005-3894
Product Details | BEAD INSULATOR
5970-00-005-3894 An insulator specifically designed to be used as a spacer in, or in conjunction with, such items as coaxial cables, transmission lines, brush shunts, test leads, high voltage lines and the like. Has an axial hole through which the wire passes and the length of which is considerably more than 25 percent of the largest diameter perpendicular to the hole. The external shapes may be variations of cylindrical and spherical shapes.
Part Alternates: 12984670, 1298-4670, 5970-00-005-3894, 00-005-3894, 5970000053894, 000053894
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JUN 1972 | 00-005-3894 | 18299 ( INSULATOR, BEAD ) |
Drawings & Photos | NSN 5970-00-005-3894
Cross Reference | NSN 5970-00-005-3894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1298-4670 | 08241 | LOCKHEED MARTIN CORP LOCKHEED MARTIN MISSION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-005-3894
Technical Data | NSN 5970-00-005-3894
| Characteristic | Specifications |
|---|---|

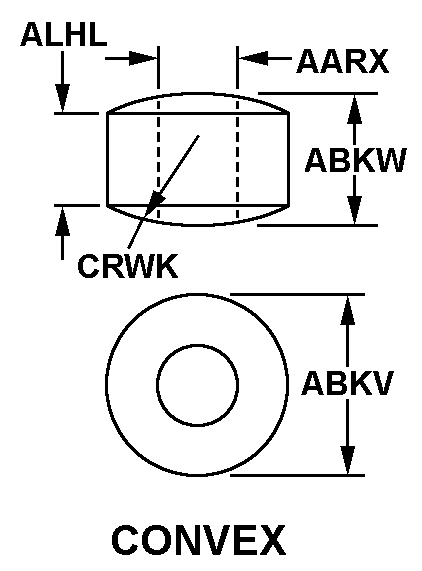

| STYLE DESIGNATOR | A3 CONVEX |
| INSIDE DIAMETER | 0.050 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.122 INCHES NOMINAL |
| OVERALL HEIGHT | 0.120 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL GLASS |
| MANUFACTURERS CODE | 08241 |
| DESIGN CONTROL REFERENCE | 1298-4670 |
Restrictions/Controls & Freight Information | NSN 5970-00-005-3894
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
