NSN 5970-00-003-8566 HL82671, HL8267-1, 00-003-8566
Product Details | WASHER INSULATOR

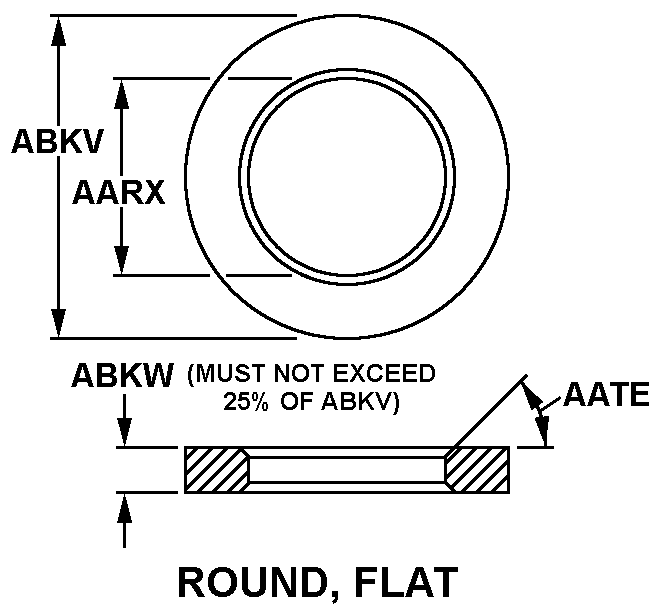

5970-00-003-8566 An insulator that is essentially thin and flat, with one through hole centrally located. The general shape may vary by the addition of features such as beveled edges, indented surfaces, through hole keys, and/or peripheral flats. The thickness measured between the two parallel bearing surfaces must not exceed 25 percent of the outside diameter or the shortest distance between peripheral flats. The thickness measured between the two parallel bearing surfaces must not exceed 25 percent of the outside diameter or the shortest distance between peripheral flats. Excludes items with more than one hole. See also INSULATOR, DISK; INSULATOR, BEAD; INSULATOR, BUSHING; and INSULATOR, PLATE
Part Alternates: HL82671, HL8267-1, 5970-00-003-8566, 00-003-8566, 5970000038566, 000038566
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 MAY 1972 | 00-003-8566 | 18294 ( INSULATOR, WASHER ) |
Drawings & Photos | NSN 5970-00-003-8566
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-003-8566
Technical Data | NSN 5970-00-003-8566
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | Q2 ROUND, FLAT |
| INSIDE DIAMETER | 0.166 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 100.0 |
| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.150 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, ACETAL, L-P-392 |
| SPECIAL FEATURES | SAME AS STYLE Q2,EXCEPT ONLY ONE SIDECOUNTERSUNK AND EDGES ROUNDED WITH 0.050 IN. MIN,0.070 IN. MAX RADIUS |
| MANUFACTURERS CODE | 86831 |
| DESIGN CONTROL REFERENCE | HL8267-1 |
Restrictions/Controls & Freight Information | NSN 5970-00-003-8566
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
