NSN 5965-01-540-3002 M32015/1-3, M3201513, MIL-DTL-32015/1
Product Details | DYNAMIC MICROPHONE
5965-01-540-3002 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: M32015/1-3, M3201513, MIL-DTL-32015/1, MILDTL320151, 5965-01-540-3002, 01-540-3002, 5965015403002, 015403002
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 MAY 2006 | 01-540-3002 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-01-540-3002
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-01-540-3002
Related Products | NSN 5965-01-540-3002
Technical Data | NSN 5965-01-540-3002
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 100.0 TO 1000.0 |
| IMPEDANCE RATING | 100.0 OHMS NOMINAL |
| OUTPUT SENSITIVITY RATING IN DECIBELS | 104.0 |
| OPERATING DC VOLTAGE IN VOLTS | 27.5 |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| ELECTRICAL CONNECTION TYPE | CONNECTOR RECEPTACLE |

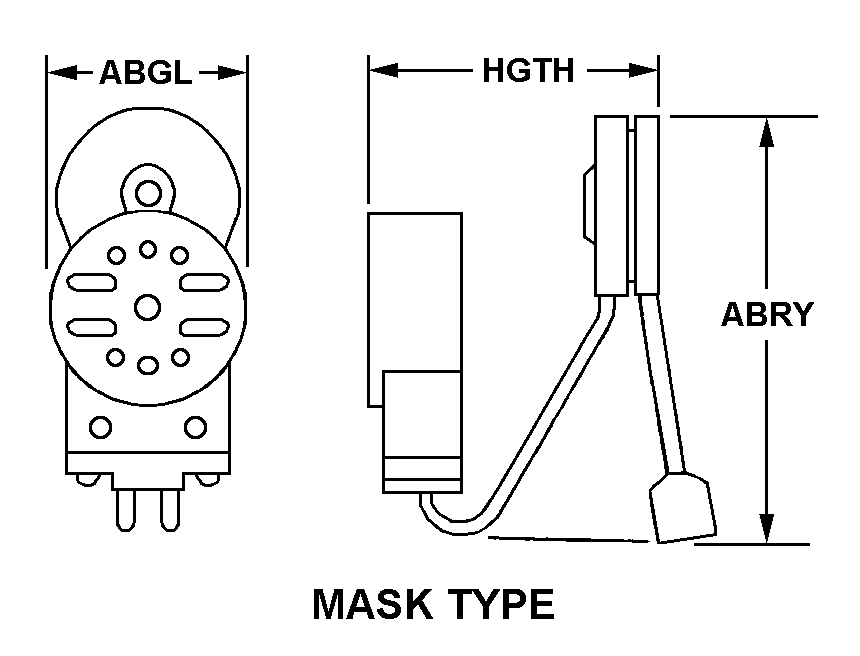

| BODY STYLE | 11 MASK TYPE |
| WIDTH | 0.680 INCHES MAXIMUM |
| LENGTH | 2.200 INCHES MAXIMUM |
| HEIGHT | 0.855 INCHES MAXIMUM |
| SPECIAL FEATURES | COMPONENTS: 1 MICROPHONE ELEMENT; 1 SM-B-883830 BOOM ASSEMBLY; 1 M22442/36-1 6 INCH CABLE ASSMBLY; SUPPLIED WITH A WIND SCREEN FIRMLY ATTACHED; BLACK, SEMIGLOSS, LUSTERLESS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | MICROPHONE, LINEAR, BOOM TYPE M-177/AIC |
| III END ITEM IDENTIFICATION | FOR BOOM MOUNT USE ON NAVY FIXED- AND ROTARY- WING HELMETS; AIC-14 INTERCOMMUNICATION SYSTEM, CONTROL BOX C-2645D |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-32015/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M32015/1-3 |
Restrictions/Controls & Freight Information | NSN 5965-01-540-3002
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-01-540-3002
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
