NSN 5965-01-539-4841 ER-68 , ER69W, ER-69W
Product Details | LOUDSPEAKER-MICROPHONE
5965-01-539-4841 An item consisting of a loudspeaker and a microphone housed in a common case. It may or may not include electronic circuitry to control its operation. Transmit-receive switching may be controlled by automatic, manual or remote operation. For a loudspeaker used as a microphone, see LOUDSPEAKER, (as modified).
Part Alternates: ER-68 , ER69W, ER-69W , ER68, 5965-01-539-4841, 01-539-4841, 5965015394841, 015394841
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 2006 | 01-539-4841 | 00164 ( LOUDSPEAKER-MICROPHONE ) |

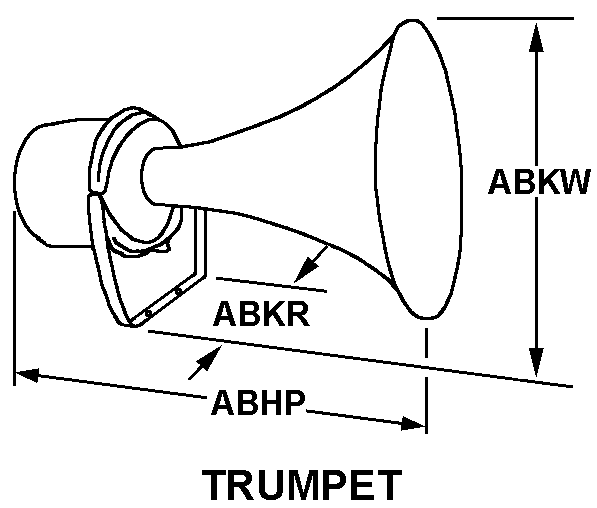

Drawings & Photos | NSN 5965-01-539-4841
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-01-539-4841
Technical Data | NSN 5965-01-539-4841
| Characteristic | Specifications |
|---|---|
| POWER RATING | 45.00 WATTS PEAK |
| POWER SOURCE | D BATTERY |
| BATTERY QUANTITY | 10 |
| STYLE DESIGNATOR | 10 TRUMPET |
| OVERALL LENGTH | 19.880 INCHES NOMINAL |
| OVERALL HEIGHT | 13.780 INCHES NOMINAL |
| USAGE DESIGN | INDOOR AND OUTDOOR |
| INSTALLATION DESIGN | PORTABLE |
| SPECIAL FEATURES | SHOULDER MICROPHONE W/WHISTLE FUNCTION; AUX INPUT JACK; 12 VDC; BATTERY CONSUMPTION METER; HALF MILE RANGE; OFF WHITE COLOR; ON/OFF SWITCH; VOLUME CONTROL; 2 HR BATTERY LIFE: WHISTLE; 20 HR BATTERY LIFE: LOUDSPEAKER |
Restrictions/Controls & Freight Information | NSN 5965-01-539-4841
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
