NSN 5965-01-499-5482 CONTROL25, 01-499-5482, 014995482
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-01-499-5482 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: CONTROL25, 5965-01-499-5482, 01-499-5482, 5965014995482, 014995482
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUL 2002 | 01-499-5482 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-01-499-5482
Demand History | NSN 5965-01-499-5482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-01-499-5482 | 2018-08-228 | 2 | DIBBS |
| 5965-01-499-5482 | 2011-11-305 | 1 | CA |
Cross Reference | NSN 5965-01-499-5482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CONTROL25 | 90555 | JBL, INC DBA JBL PROFESSIONAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-01-499-5482
Related Products | NSN 5965-01-499-5482
Technical Data | NSN 5965-01-499-5482
| Characteristic | Specifications |
|---|---|

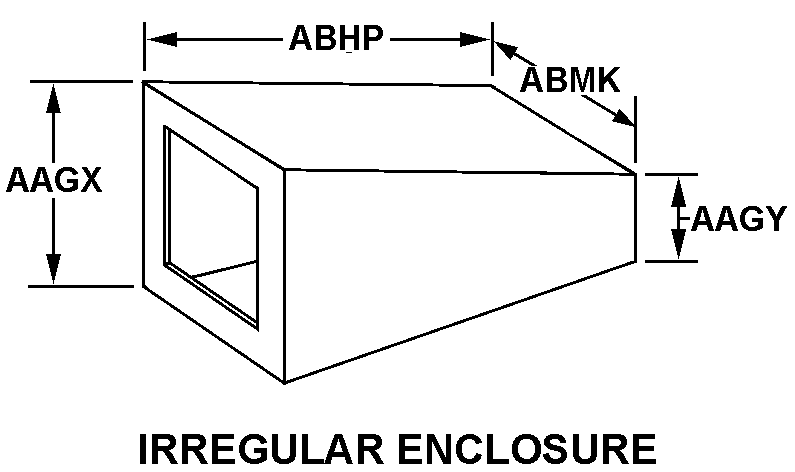

| STYLE DESIGNATOR | 32 IRREGULAR ENCLOSURE |
| LARGEST END WIDTH | 9.300 INCHES NOMINAL |
| SMALLEST END WIDTH | ANY ACCEPTABLE |
| OVERALL LENGTH | 5.800 INCHES NOMINAL |
| OVERALL WIDTH | 7.400 INCHES NOMINAL |
| TRANSDUCER TYPE | CONE |
| TRANSDUCER DIAMETER | 5.250 INCHES NOMINAL |
| TRANSDUCER LENGTH | ANY ACCEPTABLE |
| TRANSDUCER WIDTH | ANY ACCEPTABLE |
| USAGE DESIGN | INDOOR AND OUTDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| TERMINAL TYPE | CONNECTOR, PLUG |
| SPECIAL FEATURES | SPRING TERMINALS, ACCEPT BANANA PLUGS; 80HZ/16KHZ FREQUENCY RANGE; 150 WATTS; HIGH IMPACT POLYSTYRENE ENCLOSURE MATERIAL; WEATHER RESISTANT ENCLOSURE AND TRANSDUCER; 90 X 90 DEGREE HIGH FREQUENCY HORN |
Restrictions/Controls & Freight Information | NSN 5965-01-499-5482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062420 | LOUDSPEAKER/SPEAKER W/HORN |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | DF | U.S. Army Tank Automotive Command Warren, MI 48090 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-01-499-5482
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
