NSN 5965-01-480-9229 115TLM, 01-480-9229, 014809229
Product Details | LOUDSPEAKER-AMPLIFIER
5965-01-480-9229 An item having the dual functions of a LOUDSPEAKER (as modified) and an AMPLIFIER, AUDIO FREQUENCY. May include volume control, on/off switch, connecting facilities, mounting hardware and/or an enclosure.
Part Alternates: 115TLM, 5965-01-480-9229, 01-480-9229, 5965014809229, 014809229
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 DEC 2000 | 01-480-9229 | 52110 ( LOUDSPEAKER-AMPLIFIER ) |
Drawings & Photos | NSN 5965-01-480-9229
Cross Reference | NSN 5965-01-480-9229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115TLM | 60884 | PEAVEY ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-01-480-9229
Technical Data | NSN 5965-01-480-9229
| Characteristic | Specifications |
|---|---|
| POWER RATING | 100.00 WATTS NORMAL AND 200.00 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 8.0 MICROPHONE NOMINAL |

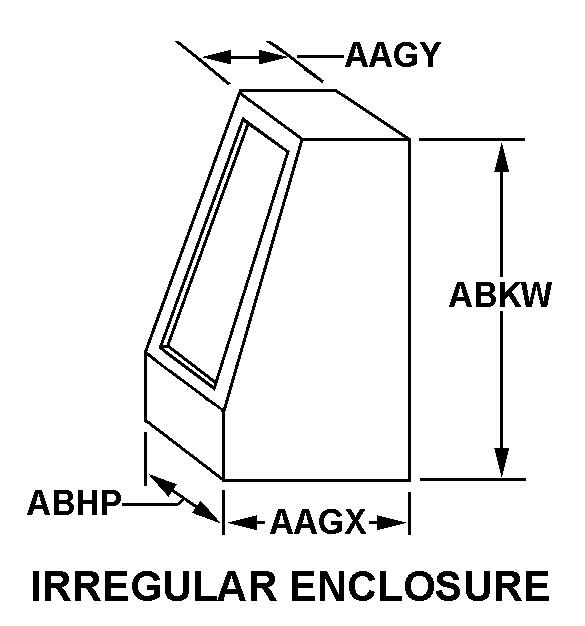

| STYLE DESIGNATOR | 33 IRREGULAR ENCLOSURE |
| LARGEST END WIDTH | 18.875 INCHES NOMINAL |
| OVERALL LENGTH | 25.000 INCHES NOMINAL |
| OVERALL HEIGHT | 16.000 INCHES NOMINAL |
| INSTALLATION DESIGN | PORTABLE |
| SPECIAL FEATURES | ENCLOSURE 115 TLM; LOW FREQUENCY LIMIT (M 3 DB POINT) 75 HZ; USEABLE LOW FREQUENCY LIMIT (M 10 DB POINT) 55 HZ; MAX SOUND PRESSURE LEVEL 116 DB; BOX TUNING FREQUENCY 85 HX; CROSS FREQUENCY 2.2 KHZ; CROSSOVER SLOPE 12 DB OCTAVE HIGH AND LOW PASS; IMPEDANCE MIN 5.1 OHMS; INPUT CONNECTIONS TWO 1/4 INCH FULL-RANGE CONNECTORS; ENCLOSURE MATERIALS AND FINISH DURABLE BLACK CARPET; MOUNTING SA-1 STAND ADAPTOR; SHIPPING WEIGHT 57 LBS; FREQUENCY RESPONSE P75.0 HZ/P17.0 KHZ |
| III UNPACKAGED UNIT WEIGHT | 50.000 POUNDS |
Restrictions/Controls & Freight Information | NSN 5965-01-480-9229
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
