NSN 5965-01-426-3225 SPC40RP, SPC-40RP, 01-426-3225
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-01-426-3225 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: SPC40RP, SPC-40RP, 5965-01-426-3225, 01-426-3225, 5965014263225, 014263225
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAR 1996 | 01-426-3225 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-01-426-3225
Demand History | NSN 5965-01-426-3225
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-01-426-3225 | 2008-06-168 | 3 | US |
Cross Reference | NSN 5965-01-426-3225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SPC-40RP | 53604 | COMPONENTS SPECIALTIES INC SPECO/EMCO/CSI DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-01-426-3225
Related Products | NSN 5965-01-426-3225
Technical Data | NSN 5965-01-426-3225
| Characteristic | Specifications |
|---|---|
| POWER RATING | 40.00 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 8.0 VOICE COIL NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 15000.0 |

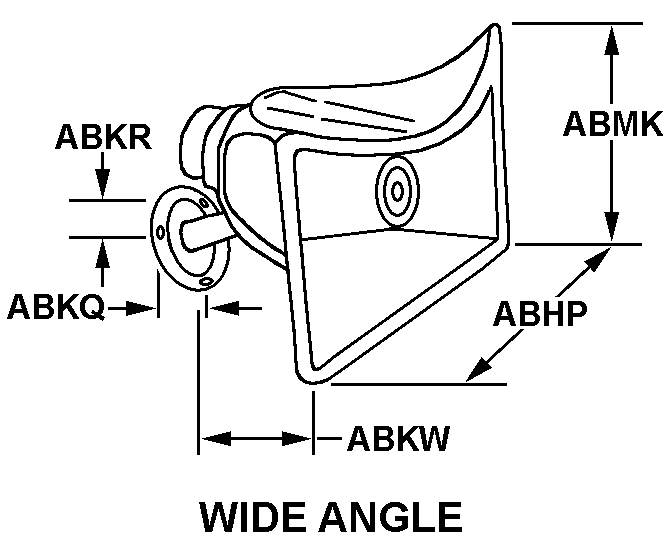

| STYLE DESIGNATOR | 20 WIDE ANGLE |
| OVERALL LENGTH | 11.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.165 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 9.000 INCHES NOMINAL |
| OVERALL WIDTH | 6.500 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| TRANSDUCER TYPE | CONE |
| TRANSDUCER DIAMETER | 1.0 INCHES NOMINAL |
| USAGE DESIGN | OUTDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 3 |
| SPECIAL FEATURES | 120 DB/1W/1M SENSITIVITY; UNIVERSAL ALL POSITION MOUNTING BRACKET AND STAINLESS STEEL HARDWARE INCLUDED; COMPLETELY WEATHERPROOF PA SPEAKER |
| III END ITEM IDENTIFICATION | RIGID HULL INFLATABLE BOAT (RHIB) |
| MANUFACTURERS CODE | 53604 |
| DESIGN CONTROL REFERENCE | SPC-40RP |
Restrictions/Controls & Freight Information | NSN 5965-01-426-3225
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5965-01-426-3225
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
