NSN 5965-01-083-2403 01-083-2403, 010832403
Product Details | DYNAMIC MICROPHONE
5965-01-083-2403 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: 5965-01-083-2403, 01-083-2403, 5965010832403, 010832403
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-083-2403 | 00362 ( MICROPHONE, DYNAMIC ) |

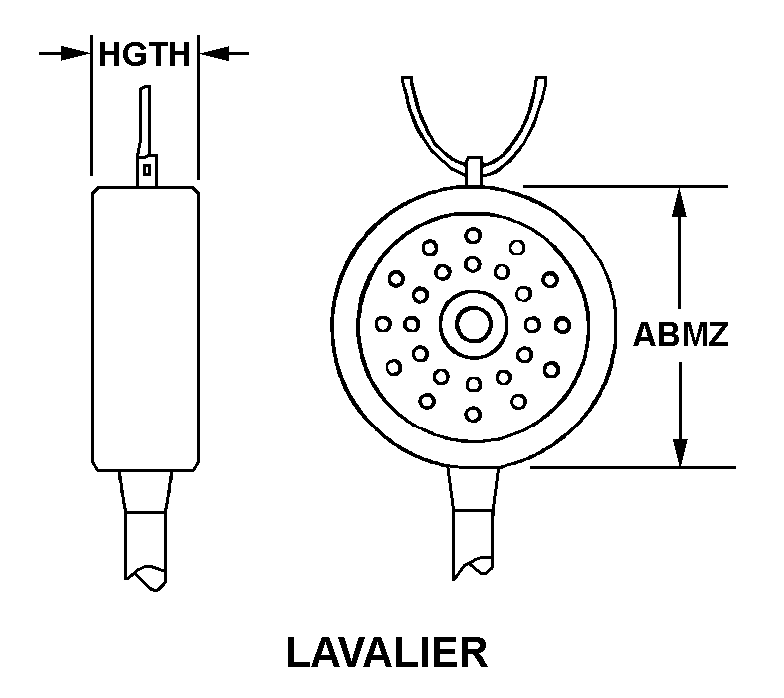

Drawings & Photos | NSN 5965-01-083-2403
Demand History | NSN 5965-01-083-2403
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-01-083-2403 | 2008-06-173 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-01-083-2403
Technical Data | NSN 5965-01-083-2403
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 90.0 TO 10000.0 |
| OUTPUT SENSITIVITY RATING IN DECIBELS | -61.0 |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | OMNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| EXTENDED CABLE LENGTH | 30.0 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 2 |
| BODY STYLE | 22 LAVALIER |
| DIAMETER | 0.938 INCHES NOMINAL |
| HEIGHT | 2.625 INCHES NOMINAL |
| SPECIAL FEATURES | INCLUDES NECK CORD ASSEMBLY,TIE CLASP ASSEMBLY,BELT CLIP,ZIPPER POUCH |
Restrictions/Controls & Freight Information | NSN 5965-01-083-2403
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
