NSN 5965-01-056-7225 M182392, M18239-2, H-87B/U
Product Details | EARPHONE
5965-01-056-7225 An item which converts electrical current variations into sound waves and which is designed to be placed against the ear or against the opening of the auditory canal. For one or two earphones mounted on a headband, see HEADSET, ELECTRICAL.
Part Alternates: M182392, M18239-2, H-87B/U, H-87B/U TYPE 2, H87BU, H87BUTYPE2, MILDTL18239, MIL-DTL-18239, MILE18239, MIL-E-18239, 10301A, 1251406914, 12-514069-14, 126C500, 76A3242, 992, 9928125, 992-8125, 5965-01-056-7225, 01-056-7225, 5965010567225, 010567225
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 FEB 1978 | 01-056-7225 | 00132 ( EARPHONE ) |

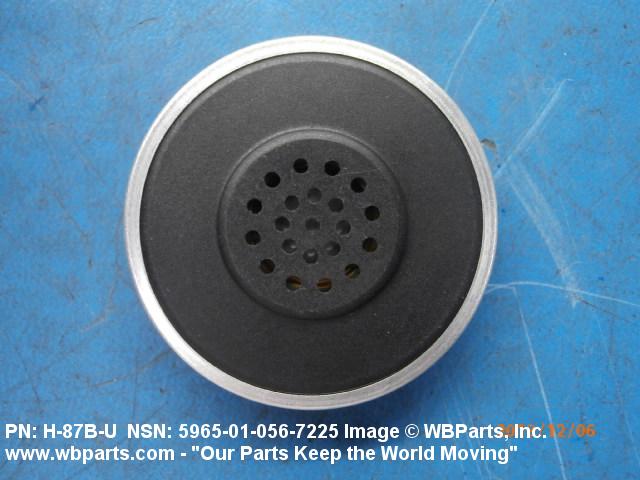

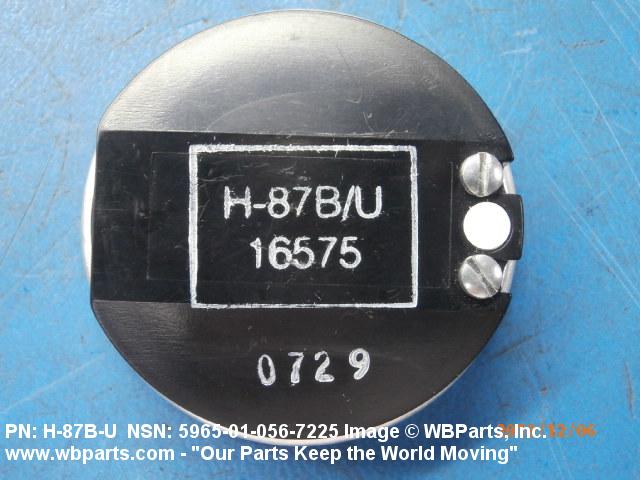

Drawings & Photos | NSN 5965-01-056-7225
Demand History | NSN 5965-01-056-7225
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-01-056-7225 | 2024-09-247 | 10 | US |
| 5965-01-056-7225 | 2024-07-212 | 20 | United States |
| M182392 | 2024-05-123 | 20 | US |
| 5965-01-056-7225 | 2024-03-68 | 1 | US |
| 5965-01-056-7225 | 2023-04-117 | 1 | Saudi Arabia |
| H87BU | 2021-02-53 | 3 | US |
| 5965-01-056-7225 | 2020-11-317 | 1983 | US |
| 5965-01-056-7225 | 2020-11-316 | 1983 | DIBBS |
| 5965-01-056-7225 | 2020-04-121 | 1 | DIBBS-RFPs |
| 5965-01-056-7225 | 2020-03-79 | 5000 | DIBBS |
| 5965-01-056-7225 | 2020-03-62 | 5000 | DIBBS |
| 5965-01-056-7225 | 2019-11-316 | 2 | United States |
| 5965-01-056-7225 | 2019-11-316 | 2 | United States |
| 5965-01-056-7225 | 2019-09-253 | 1 | DIBBS-RFPs |
| 5965-01-056-7225 | 2019-09-251 | 1908 | DIBBS |
| 5965-01-056-7225 | 2019-05-122 | 2324 | DIBBS |
| 5965-01-056-7225 | 2019-04-101 | 650 | DIBBS |
| 5965-01-056-7225 | 2019-03-80 | 1426 | DIBBS |
| H87BUTYPE2 | 2019-03-65 | 1 | United States |
| 5965-01-056-7225 | 2018-11-312 | 1890 | DIBBS |
| 5965-01-056-7225 | 2018-07-207 | 1691 | DIBBS |
| 5965-01-056-7225 | 2018-02-53 | 1955 | DIBBS |
| 5965-01-056-7225 | 2017-12-362 | 1941 | DIBBS |
| M182392 | 2017-11-332 | 2 | US |
| 5965-01-056-7225 | 2017-10-274 | 1367 | DIBBS |
| 5965-01-056-7225 | 2017-07-208 | 1415 | DIBBS |
| 5965-01-056-7225 | 2017-05-131 | 1312 | DIBBS |
| 5965-01-056-7225 | 2016-12-343 | 2000 | DIBBS |
| 5965-01-056-7225 | 2016-10-286 | 1123 | DIBBS |
| 5965-01-056-7225 | 2016-08-229 | 1235 | DIBBS |
| 5965-01-056-7225 | 2016-04-112 | 1189 | DIBBS |
| H87BU | 2016-02-52 | 20 | Malaysia |
| 5965-01-056-7225 | 2016-01-28 | 1199 | DIBBS |
| 5965-01-056-7225 | 2015-08-235 | 1289 | DIBBS |
| 5965-01-056-7225 | 2015-06-152 | 1487 | DIBBS |
| 5965-01-056-7225 | 2014-12-343 | 1279 | DIBBS |
| M182392 | 2014-11-323 | 2 | United States |
| 5965-01-056-7225 | 2014-09-272 | 1358 | DIBBS |
| 5965-01-056-7225 | 2014-08-215 | 1358 | DIBBS |
| 5965-01-056-7225 | 2014-06-172 | 3707 | DIBBS |
| 5965-01-056-7225 | 2014-06-152 | 3707 | DIBBS |
| 5965-01-056-7225 | 2014-04-117 | 4120 | DIBBS |
| 5965-01-056-7225 | 2014-01-09 | 1 | US |
| 5965-01-056-7225 | 2013-10-275 | 1408 | DIBBS |
| 5965-01-056-7225 | 2013-06-178 | 1013 | DIBBS |
| 5965-01-056-7225 | 2013-02-52 | 1928 | DIBBS |
| 5965-01-056-7225 | 2011-10-300 | 618 | US |
| 5965-01-056-7225 | 2011-10-292 | 618 | United States |
| 5965-01-056-7225 | 2011-05-147 | 2586 | DIBBS |
| 5965-01-056-7225 | 2010-10-286 | 1847 | DIBBS |
| 5965-01-056-7225 | 2009-07-208 | 865 | DIBBS |
| 5965-01-056-7225 | 2009-04-119 | 4 | United States |
| 5965-01-056-7225 | 2009-04-99 | 1360 | DIBBS |
| 5965-01-056-7225 | 2008-12-354 | 1784 | DIBBS |
| 5965-01-056-7225 | 2008-11-318 | 903 | DIBBS |
| 5965-01-056-7225 | 2008-01-07 | 4 | US |
| 5965-01-056-7225 | 2007-12-346 | 1000 | DIBBS |
Cross Reference | NSN 5965-01-056-7225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10301A | 18068 | ASTROCOM ELECTRONICS, INC. |
| 12-514069-14 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 126C500 | 78711 | TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION |
| 76A3242 | 97427 | GENTEX CORPORATION |
| 992 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 992-8125 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| H-87B/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| H-87B/U TYPE 2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| H-87B/U,TYPE2 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| M18239-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-18239 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-E-18239 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-01-056-7225
Related Products | NSN 5965-01-056-7225
Technical Data | NSN 5965-01-056-7225
| Characteristic | Specifications |
|---|---|
| EARPHONE ELEMENT TYPE | DYNAMIC |
| EARPHONE CAP MATERIAL | METAL |
| EARPHONE SHELL MATERIAL | METAL |

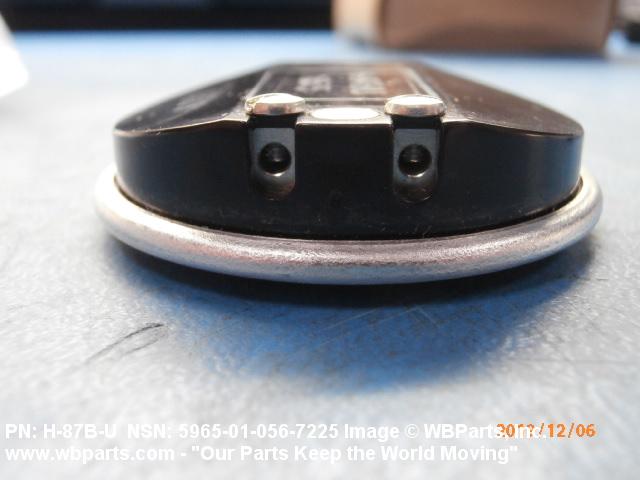

| TERMINAL TYPE | SETSCREW |
| TERMINAL QUANTITY | 2 |
| TERMINAL LOCATION | EXTERNAL |
| EARPHONE MOUNTING METHOD | DIAMETRICALLY OPPOSED HOLES IN OUTSIDE PERIPHERY OF CASE |
| BODY STYLE | 1 EARPHONE, CIRCULAR |

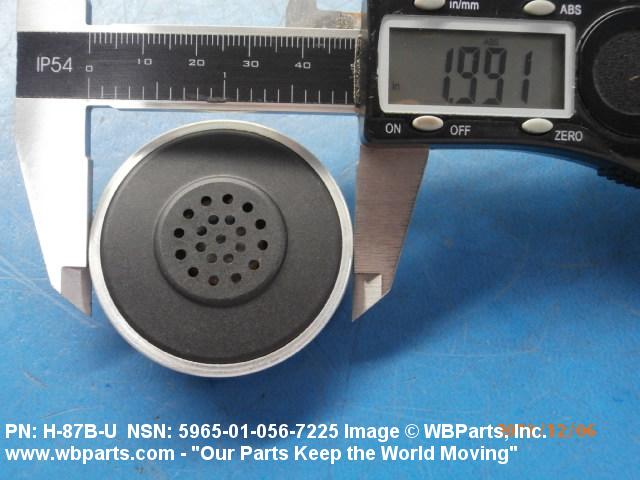

| OVERALL DIAMETER | 2.007 INCHES NOMINAL |

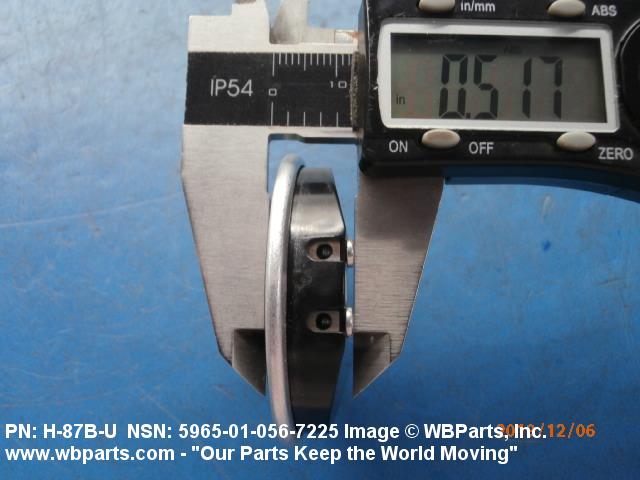

| EARPHONE OVERALL DEPTH | 0.707 INCHES NOMINAL |
| IMPEDANCE RATING IN OHMS | 15.0 NOMINAL |
| ACOUSTIC SENSITIVITY REFERENCE RATING | NOT RATED |
| MAGNETIC SHIELDING | NOT INCLUDED |
| SIGNAL INPUT TERMINAL TYPE | WIRE LEAD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-E-18239 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M18239-2 |
Restrictions/Controls & Freight Information | NSN 5965-01-056-7225
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART VIZ: SUB 8 |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-01-056-7225
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
