NSN 5965-01-013-0290 M-140/U, M140U, MC080002
Product Details | DYNAMIC MICROPHONE
5965-01-013-0290 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: M-140/U, M140U, MC080002, MC-080-002, SMC886944, SM-C-886944, 62078006, 62078-006, 985, 10543053, 12733221, 1273322-1, 51123001, 511-23-001, 519213002603, 519-213-002-603, 5965-01-013-0290, 01-013-0290, 5965010130290, 010130290
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 NOV 1975 | 01-013-0290 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-01-013-0290
Demand History | NSN 5965-01-013-0290
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 519-213-002-603 | 2024-09-255 | 152 | DIBBS |
| 985 | 2024-09-255 | 152 | DIBBS |
| MC-080-002 | 2024-09-255 | 152 | DIBBS |
| 519-213-002-603 | 2024-05-123 | 83 | DIBBS |
| 985 | 2024-05-123 | 83 | DIBBS |
| MC-080-002 | 2024-05-123 | 83 | DIBBS |
| 519-213-002-603 | 2024-04-112 | 83 | DIBBS |
| 985 | 2024-04-112 | 83 | DIBBS |
| MC-080-002 | 2024-04-112 | 83 | DIBBS |
| 519-213-002-603 | 2022-06-181 | 181 | DIBBS |
| 985 | 2022-06-181 | 181 | DIBBS |
| MC-080-002 | 2022-06-181 | 181 | DIBBS |
| 5965-01-013-0290 | 2022-05-141 | 2 | US |
| 519-213-002-603 | 2022-04-94 | 104 | DIBBS |
| 985 | 2022-04-94 | 104 | DIBBS |
| MC-080-002 | 2022-04-94 | 104 | DIBBS |
| 519-213-002-603 | 2022-03-83 | 104 | DIBBS |
| 985 | 2022-03-83 | 104 | DIBBS |
| MC-080-002 | 2022-03-83 | 104 | DIBBS |
| 519-213-002-603 | 2019-03-87 | 203 | DIBBS |
| 985 | 2019-03-87 | 203 | DIBBS |
| MC-080-002 | 2019-03-87 | 203 | DIBBS |
| 5965-01-013-0290 | 2018-05-130 | 186 | DIBBS |
| 5965-01-013-0290 | 2017-12-348 | 144 | DIBBS |
| 5965-01-013-0290 | 2016-12-355 | 164 | DIBBS |
| 5965-01-013-0290 | 2016-06-158 | 167 | DIBBS |
| 5965-01-013-0290 | 2016-02-39 | 118 | DIBBS |
| 5965-01-013-0290 | 2013-11-324 | 315 | DIBBS |
| 5965-01-013-0290 | 2013-11-309 | 315 | DIBBS |
| 5965-01-013-0290 | 2013-04-92 | 190 | DIBBS |
| 5965-01-013-0290 | 2012-12-338 | 120 | DIBBS |
| 5965-01-013-0290 | 2006-06-171 | 35 | DIBBS |
Cross Reference | NSN 5965-01-013-0290
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10543053 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 1273322-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 511-23-001 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 519-213-002-603 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 62078-006 | 12763 | DYNALEC CORPORATION |
| 985 | 55564 | D C M INDUSTRIES INC |
| M-140/U | 12763 | DYNALEC CORPORATION |
| M-140/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| MC-080-002 | 16575 | SONETRONICS INC DBA SONETRONICS |
| SM-C-886944 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-01-013-0290
Related Products | NSN 5965-01-013-0290
Technical Data | NSN 5965-01-013-0290
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 300.0 TO 4000.0 |
| IMPEDANCE SELECTION METHOD | SOLDER TYPE LEAD POSITIONING |
| IMPEDANCE RATING | 160.0 OHMS NOMINAL |
| OUTPUT SENSITIVITY RATING REFERENCE | 1 MILLIWATT PER 10 MICROBARS |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | OMNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CORD |
| ACCESSORY COMPONENTS | CONNECTOR |
| EXTENDED CABLE LENGTH | 6.0 FEET NOMINAL |
| SWITCH TYPE | PUSH |

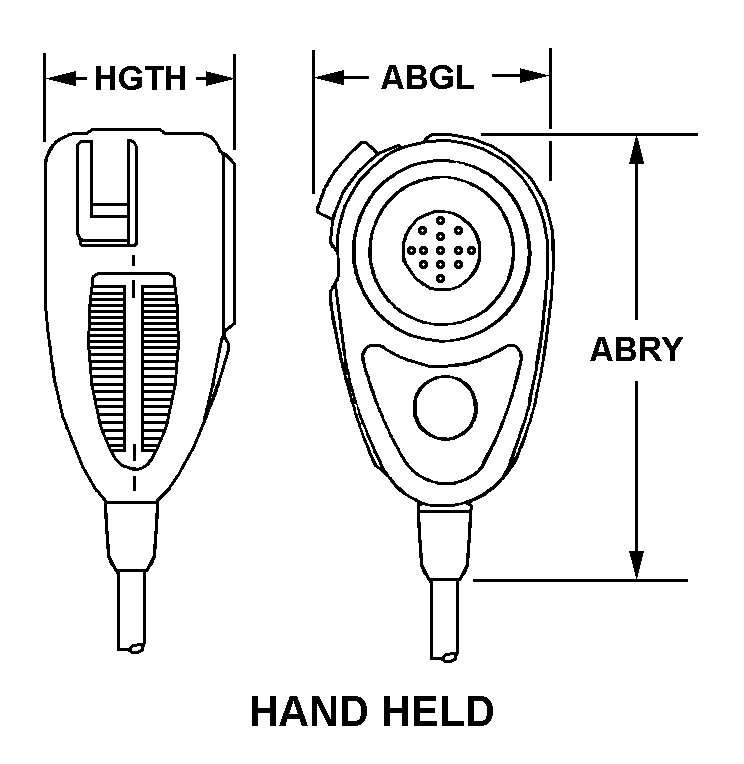

| BODY STYLE | 19 HAND HELD |
| WIDTH | 2.000 INCHES NOMINAL |
| LENGTH | 5.000 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5965-01-013-0290
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-01-013-0290
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
