NSN 5965-00-901-6202 M0DEL727, G36A17486, 727
Product Details | CERAMIC MICROPHONE
5965-00-901-6202 A microphone which depends upon the generation of an electrical charge by the deformation of a ceramic element for its operation.
Part Alternates: M0DEL727, G36A17486, 727, 215P, 5965-00-901-6202, 00-901-6202, 5965009016202, 009016202
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-901-6202 | 00360 ( MICROPHONE, CERAMIC ) |
Drawings & Photos | NSN 5965-00-901-6202
Cross Reference | NSN 5965-00-901-6202
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215P | 55870 | TEN-TEC, INC. |
| 727 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| G36A17486 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| M0DEL727 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| M0DEL727 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-901-6202
Technical Data | NSN 5965-00-901-6202
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 4000.0 |
| IMPEDANCE RATING | 250.0 KILOHMS MINIMUM |
| OUTPUT SENSITIVITY RATING IN DECIBELS | 50.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 1 VOLT PER MICROBAR |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | OMNIDIRECTIONAL |
| NOISE CANCELING FEATURE | NOT INCLUDED |
| SUPPORT STAND | INCLUDED |
| SUPPORT STAND HEIGHT | ANY ACCEPTABLE |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | THREADED BUSHING |
| MOUNTING FACILITY THREAD SIZE | 5/8-27 NPT |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CONNECTOR |
| EXTENDED CABLE LENGTH | 4.0 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 3 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 1 |
| SWITCH TYPE | TOGGLE |

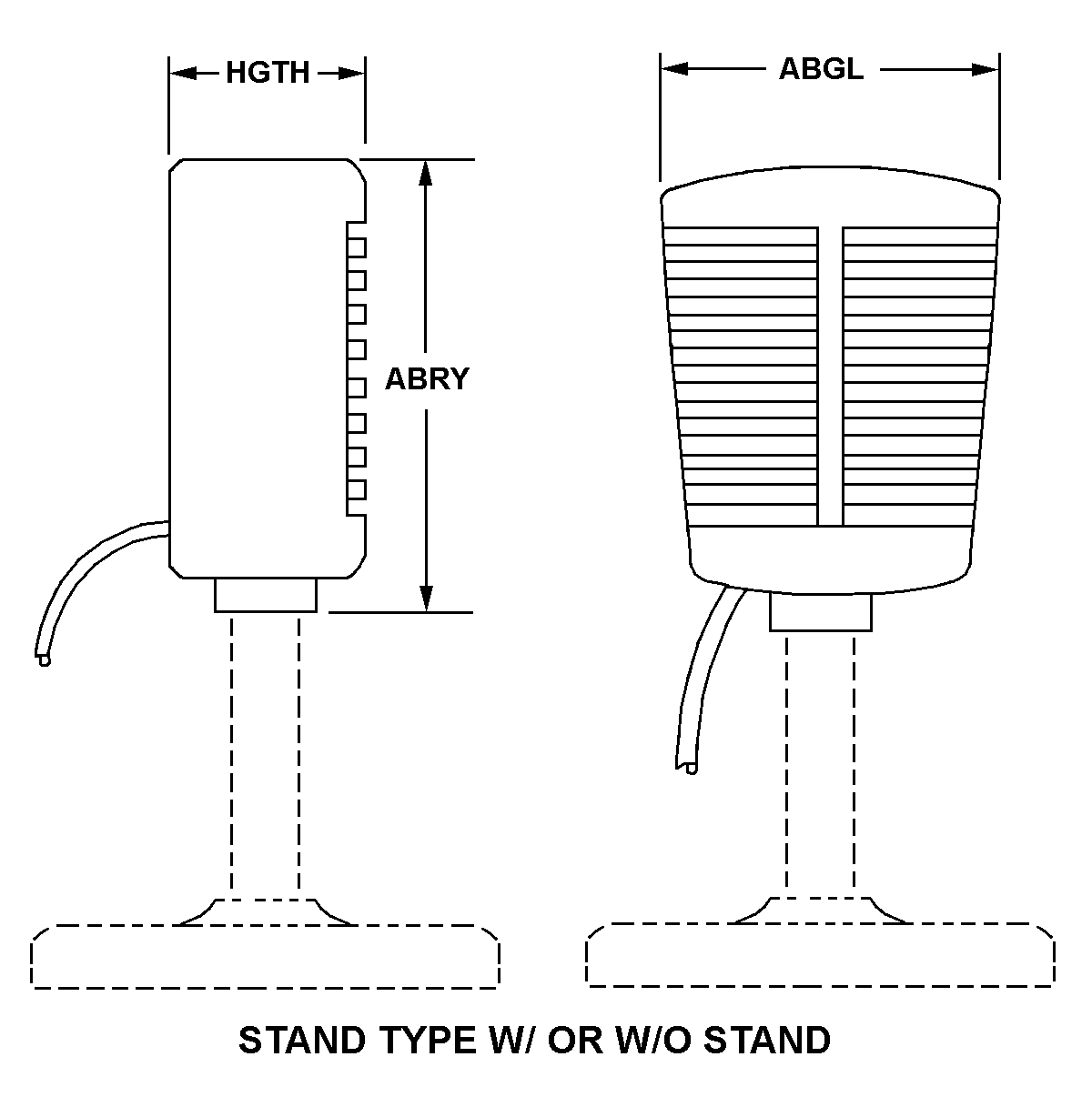

| BODY STYLE | 28 STAND TYPE W/ OR W/O STAND |
| WIDTH | 2.656 INCHES NOMINAL |
| LENGTH | 2.781 INCHES NOMINAL |
| HEIGHT | 4.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5965-00-901-6202
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
