NSN 5965-00-854-0658 M-100/AIC, M100AIC, MC101002
Product Details | DYNAMIC MICROPHONE
5965-00-854-0658 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: M-100/AIC, M100AIC, MC101002, MC-101-002, MILM26542, MIL-M-26542, MIL-M-26542/3, MILM265423, MILM27297, MIL-PRF-26542/3, MILPRF265423, 10109, 59C12795, 6823067, 682-3067, 6823068, 682-3068, M100, 5965-00-854-0658, 00-854-0658, 5965008540658, 008540658
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-854-0658 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-00-854-0658
Demand History | NSN 5965-00-854-0658
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-854-0658 | 2023-02-54 | 264 | DIBBS |
| 5965-00-854-0658 | 2021-10-286 | 434 | DIBBS |
| M100 | 2021-06-154 | 4 | KE |
| 5965-00-854-0658 | 2021-04-97 | 93 | DIBBS |
| 5965-00-854-0658 | 2015-08-237 | 1 | DIBBS-RFPs |
| 5965-00-854-0658 | 2014-09-267 | 404 | DIBBS |
| M100 | 2014-06-175 | 1 | United States |
| 5965-00-854-0658 | 2014-05-135 | 1 | PE |
| 5965-00-854-0658 | 2014-05-132 | 114 | US |
| 5965-00-854-0658 | 2014-05-127 | 1114 | DIBBS |
| 5965-00-854-0658 | 2014-05-126 | 1114 | DIBBS |
| 5965-00-854-0658 | 2014-03-65 | 789 | DIBBS |
| M100AIC | 2013-06-162 | 200 | Malaysia |
| M100AIC | 2013-03-69 | 200 | Malaysia |
| 5965-00-854-0658 | 2013-01-30 | 364 | DIBBS |
| 5965-00-854-0658 | 2013-01-08 | 250 | DIBBS |
| 5965-00-854-0658 | 2012-08-240 | 200 | Malaysia |
| 5965-00-854-0658 | 2012-03-80 | 159 | DIBBS |
| 5965-00-854-0658 | 2012-01-18 | 250 | DIBBS |
| 5965-00-854-0658 | 2011-08-215 | 175 | DIBBS |
| 5965-00-854-0658 | 2010-12-343 | 142 | DIBBS |
| 5965-00-854-0658 | 2010-11-313 | 183 | DIBBS |
| 5965-00-854-0658 | 2010-04-96 | 336 | DIBBS |
| M100AIC | 2009-06-168 | 70 | DE |
| 5965-00-854-0658 | 2008-03-79 | 481 | DIBBS |
| 5965-00-854-0658 | 2008-02-59 | 811 | DIBBS |
| 5965-00-854-0658 | 2007-10-283 | 1250 | US |
| 5965-00-854-0658 | 2007-08-218 | 878 | DIBBS |
| 5965-00-854-0658 | 2007-08-215 | 295 | DIBBS |
| 5965-00-854-0658 | 2007-08-214 | 295 | DIBBS |
| 5965-00-854-0658 | 2007-06-177 | 418 | DIBBS |
| 5965-00-854-0658 | 2006-03-80 | 100 | us |
Cross Reference | NSN 5965-00-854-0658
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10109 | 18068 | ASTROCOM ELECTRONICS, INC. |
| 59C12795 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 682-3067 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 682-3068 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| M-100/AIC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M100 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| M100AIC | 18068 | ASTROCOM ELECTRONICS, INC. |
| M100AIC | 78711 | TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION |
| MC-101-002 | 16575 | SONETRONICS INC DBA SONETRONICS |
| MIL-M-26542 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-26542/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-26542/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILM27297 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-854-0658
Related Products | NSN 5965-00-854-0658
Technical Data | NSN 5965-00-854-0658
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 6000.0 |
| IMPEDANCE RATING | 7.0 OHMS NOMINAL |
| OUTPUT SENSITIVITY RATING IN DECIBELS | 74.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 0.0002 DYNES PER SQ CENTIMETER |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | BRACKET |
| ELECTRICAL CONNECTION TYPE | CONNECTOR RECEPTACLE |
| ACCESSORY COMPONENTS | CONNECTOR AND CORD |
| CONNECTOR IDENTIFICATION | U-179A/U |
| EXTENDED CABLE LENGTH | 0.1 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 3 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 1 |

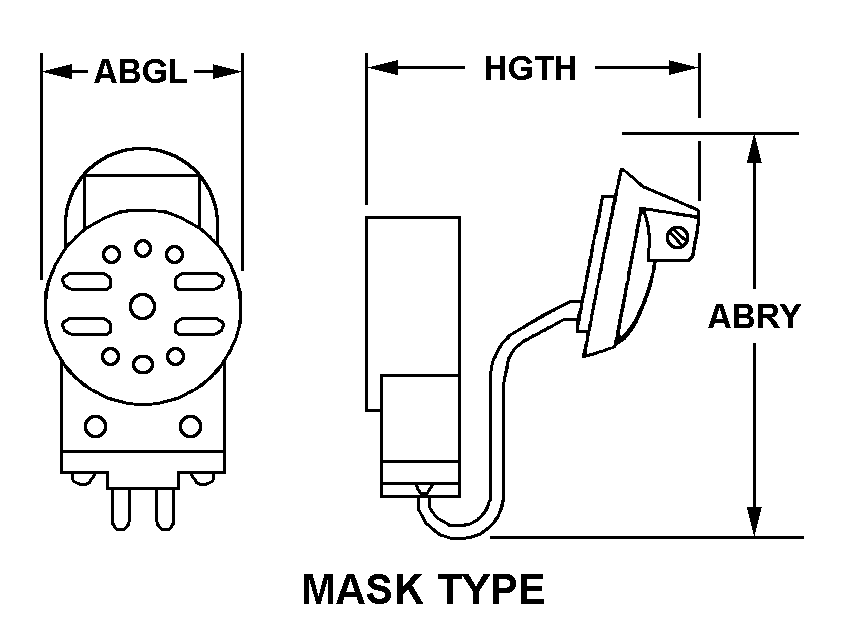

| BODY STYLE | 13 MASK TYPE |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 2.375 INCHES NOMINAL |
| HEIGHT | 1.750 INCHES NOMINAL |
| SPECIAL FEATURES | SUPPORT EQUIPMENT,B-52 AIRCRAFT; AIRCRAFT,PHANTOM F-4; AIRCRAFT,STRATOFORTRESS B-52; AIRCRAFT,HERCULES C-130; AIRCRAFT,DELTA DART F-106; AIRCRAFT CORSAIR A-7D; AIRCRAFT,THUNDERBOLT TWO,A-10; AIRCRAFT,F-16; AIRCRAFT,T-38; SUPPORT EQUIPMENT,A-7 AIRCRAFT; SUPPORT EQUIPMENT,F-111 AIRCRAFT; SUPPORT EQUIPMENT,C-135 AIRCRAFT |
| TEST DATA DOCUMENT | 81349-MIL-M-26542 SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III FUNCTIONAL DESCRIPTION | USED FOR VOICE COMMUNICATION. USED ON MBU-5/P OXYGEN MASK, WHICH IS USED WITH AN/AIC-10 AND AN/AIC-18. |
| III FSC APPLICATION DATA | HEADSETS,HANDSETS,MICROPHONES AND SPEAKERS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M-100/AIC |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-26542/3 |
Restrictions/Controls & Freight Information | NSN 5965-00-854-0658
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-854-0658
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
