NSN 5965-00-715-6158 MX-2509/AIC, MX2509AIC, 10178
Product Details | EAR CUSHION
5965-00-715-6158 An item made of soft material(s) designed to fit on an earphone shell of an electrical headset or on the muff of a hearing protector by a positive means of attachment, such as an elastic band or a clamp ring. Its purpose is to prevent external noises from reaching the ears of the user and to lessen physical discomfort occasioned by continuous use.
Part Alternates: MX-2509/AIC, MX2509AIC, 10178, 15244, 15635118, 15635-118, 158244, 3207, 320-7, 5043844, 5043-844, 533-030-001, 533030001694, 533-030-001-694, 62B21707, 5965-00-715-6158, 00-715-6158, 5965007156158, 007156158, 533030001
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-715-6158 | 36876 ( CUSHION, EAR ) |

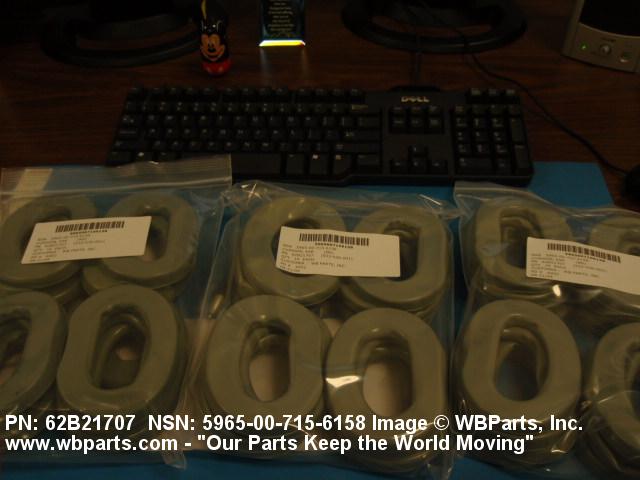

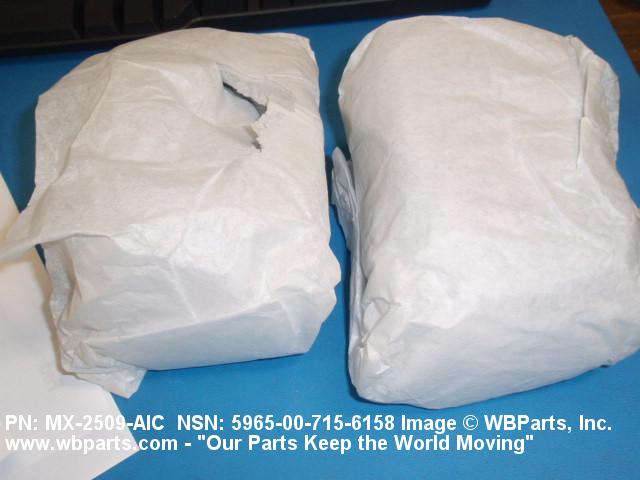

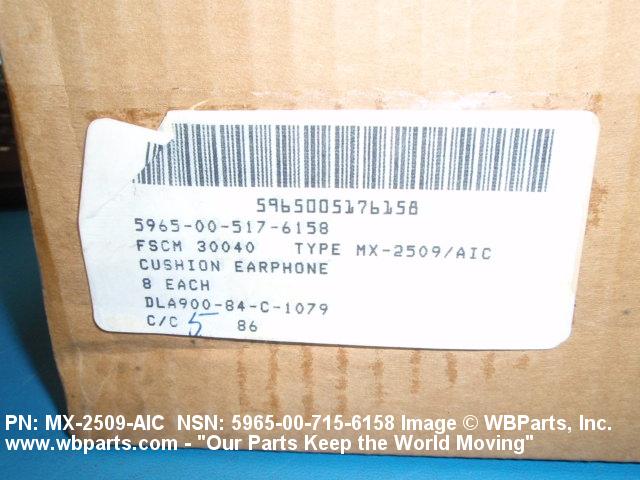

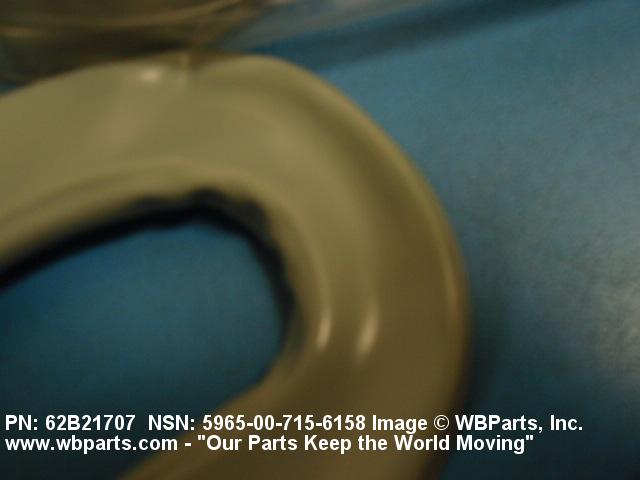

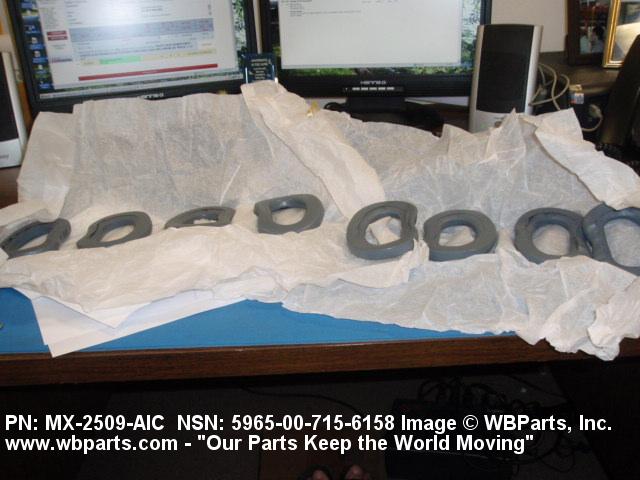

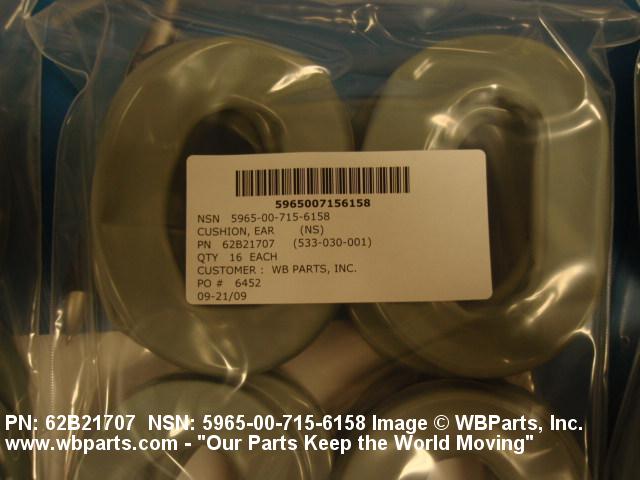

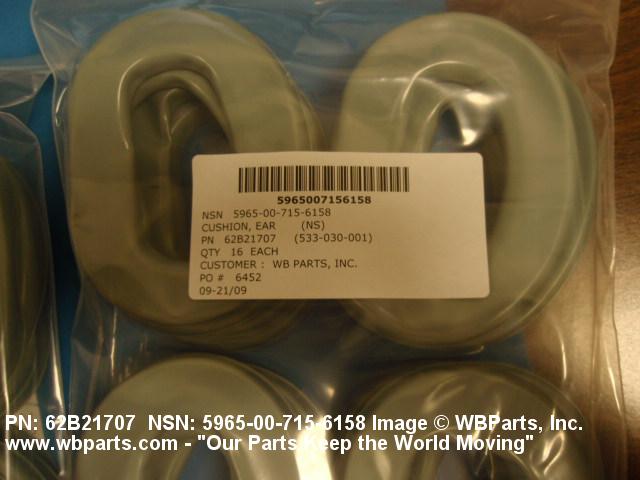

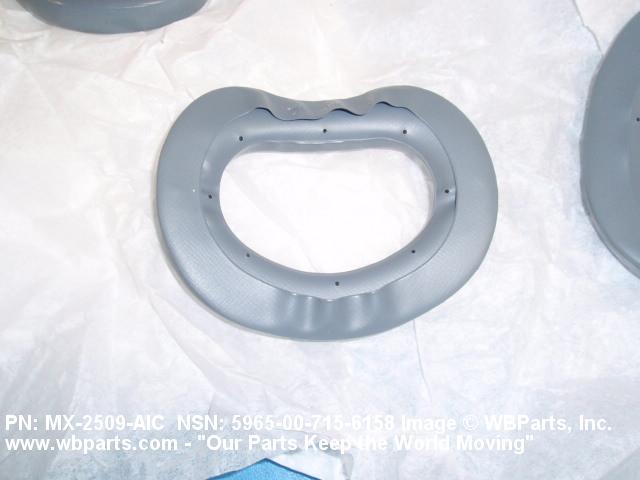

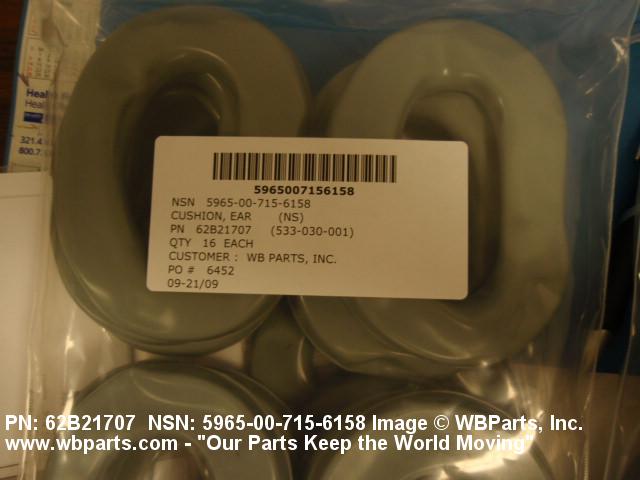

Drawings & Photos | NSN 5965-00-715-6158
Demand History | NSN 5965-00-715-6158
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 62B21707 | 2023-01-28 | 4 | IT |
| 5965-00-715-6158 | 2020-10-304 | 4 | US |
| 5965-00-715-6158 | 2020-06-164 | 2 | IT |
| 5965-00-715-6158 | 2020-02-55 | 2 | US |
| 5965-00-715-6158 | 2018-06-166 | 4 | IT |
| MX2509AIC | 2017-08-231 | 2 | IT |
| 533-030-001-694 | 2014-06-162 | 44 | US |
| 5965-00-715-6158 | 2014-06-162 | 44 | MANUAL |
| 5965-00-715-6158 | 2011-03-72 | 2 | IT |
| 5965-00-715-6158 | 2011-03-66 | 4 | IT |
| 5965-00-715-6158 | 2010-12-350 | 10 | US |
| 5965-00-715-6158 | 2010-11-328 | 3 | US |
| 5965-00-715-6158 | 2009-09-271 | 48 | United States |
| 533030001694 | 2009-09-260 | 48 | United States |
| 62B21707 | 2009-09-260 | 48 | United States |
| 533030001694 | 2009-08-237 | 48 | United States |
| 5965-00-715-6158 | 2009-05-150 | 1 | DE |
| 5965-00-715-6158 | 2009-05-150 | 1 | DE |
| 5965-00-715-6158 | 2009-04-118 | 1 | us |
| 5965-00-715-6158 | 2007-12-348 | 2 | US |
Cross Reference | NSN 5965-00-715-6158
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10178 | 18068 | ASTROCOM ELECTRONICS, INC. |
| 15244 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 15635-118 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 158244 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 320-7 | 22861 | JOYCE TELECTRONICS CORP |
| 5043-844 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 533-030-001 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 533-030-001-694 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 62B21707 | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
| 62B21707 | 99893 | ROME AIR MATERIAL AREA GRIFFISS AIR FORCE BASE |
| MX-2509/AIC | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| MX2509AIC | 18103 | LITE INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-715-6158
Technical Data | NSN 5965-00-715-6158
| Characteristic | Specifications |
|---|---|
| EARPHONE CUSHION MATERIAL | PLASTIC, POLYURETHANE FOAM |

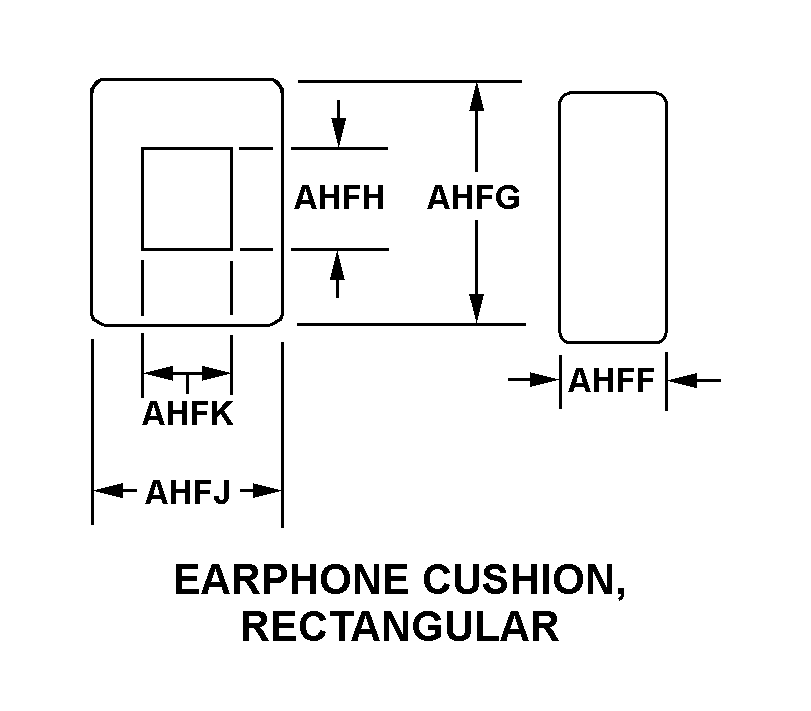

| BODY STYLE | 6 EARPHONE CUSHION, RECTANGULAR |
| EARPHONE CUSHION THICKNESS | 2.875 INCHES NOMINAL |
| EARPHONE CUSHION OUTSIDE HEIGHT | 4.625 INCHES NOMINAL |
| EARPHONE CUSHION INSIDE HEIGHT | 2.875 INCHES NOMINAL |
| EARPHONE CUSHION OUTSIDE WIDTH | 2.125 INCHES NOMINAL |
| EARPHONE CUSHION INSIDE WIDTH | 1.625 INCHES NOMINAL |
| TEST DATA DOCUMENT | 97151-62B21707 DRAWING |
Restrictions/Controls & Freight Information | NSN 5965-00-715-6158
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
