NSN 5965-00-636-2181 NP10405C6853, ICSBG4, LS-388/SIC
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-00-636-2181 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: NP10405C6853, ICSBG4, LS-388/SIC, LS388SIC, MILA20222, MIL-L-24223/2A, MILL242232A, 1275-6178.02, 1275617802, 61716201, 61716-201 , 9000S650274073TYPE1CSBG4REV1, 9000S6502-74073TYPE1CSBG4REV1, 5965-00-636-2181, 00-636-2181, 5965006362181, 006362181
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-2181 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |

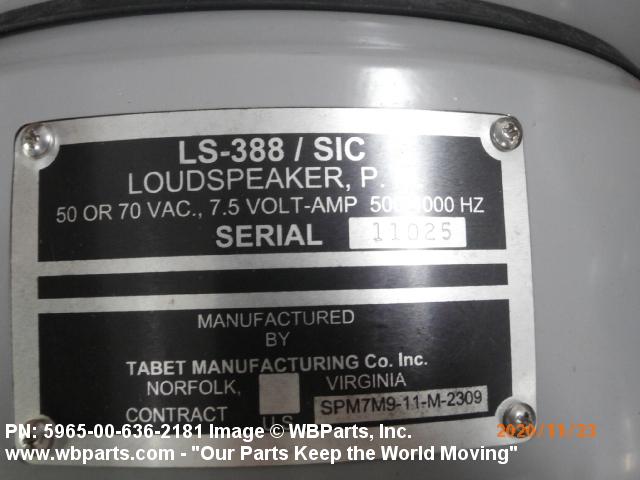

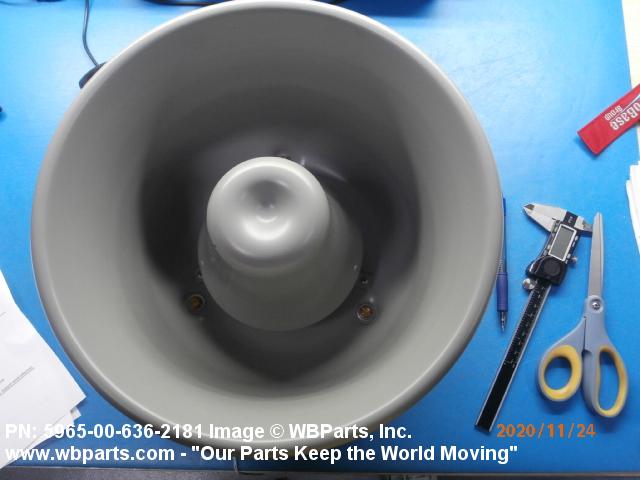

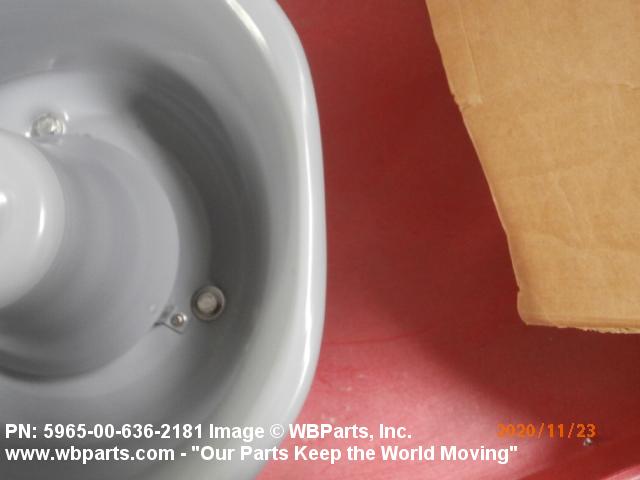

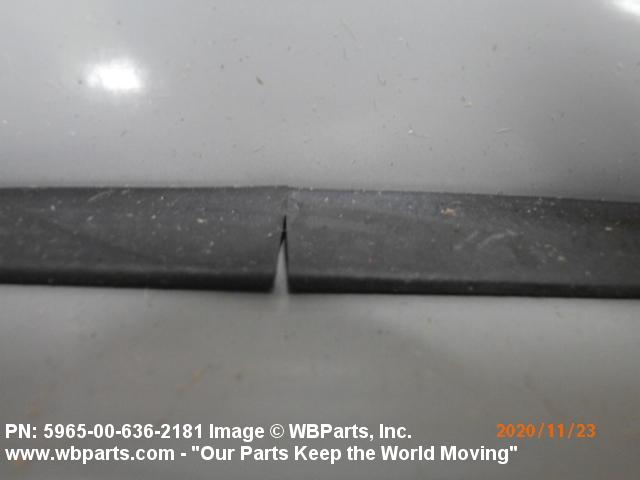

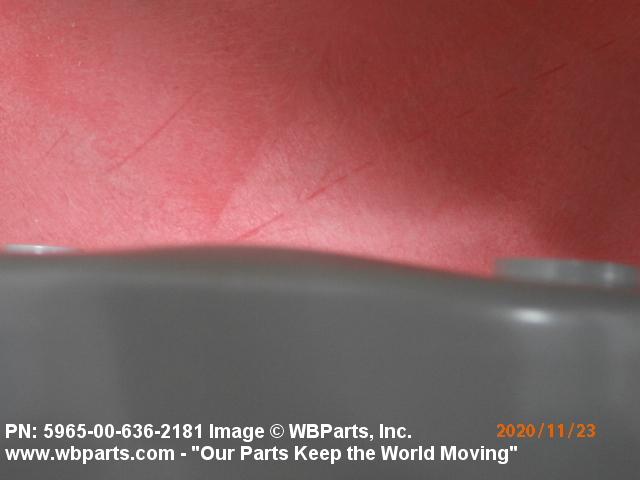

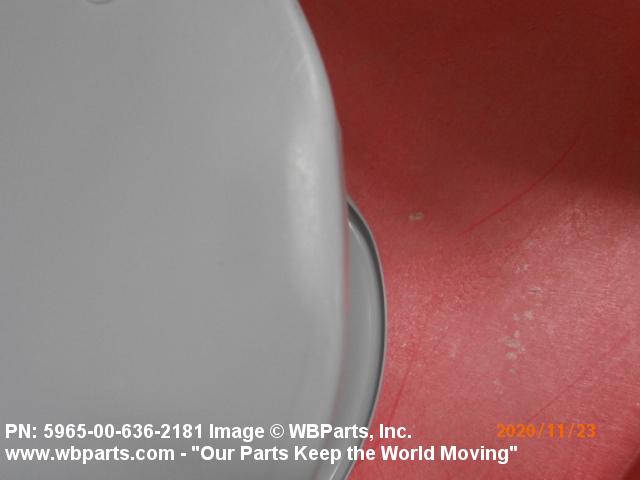

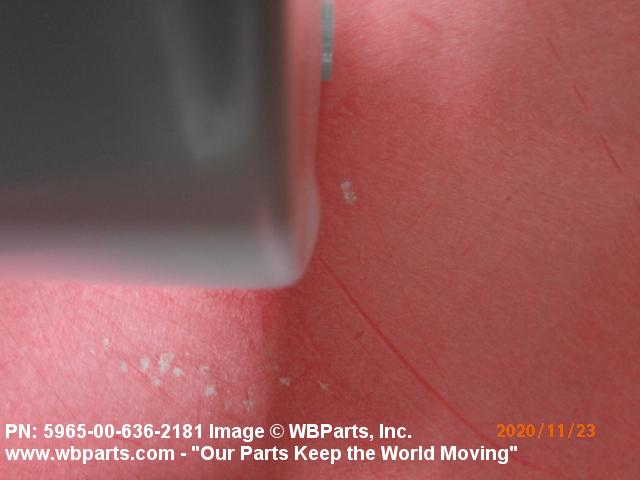

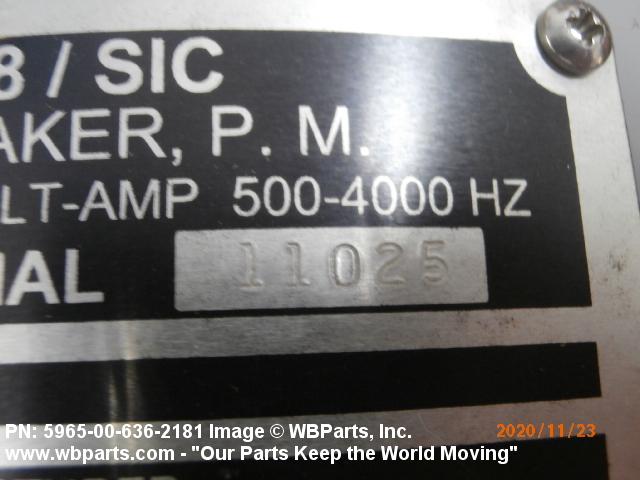

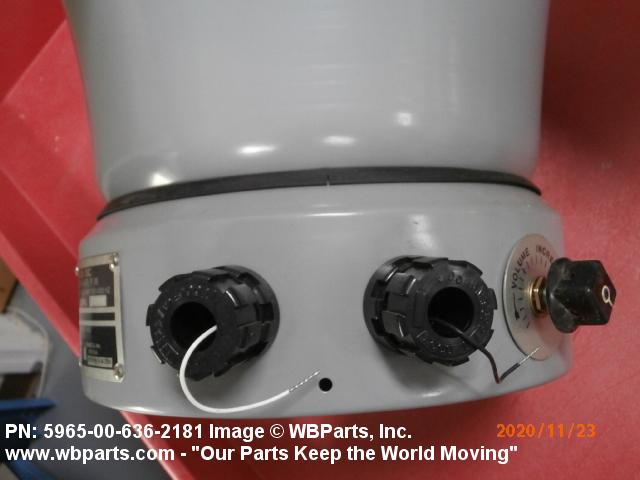

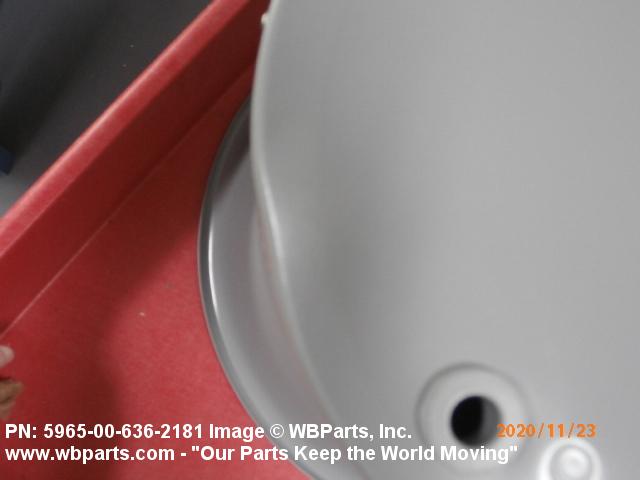

Drawings & Photos | NSN 5965-00-636-2181
Demand History | NSN 5965-00-636-2181
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-636-2181 | 2024-10-305 | 57 | DIBBS |
| 5965-00-636-2181 | 2024-07-212 | 251 | DIBBS |
| 5965-00-636-2181 | 2024-05-151 | 71 | DIBBS |
| 5965-00-636-2181 | 2023-11-316 | 49 | DIBBS |
| 5965-00-636-2181 | 2023-09-262 | 1 | GU |
| 5965-00-636-2181 | 2023-06-158 | 2 | US |
| 5965-00-636-2181 | 2022-11-319 | 1 | PH |
| 5965-00-636-2181 | 2022-11-319 | 1 | PH |
| 5965-00-636-2181 | 2021-03-77 | 106 | DIBBS |
| 5965-00-636-2181 | 2020-11-315 | 2 | United States |
| 5965-00-636-2181 | 2020-10-282 | 95 | DIBBS |
| 5965-00-636-2181 | 2020-09-264 | 60 | DIBBS |
| 5965-00-636-2181 | 2020-08-240 | 19 | DIBBS |
| 5965-00-636-2181 | 2020-07-203 | 12 | DIBBS |
| 5965-00-636-2181 | 2020-03-72 | 66 | DIBBS |
| 5965-00-636-2181 | 2019-10-288 | 36 | DIBBS |
| 5965-00-636-2181 | 2018-10-277 | 149 | DIBBS |
| 5965-00-636-2181 | 2018-09-248 | 55 | DIBBS |
| 5965-00-636-2181 | 2018-06-179 | 66 | DIBBS |
| 5965-00-636-2181 | 2018-05-126 | 45 | DIBBS |
| 5965-00-636-2181 | 2018-03-74 | 76 | DIBBS |
| 5965-00-636-2181 | 2017-11-334 | 38 | DIBBS |
| 5965-00-636-2181 | 2017-10-297 | 26 | DIBBS |
| 5965-00-636-2181 | 2017-07-200 | 100 | DIBBS |
| 5965-00-636-2181 | 2013-08-234 | 1 | DIBBS-RFPs |
| 5965-00-636-2181 | 2013-06-176 | 50 | DIBBS |
| 5965-00-636-2181 | 2013-06-176 | 84 | DIBBS |
| 5965-00-636-2181 | 2013-04-101 | 84 | DIBBS |
| 5965-00-636-2181 | 2013-03-63 | 50 | DIBBS |
| 5965-00-636-2181 | 2013-02-51 | 68 | DIBBS |
| 5965-00-636-2181 | 2011-12-342 | 195 | DIBBS |
| 5965-00-636-2181 | 2011-10-280 | 140 | DIBBS |
| 5965-00-636-2181 | 2011-07-187 | 49 | DIBBS |
| 5965-00-636-2181 | 2011-01-26 | 33 | DIBBS |
| 5965-00-636-2181 | 2010-06-153 | 22 | DIBBS |
| 5965-00-636-2181 | 2010-01-08 | 10 | US |
| 5965-00-636-2181 | 2009-11-328 | 12 | DIBBS |
| 5965-00-636-2181 | 2009-11-328 | 13 | DIBBS |
| 5965-00-636-2181 | 2009-11-320 | 12 | DIBBS |
| 5965-00-636-2181 | 2009-11-320 | 13 | DIBBS |
| 5965-00-636-2181 | 2008-06-157 | 21 | DIBBS |
| 5965-00-636-2181 | 2008-06-157 | 23 | DIBBS |
| 5965-00-636-2181 | 2007-09-269 | 116 | DIBBS |
| 5965-00-636-2181 | 2007-08-241 | 115 | DIBBS |
| LS388SIC | 2006-06-175 | 2 | United States |
| LS388SIC | 2006-06-171 | 2 | US |
| 5965-00-636-2181 | 2006-02-47 | 19 | Malaysia |
Cross Reference | NSN 5965-00-636-2181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1275-6178.02 | 24558 | NAVAL SEA COMBAT SYSTEMS ENGINEERING STATION |
| 61716-201 | 12763 | DYNALEC CORPORATION |
| 9000S6502-74073TYPE1CSBG4REV1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| ICSBG4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| LS-388/SIC | 12763 | DYNALEC CORPORATION |
| LS-388/SIC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-L-24223/2A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILA20222 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NP10405C6853 | 32001 | INTERNATIONAL JENSEN INC JENSEN SOUND LABORATORIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-636-2181
Related Products | NSN 5965-00-636-2181
Technical Data | NSN 5965-00-636-2181
| Characteristic | Specifications |
|---|---|
| POWER RATING | 7.50 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 13.5 VOICE COIL NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | 500.0 TO 6000.0 |
| STYLE DESIGNATOR | 27 ROUND |

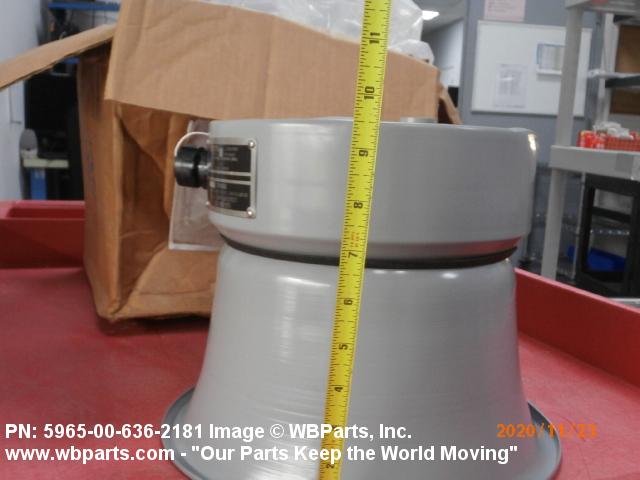

| OVERALL HEIGHT | 10.000 INCHES NOMINAL |

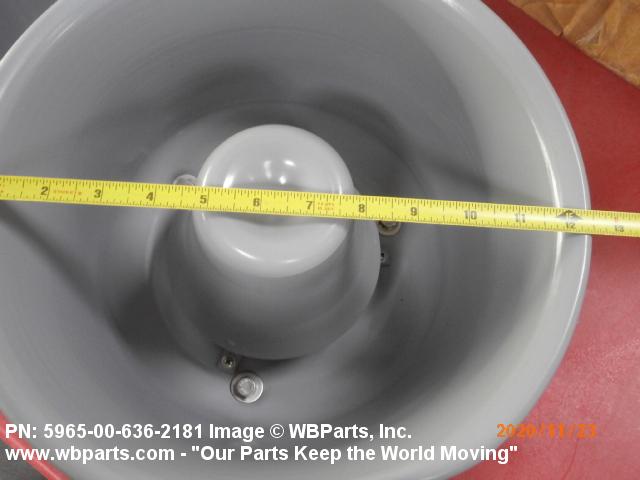

| OVERALL DIAMETER | 12.625 INCHES NOMINAL |

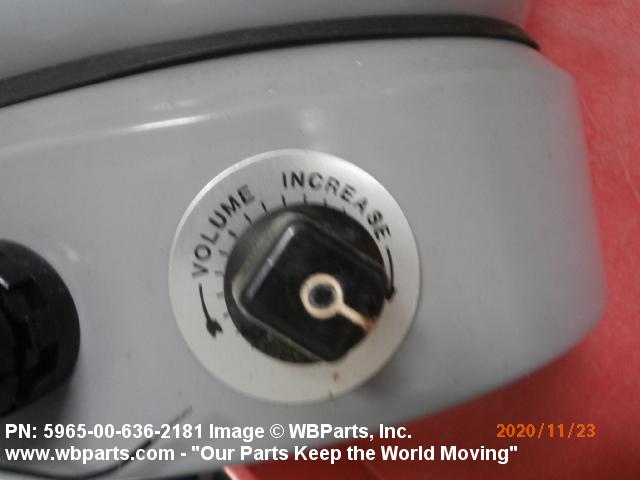

| ACCESSORY COMPONENTS | VOLUME CONTROL SWITCH |
| TRANSDUCER TYPE | DIAPHRAGM |
| HORN MOUNTING FACILITY | SNAP FASTENER |
| HORN MOUNTING FACILITY QUANTITY | 1 |
| TRANSFORMER PRIMARY IMPEDANCE RATING IN OHMS | 670.0 NOMINAL AND 3100.0 NOMINAL AND 10200.0 NOMINAL AND 18400.0 NOMINAL AND 22000.0 NOMINAL |
| USAGE DESIGN | OUTDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| TERMINAL TYPE | QUICK DISCONNECT, FEMALE |
| TERMINAL QUANTITY | 2 |

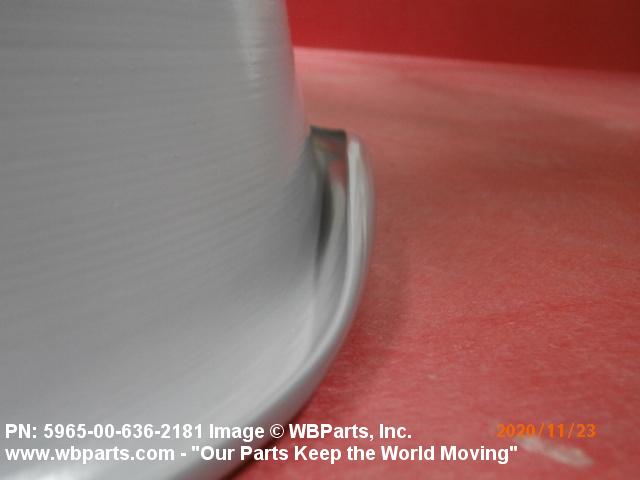

| MOUNTING METHOD | FLANGE |
| MOUNTING FACILITY QUANTITY | 1 |
| TEST DATA DOCUMENT | 81349-MIL-L-12632 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | LS-388/SIC |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-L-24223/2A |
Restrictions/Controls & Freight Information | NSN 5965-00-636-2181
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | N1 | Not Regulated as Hazardous NON HAZARDOUS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062420 | LOUDSPEAKER/SPEAKER W/HORN SUB 1 |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-636-2181
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
