NSN 5965-00-296-3398 NT49546, REC49041, RE-C-49041

5965-00-296-3398 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.

Part Alternates: NT49546, REC49041, RE-C-49041, 5965-00-296-3398, 00-296-3398, 5965002963398, 002963398

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-296-3398	15771 ( LOUDSPEAKER, PERMANENT MAGNET )

Part Number	Request Date	QTY	Origin
NT49546	2023-02-41	63	DIBBS
NT49546	2023-01-26	63	DIBBS
NT49546	2022-03-75	1	US
NT49546	2022-03-75	1	US
NT49546	2022-02-47	39	DIBBS
NT49546	2022-02-32	39	DIBBS
NT49546	2021-02-47	30	DIBBS
NT49546	2021-01-31	30	DIBBS
5965-00-296-3398	2020-04-92	1	DIBBS-RFPs
5965-00-296-3398	2018-07-198	1	United States
5965-00-296-3398	2018-02-37	1	US
5965-00-296-3398	2018-01-12	2	US
5965-00-296-3398	2016-12-356	22	DIBBS
5965-00-296-3398	2016-11-308	17	DIBBS
5965-00-296-3398	2016-10-290	6	DIBBS
5965-00-296-3398	2015-12-355	1	DIBBS-RFPs
5965-00-296-3398	2013-04-107	30	DIBBS
5965-00-296-3398	2013-01-08	17	DIBBS
5965-00-296-3398	2012-11-334	16	DIBBS
5965-00-296-3398	2012-10-284	30	DIBBS
5965-00-296-3398	2012-06-172	19	DIBBS
5965-00-296-3398	2012-05-150	18	DIBBS
5965-00-296-3398	2011-12-342	16	DIBBS
5965-00-296-3398	2011-11-307	20	DIBBS
5965-00-296-3398	2011-09-244	25	DIBBS
5965-00-296-3398	2011-07-201	11	DIBBS
5965-00-296-3398	2010-11-320	13	DIBBS
5965-00-296-3398	2010-07-189	34	DIBBS
5965-00-296-3398	2010-06-158	29	DIBBS
5965-00-296-3398	2010-05-146	7	DIBBS
5965-00-296-3398	2010-04-100	11	DIBBS
5965-00-296-3398	2010-02-36	12	DIBBS
5965-00-296-3398	2010-01-26	8	DIBBS
5965-00-296-3398	2009-10-296	27	DIBBS
5965-00-296-3398	2009-09-245	7	US
5965-00-296-3398	2009-09-244	7	DIBBS
NT49546	2009-08-237	10	US
5965-00-296-3398	2009-08-233	7	DIBBS
5965-00-296-3398	2009-01-19	1	US
5965-00-296-3398	2006-05-139	14	DIBBS

Part Number	Cage Code	Manufacturer
NT49546	88829	TABET MANUFACTURING COMPANY, INC.
RE-C-49041	80064	NAVAL SHIP SYSTEMS COMMAND

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5965-00-296-3398

Compare

5965-00-296-3403, 5965-00-296-3404, 5965-00-296-3633, 5965-00-296-3674, 5965-00-296-3695

Characteristic	Specifications
POWER RATING	10.00 WATTS PEAK
IMPEDANCE RATING IN OHMS	16.0 VOICE COIL NOMINAL
FREQUENCY RESPONSE RANGE IN HERTZ	200.0 TO 5000.0

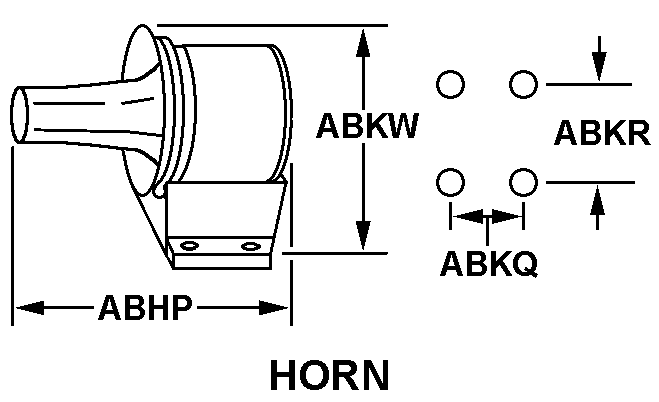

STYLE DESIGNATOR	24 HORN
OVERALL LENGTH	10.938 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	4.875 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	6.875 INCHES NOMINAL
OVERALL HEIGHT	8.000 INCHES NOMINAL
TRANSDUCER TYPE	DIAPHRAGM
TRANSDUCER LENGTH	ANY ACCEPTABLE
TRANSDUCER WIDTH	ANY ACCEPTABLE
HORN MOUNTING FACILITY	SNAP FASTENER
HORN MOUNTING FACILITY QUANTITY	1
VOICE COIL DIAMETER	ANY ACCEPTABLE
TRANSFORMER PRIMARY IMPEDANCE RATING IN OHMS	600.0 NOMINAL AND 1200.0 NOMINAL AND 1800.0 NOMINAL AND 2400.0 NOMINAL AND 3000.0 NOMINAL
USAGE DESIGN	OUTDOOR
INSTALLATION DESIGN	NONPORTABLE
TERMINAL TYPE	WIRE LEAD
TERMINAL QUANTITY	2
MOUNTING METHOD	FLANGE
MOUNTING FACILITY QUANTITY	1
TEST DATA DOCUMENT	81349-MIL-L16225 SPECIFICATION

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062420	LOUDSPEAKER/SPEAKER W/HORN SUB 1
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	723	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
