NSN 5965-00-242-8039 5312, 00-242-8039, 002428039
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-00-242-8039 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: 5312, 5965-00-242-8039, 00-242-8039, 5965002428039, 002428039
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-242-8039 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-00-242-8039
Demand History | NSN 5965-00-242-8039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5312 | 2009-09-245 | 1 | US |
Cross Reference | NSN 5965-00-242-8039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5312 | 87771 | UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-242-8039
Related Products | NSN 5965-00-242-8039
Technical Data | NSN 5965-00-242-8039
| Characteristic | Specifications |
|---|---|
| POWER RATING | 25.00 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 16.0 VOICE COIL NOMINAL |

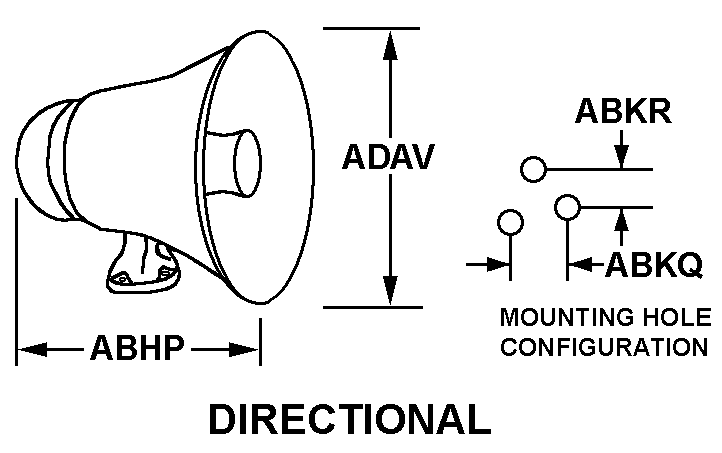

| STYLE DESIGNATOR | 18 DIRECTIONAL |
| OVERALL LENGTH | 19.000 INCHES NOMINAL |
| OVERALL DIAMETER | 21.000 INCHES NOMINAL |
| TRANSDUCER TYPE | DIAPHRAGM |
| USAGE DESIGN | INDOOR AND OUTDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| MOUNTING METHOD | SWIVEL |
| MOUNTING FACILITY QUANTITY | 1 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY PAC AXGY AND NAVY TYPE 1C/QHE-1U |
| MANUFACTURERS CODE | 87771 |
| DESIGN CONTROL REFERENCE | 5312 |
Restrictions/Controls & Freight Information | NSN 5965-00-242-8039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062420 | LOUDSPEAKER/SPEAKER W/HORN |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-242-8039
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
