NSN 5965-00-232-7395 106066, 500CA, 00-232-7395
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-00-232-7395 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: 106066, 500CA, 5965-00-232-7395, 00-232-7395, 5965002327395, 002327395
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-232-7395 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-00-232-7395
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-232-7395
Technical Data | NSN 5965-00-232-7395
| Characteristic | Specifications |
|---|---|
| POWER RATING | 8.00 WATTS NORMAL AND 11.00 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 8.0 VOICE COIL NOMINAL |

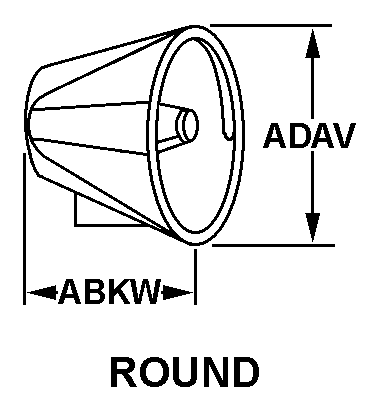

| STYLE DESIGNATOR | 27 ROUND |
| OVERALL HEIGHT | 10.125 INCHES NOMINAL |
| OVERALL DIAMETER | 17.000 INCHES NOMINAL |
| TRANSDUCER TYPE | CONE |
| TRANSDUCER DIAMETER | 8.0 INCHES NOMINAL |
| TRANSFORMER PRIMARY IMPEDANCE RATING IN OHMS | 600.0 NOMINAL |
| USAGE DESIGN | INDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| TERMINAL TYPE | BINDING POST |
| TERMINAL QUANTITY | 2 |
| SPECIAL FEATURES | VOLUMNE CONTROL KNOB |
Restrictions/Controls & Freight Information | NSN 5965-00-232-7395
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062420 | LOUDSPEAKER/SPEAKER W/HORN SUB 1 |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
