Product Details | CARBON MICROPHONE

5965-00-170-5234 A microphone which depends for its operation upon the variation in resistance of carbon granules.

Part Alternates: SCD1876, SC-D-1876, SCD1876ISSUEK, SCD1876MICR0PH0NE2500HM, T30ABCDEFGHJKLMN1705234, T30, T-30, 1705234, 170-5234, 271970MICR0PH0NET30ATHRUN, 271-970MICR0PH0NET30ATHRUN, 5965-00-170-5234, 00-170-5234, 5965001705234, 001705234

Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-170-5234

Drawings & Photos | NSN 5965-00-170-5234


Cross Reference | NSN 5965-00-170-5234

Part Number Cage Code Manufacturer
170-5234 56875 M & S ELECTRONICS INC
271-970MICR0PH0NET30ATHRUN 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SC-D-1876 82872 ROANWELL CORPORATION DBA PARAMOUNT CORDS
SCD1876ISSUEK 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SCD1876MICR0PH0NE2500HM 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
T-30 12497 JOHN A. BECKER CO. THE DBA BECKER ELECTRIC SUPPLY
T30 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
T30ABCDEFGHJKLMN1705234 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5965-00-170-5234

Technical Data | NSN 5965-00-170-5234

Characteristic Specifications
DC RESISTANCE RATING IN OHMS 75.0 NOMINAL
FREQUENCY RESPONSE RANGE IN HERTZ 200.0 TO 3000.0
OUTPUT SENSITIVITY RATING IN DECIBELS -50.0
OUTPUT SENSITIVITY RATING REFERENCE 1 MILLIWATT PER 1000 MICROBARS
POLARITY CONNECTION NOT REQUIRED
SOUND PICKUP DIRECTIONAL TYPE UNIDIRECTIONAL
NOISE CANCELING FEATURE NOT INCLUDED
SUPPORT STAND NOT INCLUDED
SHOCK MOUNT NOT PROVIDED
MOUNTING METHOD CLIP
ELECTRICAL CONNECTION TYPE INTEGRAL CABLE
ACCESSORY COMPONENTS CONNECTOR
EXTENDED CABLE LENGTH 1.0 FEET MAXIMUM
CABLE CONDUCTOR QUANTITY 2

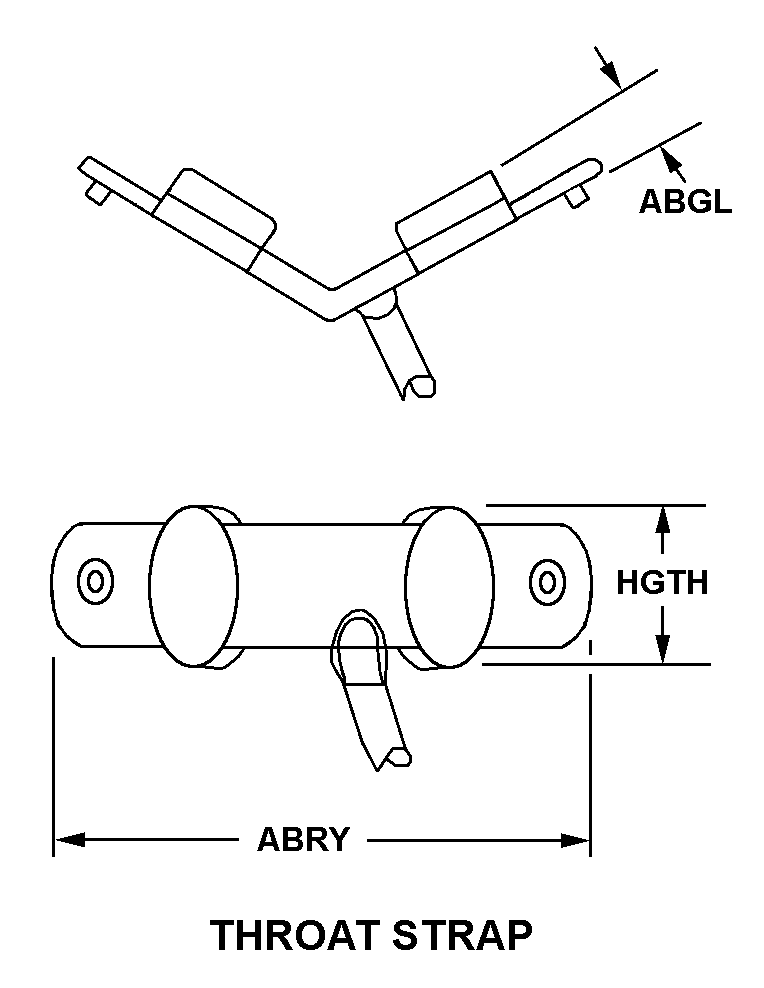

BODY STYLE 26 THROAT STRAP
WIDTH 1.250 INCHES NOMINAL
LENGTH 4.625 INCHES NOMINAL
HEIGHT 0.813 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5965-00-170-5234

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062420 LOUDSPEAKER/SPEAKER W/HORN
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 72D unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5965-00-170-5234

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeEHSX:ELECTRONIC COMPONENTS
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
