NSN 5965-00-170-4793 M0DELDN500, M-66/U, MILE136
Product Details | DYNAMIC MICROPHONE
5965-00-170-4793 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: M0DELDN500, M-66/U, MILE136, MILE1-36 , UG10DAL500, UGDN500, DN500WITHSTAND, JAN3JP7 , 0362, 0-362, 3JP7 , 46251, 46251WITHSTAND46250, M66U, 5965-00-170-4793, 00-170-4793, 5965001704793, 001704793
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-170-4793 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-00-170-4793
Demand History | NSN 5965-00-170-4793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-170-4793 | 2007-05-135 | 1 | DIBBS |
Cross Reference | NSN 5965-00-170-4793
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0-362 | 70638 | ASTATIC CORP THE |
| 46251 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 46251WITHSTAND46250 | 65597 | THALES DEFENSE & SECURITY, INC. |
| DN500WITHSTAND | 70638 | ASTATIC CORP THE |
| M-66/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| M0DELDN500 | 70638 | ASTATIC CORP THE |
| UG10DAL500 | 70638 | ASTATIC CORP THE |
| UGDN500 | 70638 | ASTATIC CORP THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-170-4793
Related Products | NSN 5965-00-170-4793
Technical Data | NSN 5965-00-170-4793
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 50.0 TO 7000.0 |
| IMPEDANCE SELECTION METHOD | INTEGRAL SWITCH |
| IMPEDANCE RATING | 500.0 OHMS NOMINAL |
| OUTPUT SENSITIVITY RATING IN DECIBELS | -48.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 20 DYNES PER SQ CENTIMETER |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | SEMIDIRECTIONAL |
| NOISE CANCELING FEATURE | NOT INCLUDED |
| SUPPORT STAND | INCLUDED |
| SUPPORT STAND HEIGHT | 8.250 INCHES NOMINAL |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | THREADED BUSHING |
| MOUNTING FACILITY THREAD SIZE | 5/8-27 UNS |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CONNECTOR |
| EXTENDED CABLE LENGTH | 5.0 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 3 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 2 |
| SWITCH TYPE | PUSH |

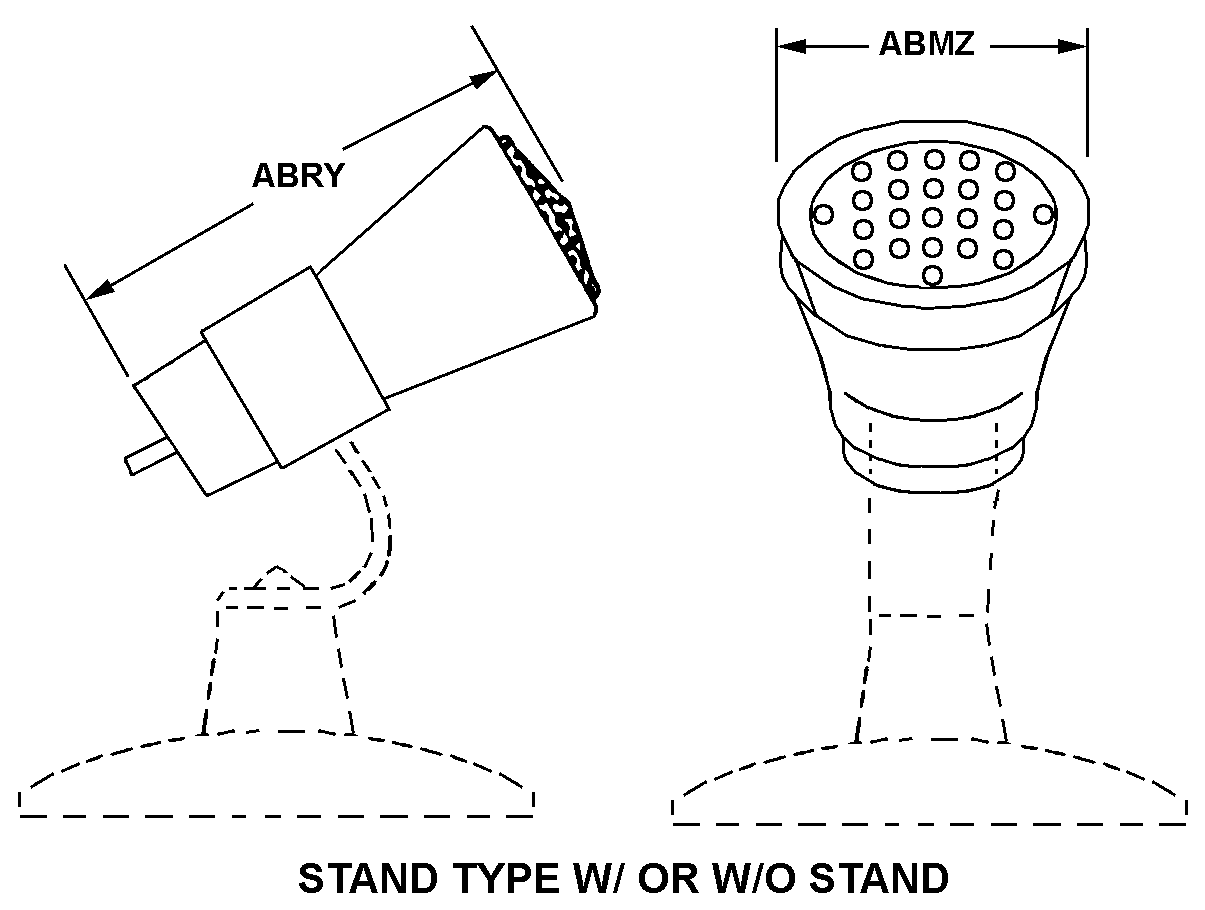

| BODY STYLE | 29 STAND TYPE W/ OR W/O STAND |
| DIAMETER | 5.500 INCHES NOMINAL |
| LENGTH | 12.000 INCHES NOMINAL |
| III CASE MATERIAL | METAL |
| III FSC APPLICATION DATA | HEADSETS,HANDSETS,MICROPHONES AND SPEAKERS |
Restrictions/Controls & Freight Information | NSN 5965-00-170-4793
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063473 | TUBES CATHODE RAY,TRANSMITTING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 724 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-170-4793
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
