NSN 5965-00-078-5770 953910REVA, 9539-10REVA, 00-078-5770
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-00-078-5770 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: 953910REVA, 9539-10REVA, 5965-00-078-5770, 00-078-5770, 5965000785770, 000785770
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-078-5770 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-00-078-5770
Cross Reference | NSN 5965-00-078-5770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9539-10REVA | 92739 | AMPEX SYSTEMS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-078-5770
Technical Data | NSN 5965-00-078-5770
| Characteristic | Specifications |
|---|---|
| POWER RATING | 1.00 WATTS NORMAL |
| IMPEDANCE RATING IN OHMS | 8.0 VOICE COIL NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | 400.0 TO 7000.0 |
| FREQUENCY RESPONSE TOLERANCE IN DECIBELS | -7.0 TO 7.0 |

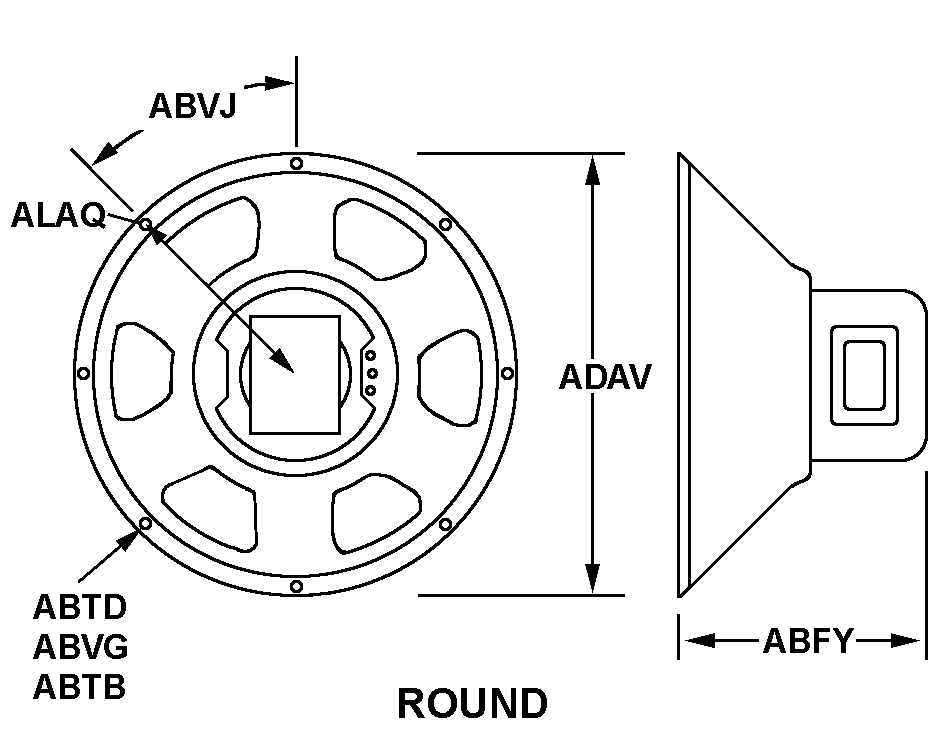

| STYLE DESIGNATOR | 9 ROUND |
| OVERALL DEPTH | 2.500 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |
| OVERALL DIAMETER | 3.000 INCHES NOMINAL |
| MOUNTING FACILITY CIRCLE RADIUS | 0.125 INCHES NOMINAL |
| ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG | 45.0 |
| TRANSDUCER TYPE | CONE |
| TRANSDUCER DIAMETER | 2.5 INCHES NOMINAL |
| USAGE DESIGN | INDOOR |
| INSTALLATION DESIGN | PORTABLE |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5965-00-078-5770
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5965-00-078-5770
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
