NSN 5961-01-431-5524 SEN17171, SEN-1717-1, 7555367P1
Product Details | SEMICONDUCTOR DEVICE RECTIFIER
5961-01-431-5524 Two or more interconnected SEMICONDUCTOR DEVICE (1), DIODE arranged in stack(s) for use in power supplies to change alternating current to direct current. For items containing material such as selenium or copper oxide, see RECTIFIER, METALLIC.
Part Alternates: SEN17171, SEN-1717-1, 7555367P1, 5961-01-431-5524, 01-431-5524, 5961014315524, 014315524
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAY 1996 | 01-431-5524 | 00300 ( RECTIFIER, SEMICONDUCTOR DEVICE ) |
Drawings & Photos | NSN 5961-01-431-5524
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-431-5524
Technical Data | NSN 5961-01-431-5524
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICON |
| ABSOLUTE MAXIMUM VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 500.0 REPETITIVE PEAK REVERSE VOLTAGE, MAXIMUM PEAK TOTAL VALUE |
| ABSOLUTE MAXIMUM CURRENT RATING PER CHARACTERISTIC | 250.00 AMPERES PEAK FORWARD SURGE CURRENT |
| MOUNTING METHOD | PLUG-IN TERMINAL |
| TERMINAL TYPE AND QUANTITY | 8 PIN |

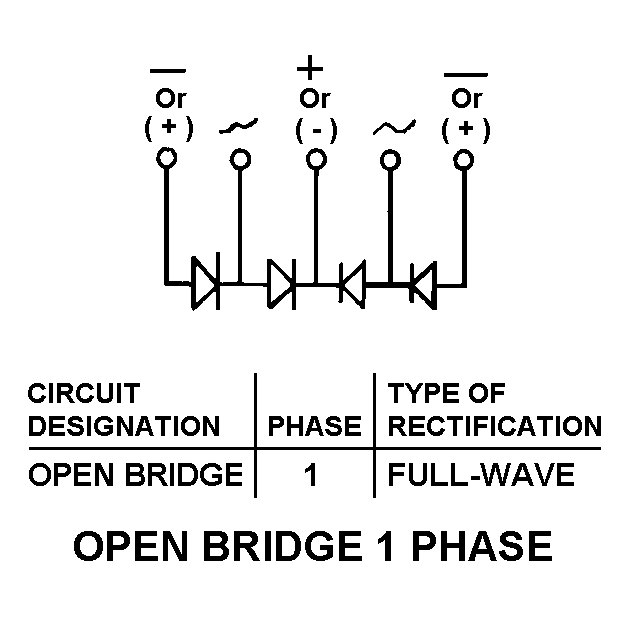

| CIRCUIT CONNECTION STYLE DESIGNATOR | 12 OPEN BRIDGE 1 PHASE |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| OVERALL LENGTH | 0.945 INCHES MINIMUM AND 0.955 INCHES MAXIMUM |
| OVERALL WIDTH | 0.895 INCHES MINIMUM AND 0.905 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5961-01-431-5524
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
