NSN 5961-01-313-9825 08707, 01-313-9825, 013139825
Product Details | SEMICONDUCTOR DEVICE RETAINER
5961-01-313-9825 An item primarily designed to position and/or restrain the movement of one or more semiconductor devices in their normal operating position. Excludes CLIP (1), ELECTRICAL; CLAMP (1), LOOP; HOLDER, SEMICONDUCTOR DEVICE; HOLDER (1), CRYSTAL UNIT; RETAINER, CRYSTAL HOLDER; and STRAP, RETAINING. See also HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT and SOCKET, PLUG-IN ELECTRONIC COMPONENTS.
Part Alternates: 08707, 5961-01-313-9825, 01-313-9825, 5961013139825, 013139825
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JAN 1990 | 01-313-9825 | 37244 ( RETAINER, SEMICONDUCTOR DEVICE ) |
Drawings & Photos | NSN 5961-01-313-9825
Cross Reference | NSN 5961-01-313-9825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08707 | 23386 | THALES DEFENSE & SECURITY, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-313-9825
Related Products | NSN 5961-01-313-9825
Technical Data | NSN 5961-01-313-9825
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |

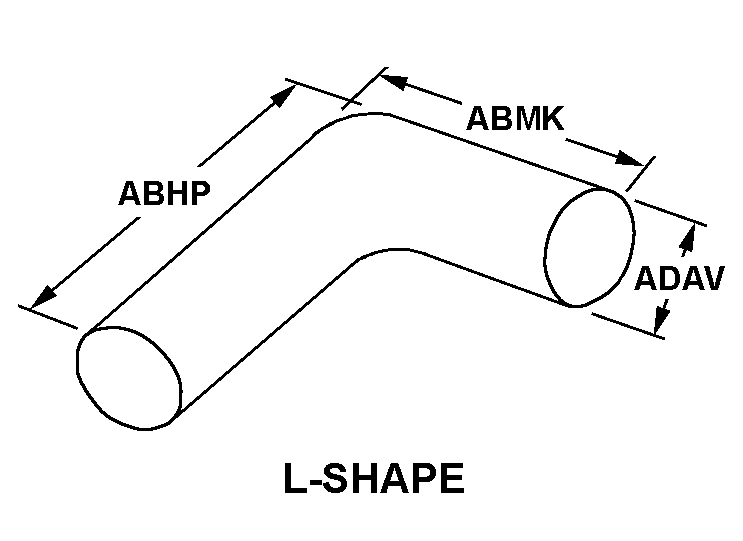

| STYLE DESIGNATOR | 7C L-SHAPE |
| OVERALL LENGTH | 0.650 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| OVERALL DIAMETER | 0.062 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SLOT SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.125 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT LENGTH | 0.187 INCHES NOMINAL SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5961-01-313-9825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
