NSN 5961-01-313-5514 4M85SR60Z11C, 4M85SR60Z1-1C, 01-313-5514
Product Details | SEMICONDUCTOR DEVICE RECTIFIER
5961-01-313-5514 Two or more interconnected SEMICONDUCTOR DEVICE (1), DIODE arranged in stack(s) for use in power supplies to change alternating current to direct current. For items containing material such as selenium or copper oxide, see RECTIFIER, METALLIC.
Part Alternates: 4M85SR60Z11C, 4M85SR60Z1-1C, 5961-01-313-5514, 01-313-5514, 5961013135514, 013135514
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JAN 1990 | 01-313-5514 | 00300 ( RECTIFIER, SEMICONDUCTOR DEVICE ) |
Drawings & Photos | NSN 5961-01-313-5514
Cross Reference | NSN 5961-01-313-5514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4M85SR60Z1-1C | 00891 | HOLMES CARL E CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-313-5514
Technical Data | NSN 5961-01-313-5514
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICON |
| ABSOLUTE MAXIMUM VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 40.2 SOURCE SUPPLY VOLTAGE |
| ABSOLUTE MAXIMUM CURRENT RATING PER CHARACTERISTIC | 70.00 AMPERES TOTAL POWER DISSIPATION |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 5 TAB W/SCREW |

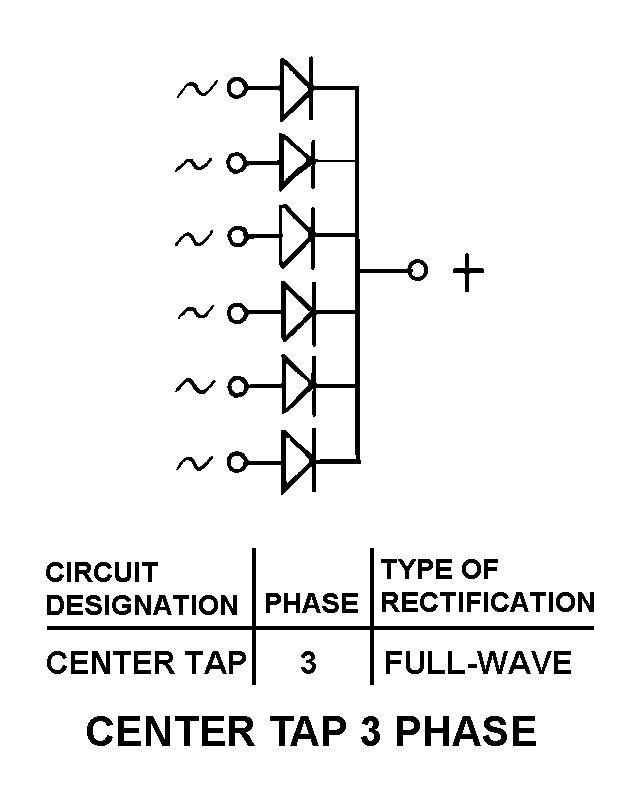

| CIRCUIT CONNECTION STYLE DESIGNATOR | 9 CENTER TAP 3 PHASE |
| OVERALL WIDTH | 14.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.000 INCHES NOMINAL |
| SPECIAL FEATURES | EQUIPPED WITH SURGE SUPPRESSOR |
| III END ITEM IDENTIFICATION | USED IN PROPULSION CONTROL SWITCHBOARD PART NUMBER D-82-3008-3CG-01 ONBOARD 180 FT WPB SLEP COAST GUARD VESSELS |
| MANUFACTURERS CODE | 00891 |
| DESIGN CONTROL REFERENCE | 4M85SR60Z1-1C |
Restrictions/Controls & Freight Information | NSN 5961-01-313-5514
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
