NSN 5961-01-285-9902 SD4454H, SMB526517, JAN2N2060
Product Details | UNITIZED SEMICONDUCTOR DEVICES
5961-01-285-9902 Two or more discrete semiconductor devices such as diode(s) and/or transistor(s), permanently cased, encapsulated, or potted together to form an inseparable unit. Excludes devices having one or more components other than semiconductor devices. The individually distinct devices forming the unit may be internally connected. The unit in itself does not perform a complete specific function and cannot be assigned a more definite item name. It may include or consist of inseparable matched pairs. May or may not include mounting hardware and/or heatsink. For interconnected items arranged in stack(s), see RECTIFIER, SEMICONDUCTOR DEVICE. For items formed on or within a semiconductor material substrate, formed on an insulating substrate or formed on a combination of both of these types, see MICROCIRCUIT (as modified). Excludes NETWORK (as modified); ABSORBER, OVERVOLTAGE; SEMICONDUCTOR DEVICE SET; and SEMICONDUCTOR DEVICE ASSEMBLY. Do not use if more specific name applies.
Part Alternates: SD4454H, SMB526517, JAN2N2060, JAN2N2060A, JANTX2N2060A, JANTX2N2060L, L532001061, L533000008, MIL-PRF-19500/270, MILPRF19500270, 1081H07H46, 1081H09H16, 1081H10H17, 2-00055-528, 2264018, 2264018REV1, 2N2060, 2N3411, 4JD12X018, 6618995501, 66-189955-01, 7902441-01, 8625597, 917AS70029, 917AS700-29, FSP2, 5961-01-285-9902, 01-285-9902, 5961012859902, 200055528, 012859902, 790244101
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 SEP 1988 | 01-285-9902 | 61962 ( SEMICONDUCTOR DEVICES, UNITIZED ) |

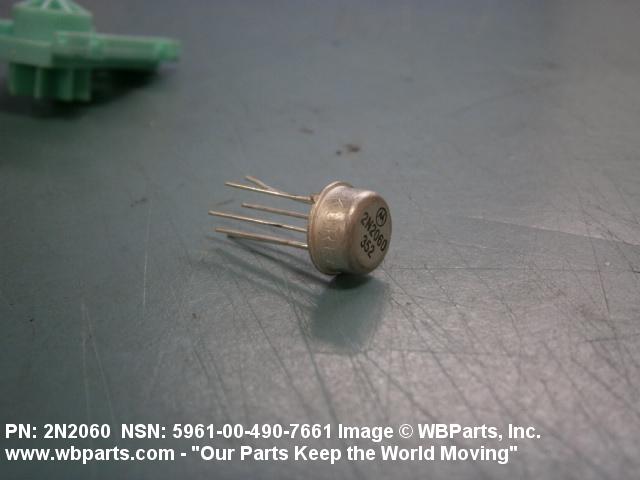

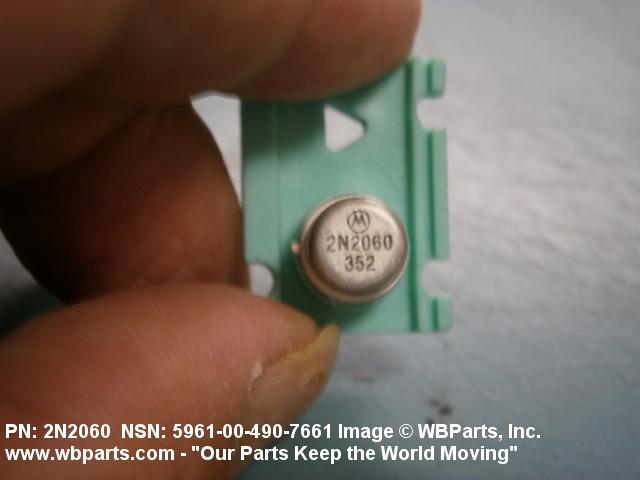

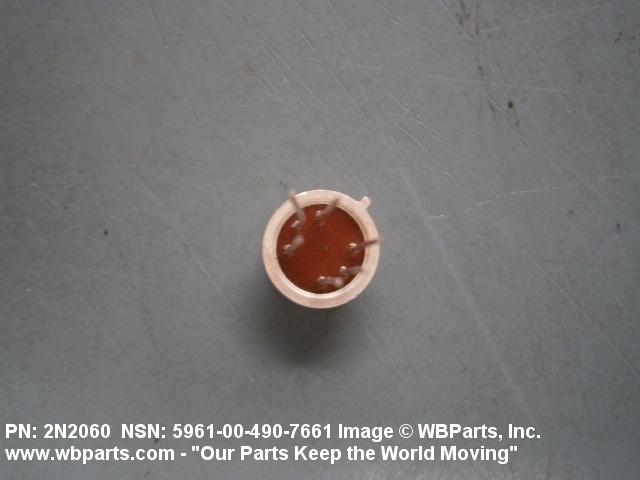

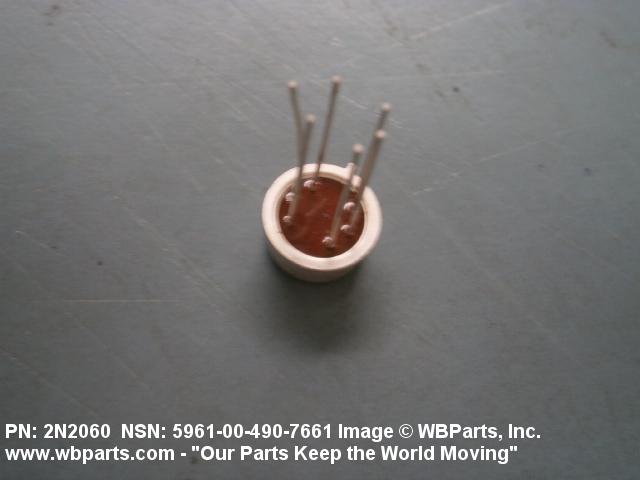

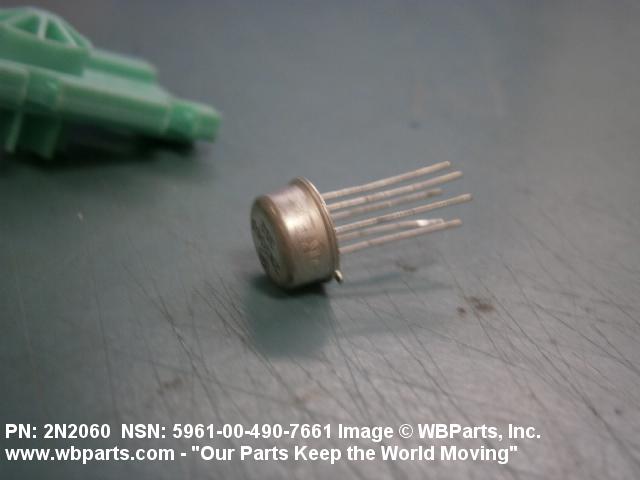

Drawings & Photos | NSN 5961-01-285-9902
Demand History | NSN 5961-01-285-9902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-285-9902 | 2023-01-18 | 365 | DIBBS |
| 5961-01-285-9902 | 2017-12-363 | 250 | DIBBS |
| 5961-01-285-9902 | 2017-12-348 | 250 | DIBBS |
| 5961-01-285-9902 | 2007-08-236 | 542 | DIBBS |
| 5961-01-285-9902 | 2007-07-187 | 250 | DIBBS |
Cross Reference | NSN 5961-01-285-9902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1081H07H46 | 04804 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS |
| 1081H09H16 | 04804 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS |
| 1081H10H17 | 04804 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS |
| 2-00055-528 | 03848 | ARMA DIV AMBAC INDUSTRIES INC |
| 2264018 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2264018REV1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2N2060 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| 2N2060 | 59993 | INTERNATIONAL RECTIFIER CORPORATION Use CAGE Code 81483 for cataloging |
| 2N2060 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 2N2060 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| 2N3411 | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| 4JD12X018 | 03508 | GENERAL ELECTRIC CO SEMI-CONDUCTOR PRODUCTS DEPT |
| 66-189955-01 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 7902441-01 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8625597 | 19200 | US ARMY ARDEC RDECOM |
| 917AS700-29 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| FSP2 | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| JAN2N2060 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| JAN2N2060A | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| JANTX2N2060A | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| JANTX2N2060L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| L532001061 | 36090 | LOCKHEED MARTIN LIBRASCOPE CORP |
| L533000008 | 36090 | LOCKHEED MARTIN LIBRASCOPE CORP |
| MIL-PRF-19500/270 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SD4454H | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| SMB526517 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-285-9902
Related Products | NSN 5961-01-285-9902
Technical Data | NSN 5961-01-285-9902
| Characteristic | Specifications |
|---|---|
| COMPONENT NAME AND QUANTITY | 2 SEMICONDUCTOR DEVICE DIODE |
| SEMICONDUCTOR MATERIAL | SILICON ALL TRANSISTOR |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 100.0 MAXIMUM COLLECTOR TO BASE VOLTAGE/STATIC/EMITTER OPEN AND 7.0 MAXIMUM EMITTER TO BASE VOLTAGE, STATIC, COLLECTOR OPEN AND 60.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE/STATIC/BASE OPEN ALL TRANSISTOR |
| CURRENT RATING PER CHARACTERISTIC | 500.00 MILLIAMPERES MAXIMUM COLLECTOR CURRENT, INSTANTANEOUS ALL TRANSISTOR |
| POWER RATING PER CHARACTERISTIC | 2.12 WATTS MAXIMUM TOTAL POWER DISSIPATION ALL TRANSISTOR |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 200.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 1.500 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |
| TERMINAL CIRCLE DIAMETER | 0.200 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.150 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.335 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| SPECIAL FEATURES | ALL TRANSISTOR JUNCTION PATTERN ARRANGEMENT: NPN |
| TEST DATA DOCUMENT | 81349-MIL-PRF-19500 SPECIFICATION |
| (NON-CORE DATA) SPECIFICATION/STANDARD DATA | 81349-MIL-PRF-19500/270 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANTX2N2060L |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19500/270 |
Restrictions/Controls & Freight Information | NSN 5961-01-285-9902
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
