NSN 5961-01-261-5508 S5195, SEA2603TX, SEA2603-TX
Product Details | SEMICONDUCTOR DEVICE RECTIFIER
5961-01-261-5508 Two or more interconnected SEMICONDUCTOR DEVICE (1), DIODE arranged in stack(s) for use in power supplies to change alternating current to direct current. For items containing material such as selenium or copper oxide, see RECTIFIER, METALLIC.
Part Alternates: S5195, SEA2603TX, SEA2603-TX, UES2603HR2, UTG5257, PPR1219, PRD3057, 63220005, 632200-05, 7906937-10, 5961-01-261-5508, 01-261-5508, 5961012615508, 012615508, 790693710
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 AUG 1987 | 01-261-5508 | 00300 ( RECTIFIER, SEMICONDUCTOR DEVICE ) |
Drawings & Photos | NSN 5961-01-261-5508
Demand History | NSN 5961-01-261-5508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-261-5508 | 2013-09-269 | 147 | DIBBS |
| 5961-01-261-5508 | 2012-10-278 | 11 | DIBBS |
| 5961-01-261-5508 | 2012-08-239 | 4 | DIBBS |
| 5961-01-261-5508 | 2012-08-223 | 5 | DIBBS |
| 5961-01-261-5508 | 2012-07-202 | 4 | DIBBS |
| 5961-01-261-5508 | 2012-06-169 | 5 | DIBBS |
| 5961-01-261-5508 | 2011-09-245 | 5 | DIBBS |
Cross Reference | NSN 5961-01-261-5508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 632200-05 | 07690 | BAE SYSTEMS CONTROLS INC |
| 7906937-10 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| PPR1219 | 33178 | MICROSEMI PPC INC |
| PRD3057 | 32694 | OPTEK TECHNOLOGY, INC |
| S5195 | 11961 | SEMICON COMPONENTS INC |
| SEA2603-TX | 30043 | SOLID STATE DEVICES, INC. |
| UES2603HR2 | 12969 | MICRO USPD INC |
| UES2603HR2 | 43611 | MICROSEMI CORP. - MASSACHUSETTS DBA MICROSEMI-LAWRENCE |
| UTG5257 | 12969 | MICRO USPD INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-261-5508
Related Products | NSN 5961-01-261-5508
Technical Data | NSN 5961-01-261-5508
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICON |
| ABSOLUTE MAXIMUM VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 150.0 REVERSE VOLTAGE, PEAK |
| ABSOLUTE MAXIMUM CURRENT RATING PER CHARACTERISTIC | 30.00 AMPERES AVERAGE FORWARD CURRENT AVERAGED OVER A FULL 60-HZ CYCLE |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 2 PIN |

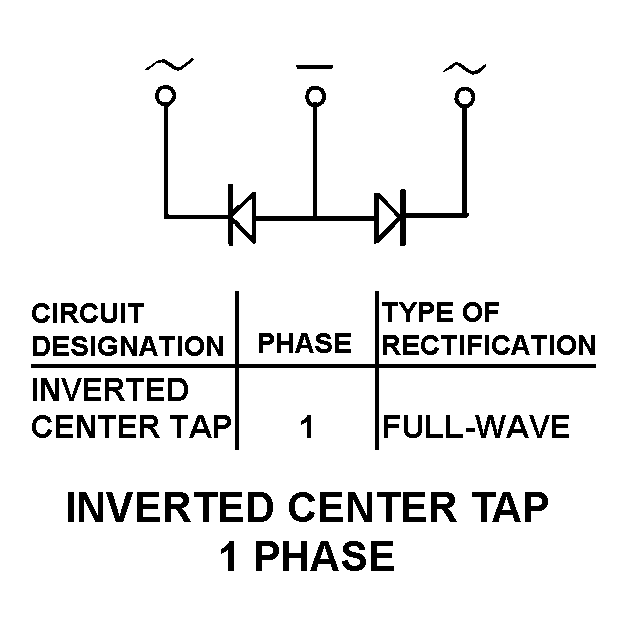

| CIRCUIT CONNECTION STYLE DESIGNATOR | 10 INVERTED CENTER TAP 1 PHASE |
