NSN 5961-01-261-2262 DT711026A, 2504383, 01-261-2262
Product Details | DIODE SEMICONDUCTOR DEVICE
5961-01-261-2262 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: DT711026A, 2504383, 5961-01-261-2262, 01-261-2262, 5961012612262, 012612262
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 AUG 1987 | 01-261-2262 | 20589 ( SEMICONDUCTOR DEVICE, DIODE ) |

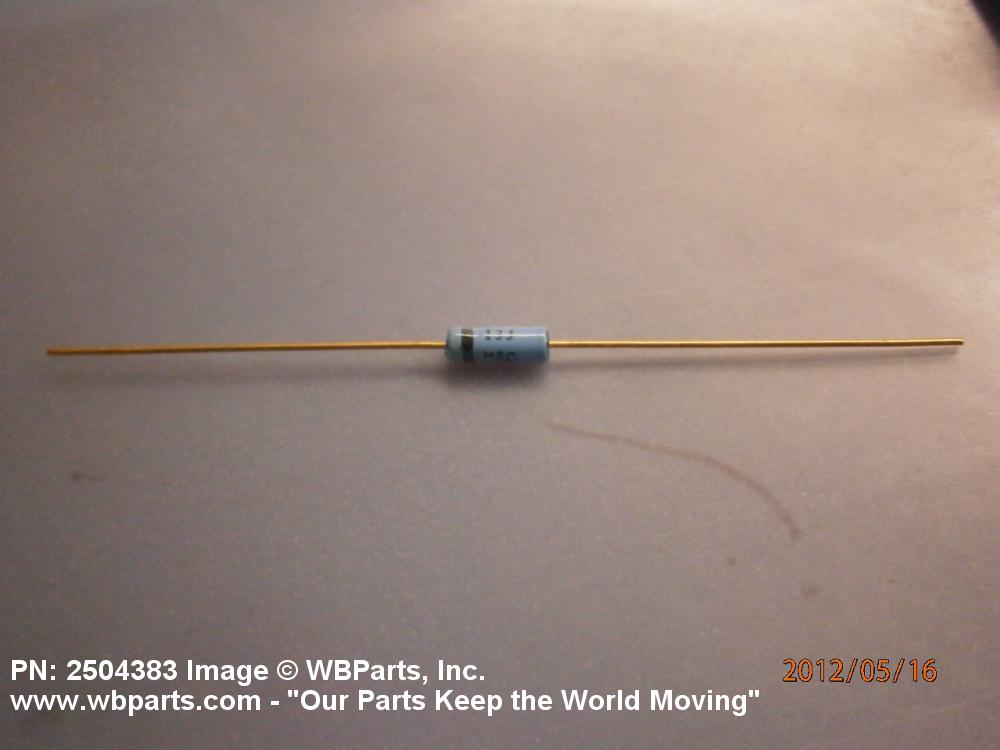

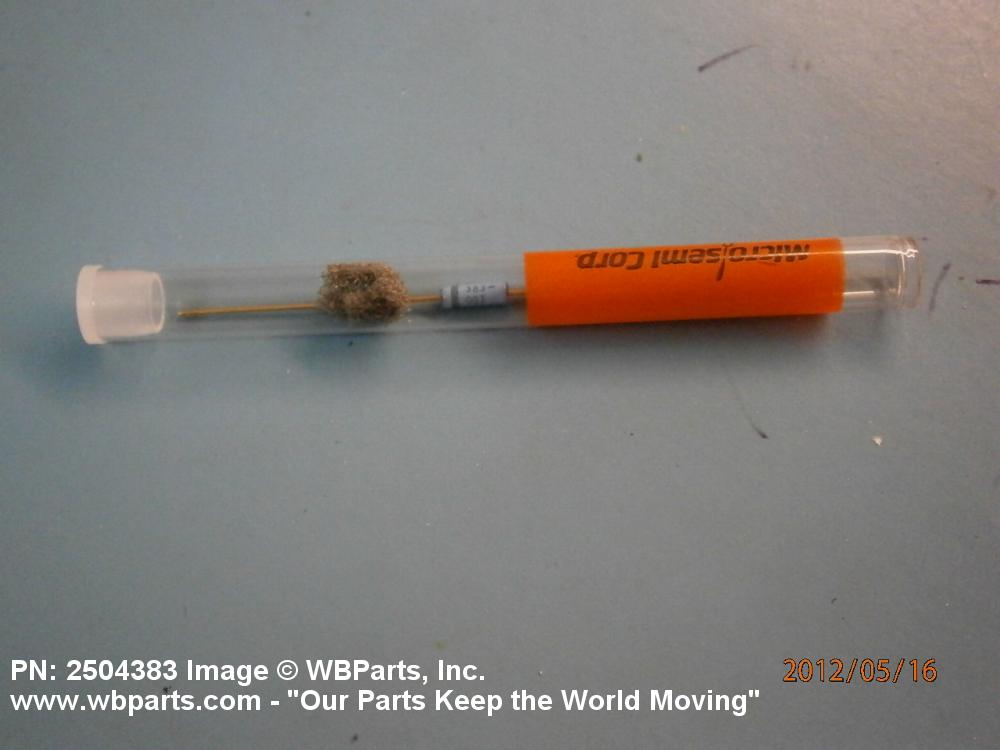

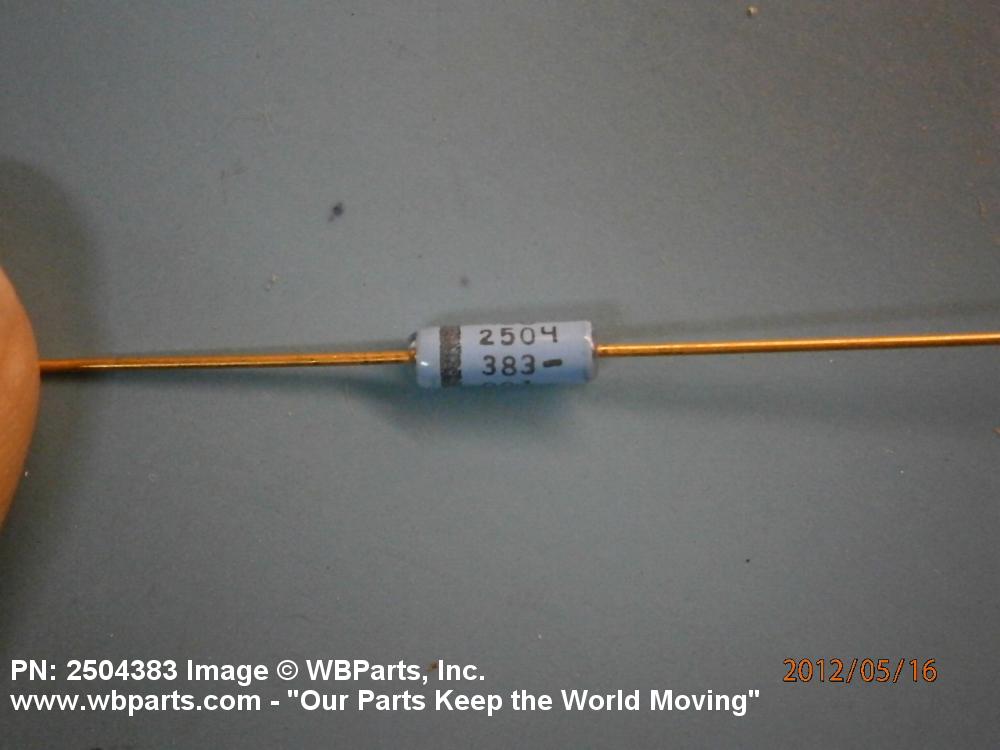

Drawings & Photos | NSN 5961-01-261-2262
Demand History | NSN 5961-01-261-2262
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2504383 | 2014-10-304 | 1 | US |
| 2504383 | 2012-08-240 | 1 | us |
| 2504383 | 2012-02-54 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-261-2262
Technical Data | NSN 5961-01-261-2262
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 9.0 MAXIMUM NOMINAL REGULATOR VOLTAGE |
| VOLTAGE TOLERANCE IN PERCENT | -5.0 TO 5.0 |
| CURRENT RATING PER CHARACTERISTIC | 7.50 MILLIAMPERES MAXIMUM VOLTAGE REGULATOR DIODE CURRENT |
| POWER RATING PER CHARACTERISTIC | 0.5 WATTS MAXIMUM TOTAL DEVICE DISSIPATION |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 150.0 DEG CELSIUS AMBIENT AIR |
| INCLOSURE MATERIAL | GLASS |
| JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION | D0-7 |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 1.000 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.300 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.107 INCHES MAXIMUM |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
Restrictions/Controls & Freight Information | NSN 5961-01-261-2262
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-01-261-2262
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
