NSN 5961-01-211-9254 C147BR1801, 11455927, 01-211-9254
Product Details | THYRISTOR SEMICONDUCTOR DEVICE
5961-01-211-9254 A bistable semiconductor device comprising three or more junctions which is normally a nonconductor until the application of a signal to a gate terminal, at which time the device switches to the conductive state. Includes devices capable of being switched back to the nonconductive state upon application of a different signal to the same or another gate terminal. May or may not include mounting hardware and/or heatsink. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: C147BR1801, 11455927, 5961-01-211-9254, 01-211-9254, 5961012119254, 012119254
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 JUL 1985 | 01-211-9254 | 33096 ( SEMICONDUCTOR DEVICE, THYRISTOR ) |
Demand History | NSN 5961-01-211-9254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-211-9254 | 2024-10-305 | 3 | Saudi Arabia |
| 11455927 | 2024-07-199 | 15 | DIBBS |
| 11455927 | 2024-06-179 | 5 | DIBBS |
| 5961-01-211-9254 | 2024-06-165 | 3 | Saudi Arabia |
| 5961-01-211-9254 | 2018-05-151 | 21 | DIBBS |
| 5961-01-211-9254 | 2017-10-295 | 7 | DIBBS |
| 5961-01-211-9254 | 2017-10-275 | 1 | DIBBS-RFPs |
| 5961-01-211-9254 | 2017-09-248 | 3 | DIBBS |
| 5961-01-211-9254 | 2010-04-92 | 21 | DIBBS |
| 5961-01-211-9254 | 2009-08-217 | 165 | DIBBS |
| 5961-01-211-9254 | 2009-01-29 | 27 | DIBBS |
| 5961-01-211-9254 | 2008-11-318 | 8 | DIBBS |
| 5961-01-211-9254 | 2008-10-289 | 10 | DIBBS |
| 5961-01-211-9254 | 2008-06-179 | 14 | DIBBS |
| 5961-01-211-9254 | 2008-01-25 | 24 | DIBBS |
| 5961-01-211-9254 | 2007-01-23 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-211-9254
Related Products | NSN 5961-01-211-9254
Technical Data | NSN 5961-01-211-9254
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 50.0 MAXIMUM REPETITIVE PEAK REVERSE VOLTAGE, MAXIMUM PEAK TOTAL VALUE AND 50.0 MAXIMUM FORWARD VOLTAGE, PEAK |
| CURRENT RATING PER CHARACTERISTIC | 550.00 AMPERES MAXIMUM PEAK ON-STATE CURRENT, NONREPETITIVE |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 125.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | PLASTIC |

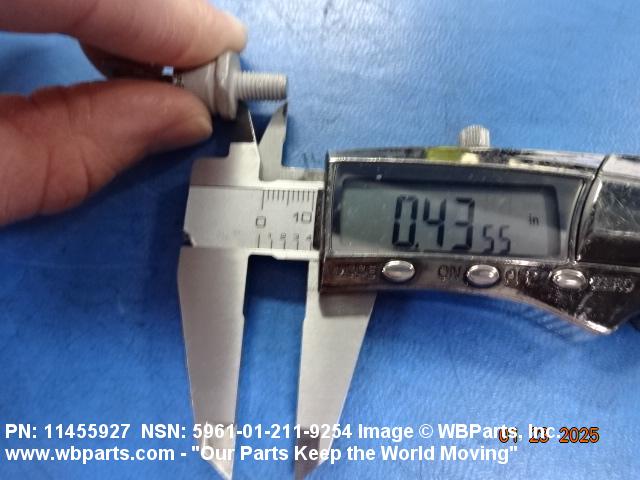

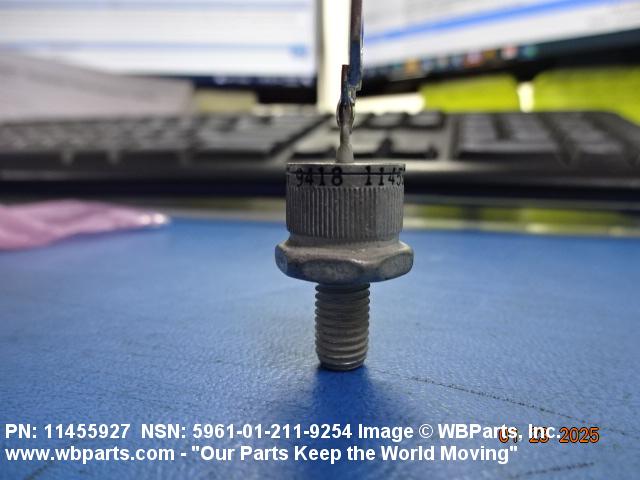

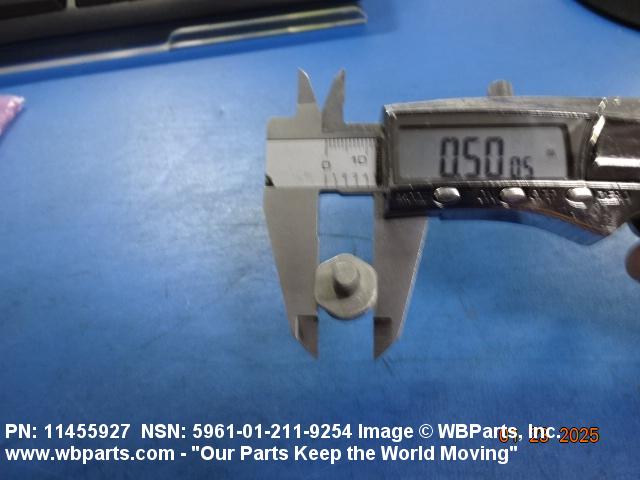

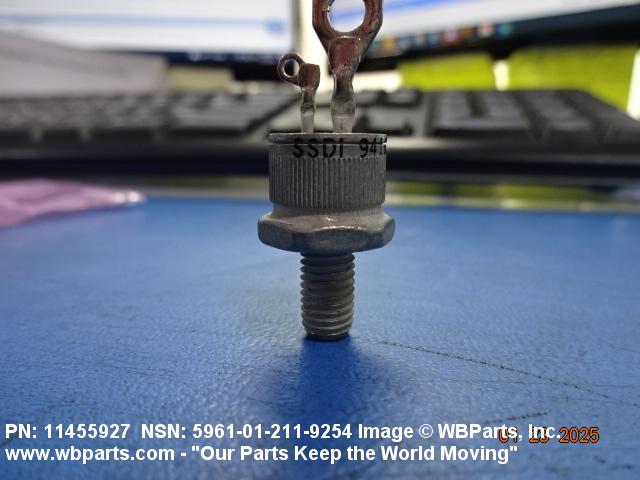

| MOUNTING METHOD | THREADED STUD AND UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| THREAD SERIES DESIGNATOR | UNC |

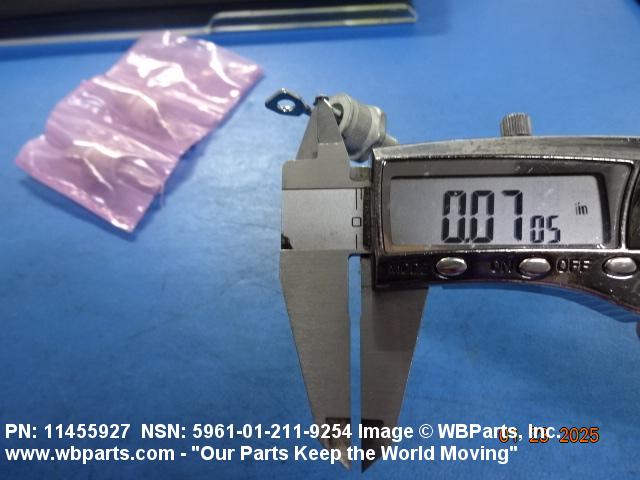

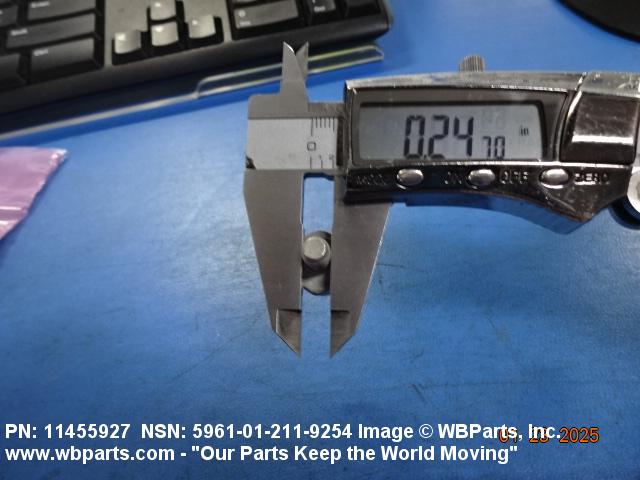

| NOMINAL THREAD SIZE | 0.250 INCHES |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD |

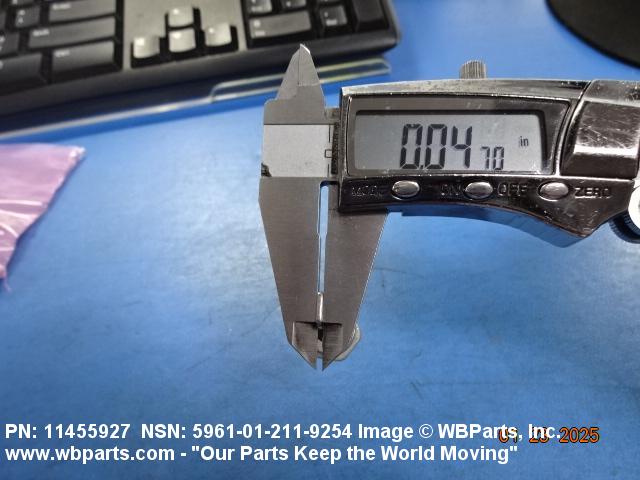

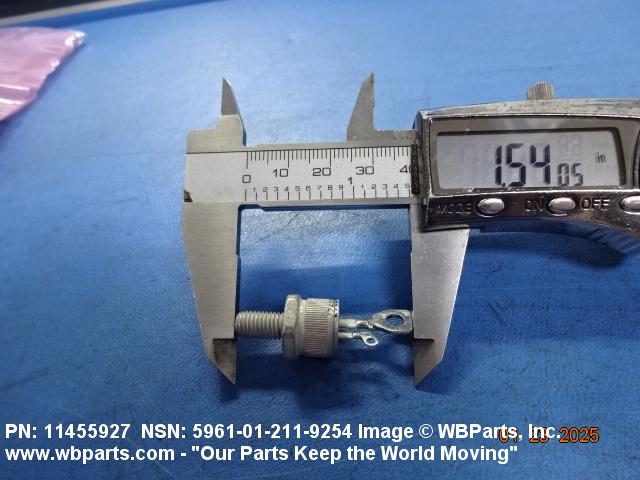

| OVERALL LENGTH | 1.050 INCHES MINIMUM AND 1.190 INCHES MAXIMUM |

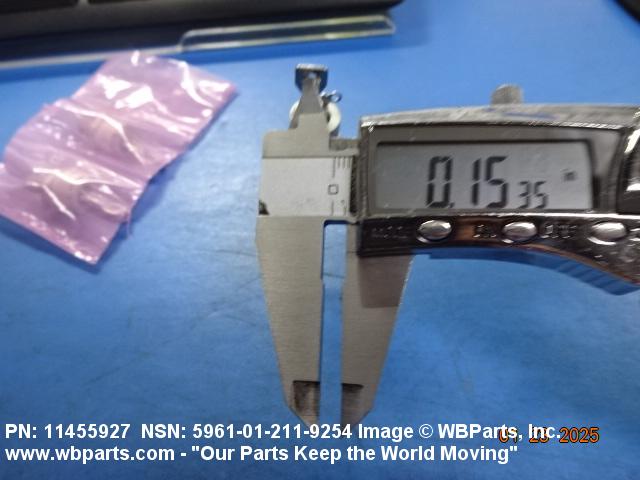

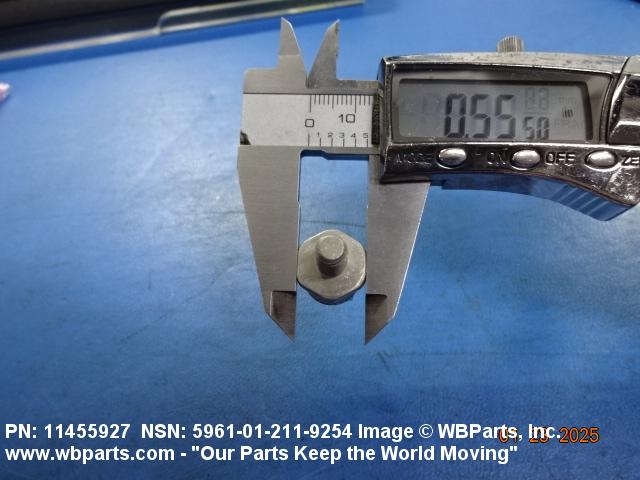

| OVERALL WIDTH ACROSS FLATS | 0.551 INCHES MINIMUM AND 0.559 INCHES MAXIMUM |
| SPECIAL FEATURES | JUNCTION PATTERN ARRANGEMENT: PNPNP |
| MANUFACTURERS CODE | 18876 |

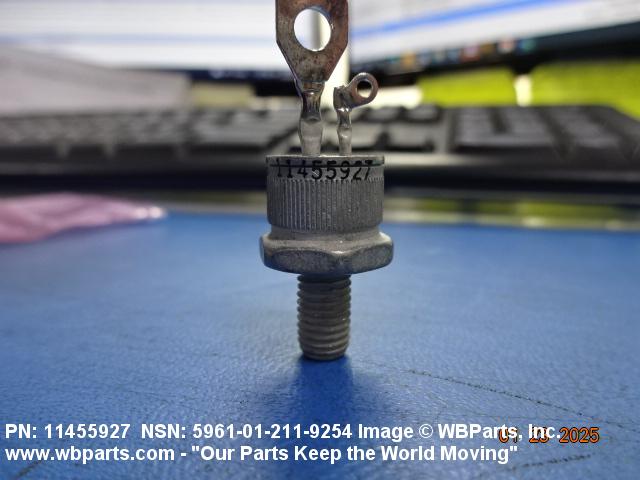

| DESIGN CONTROL REFERENCE | 11455927 |
Restrictions/Controls & Freight Information | NSN 5961-01-211-9254
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060500 | ELECTRICAL EQUIPMENT GROUP |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-01-211-9254
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
