NSN 5961-01-189-2491 10182354001, 10182354-001, 1N4245
Product Details | DIODE SEMICONDUCTOR DEVICE
5961-01-189-2491 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: 10182354001, 10182354-001, 1N4245, 5961-01-189-2491, 01-189-2491, 5961011892491, 011892491
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 1984 | 01-189-2491 | 20589 ( SEMICONDUCTOR DEVICE, DIODE ) |

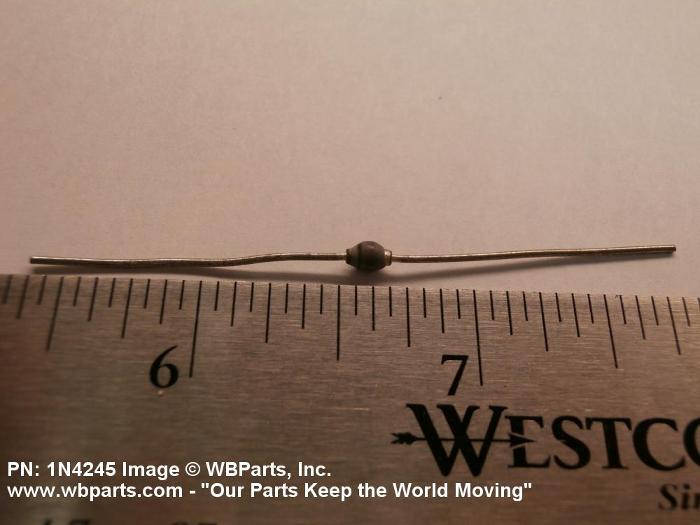

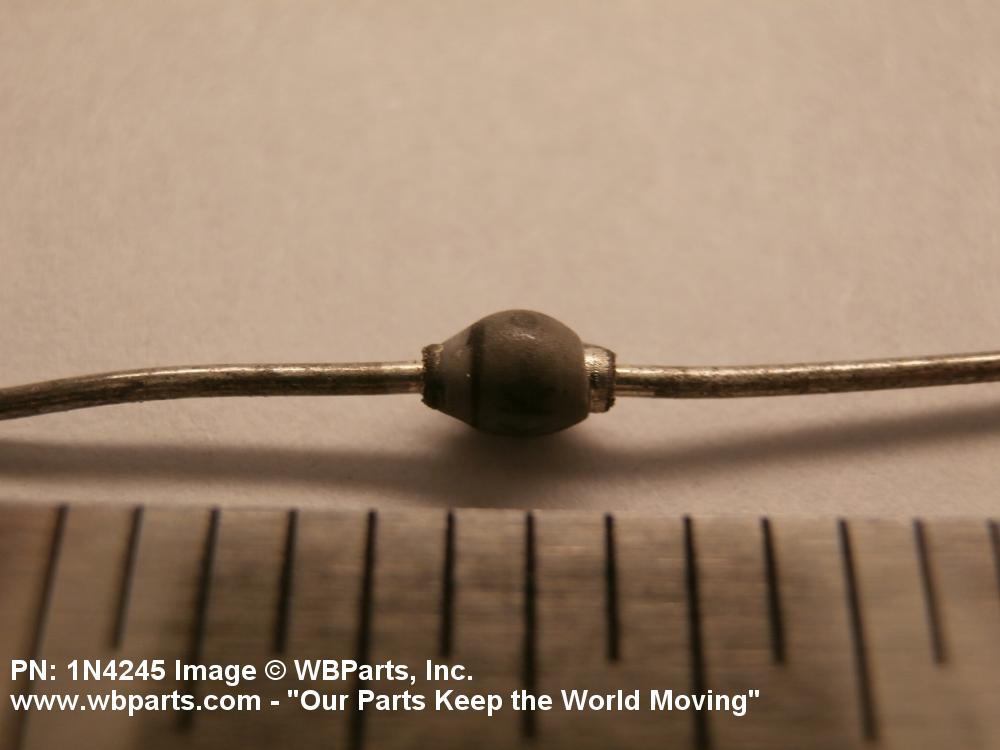

Drawings & Photos | NSN 5961-01-189-2491
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-189-2491
Related Products | NSN 5961-01-189-2491
Technical Data | NSN 5961-01-189-2491
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 200.0 MAXIMUM WORKING PEAK REVERSE VOLTAGE, MAXIMUM PEAK TOTAL VALUE |
| INCLOSURE MATERIAL | GLASS |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 1.000 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.140 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.065 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| FEATURES PROVIDED | BURN IN |
