NSN 5961-01-106-0636 SD1201, 01-106-0636, 011060636
Product Details | TRANSISTOR
5961-01-106-0636 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: SD1201, 5961-01-106-0636, 01-106-0636, 5961011060636, 011060636
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JAN 1981 | 01-106-0636 | 20588 ( TRANSISTOR ) |

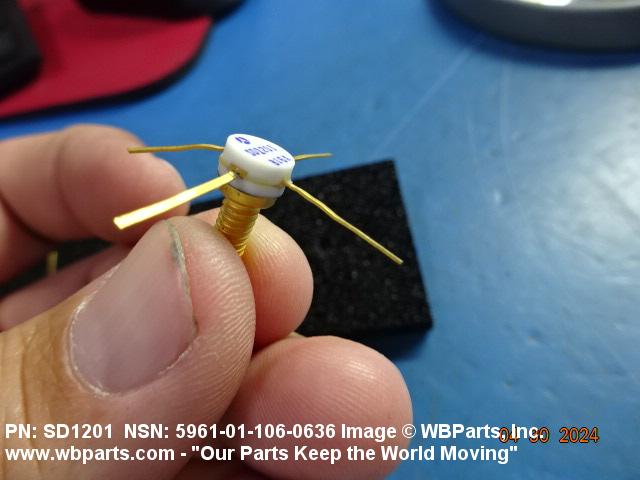

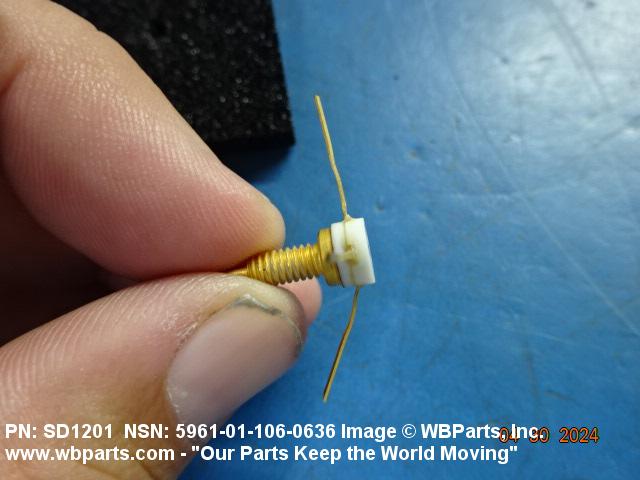

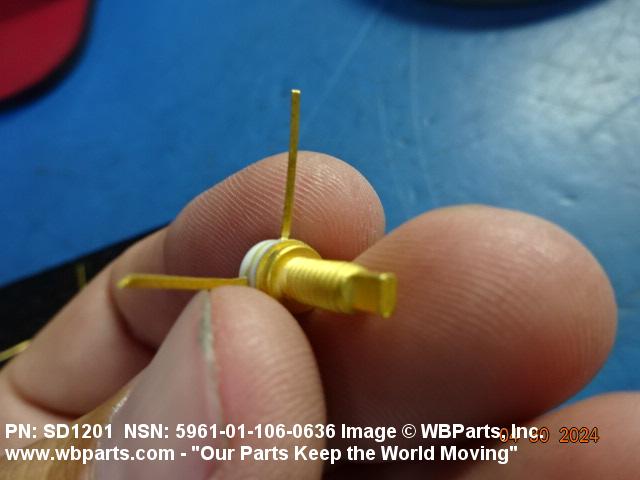

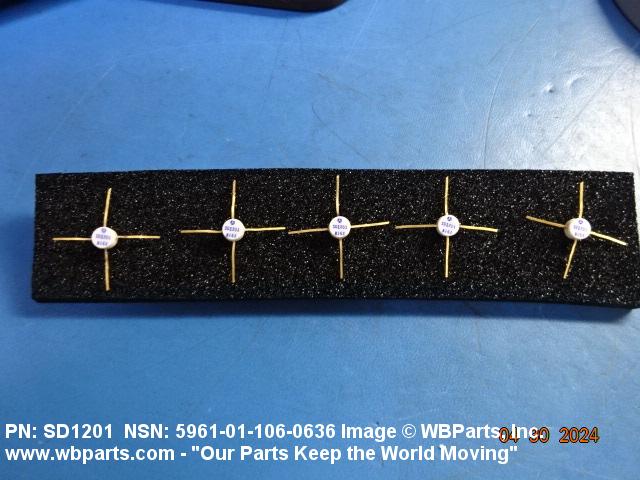

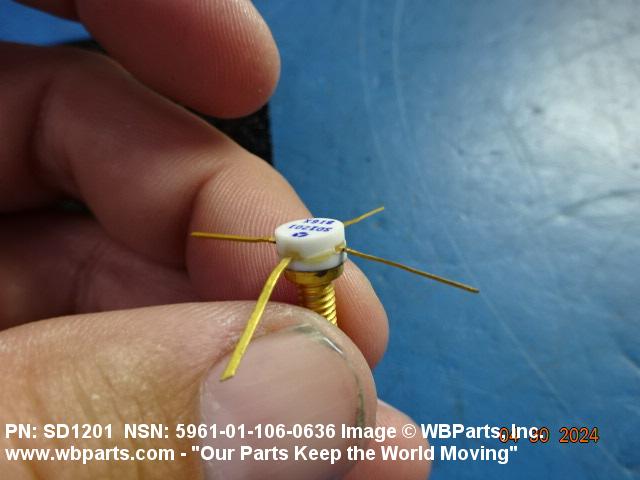

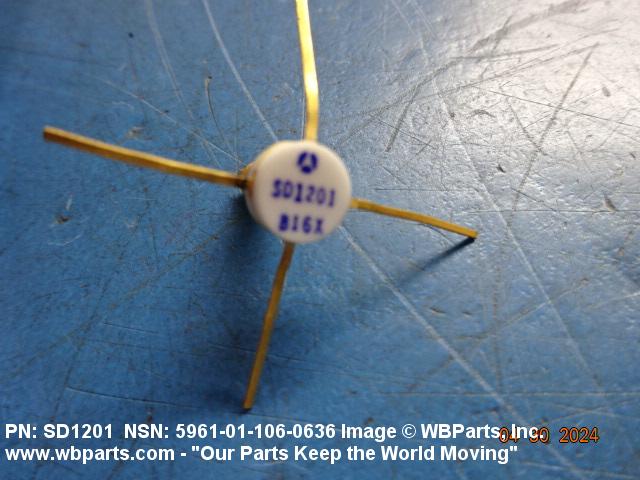

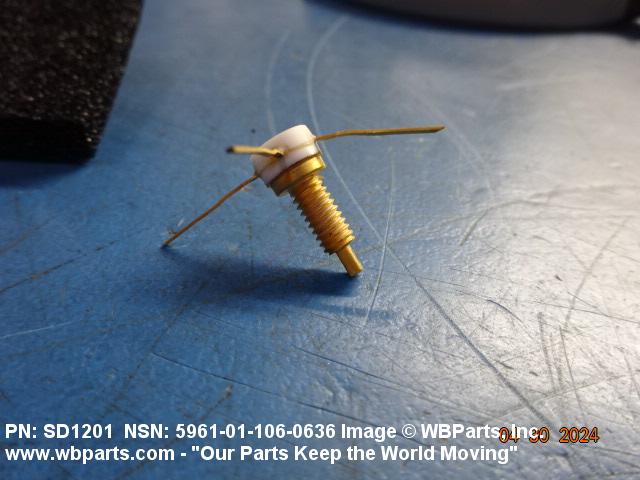

Drawings & Photos | NSN 5961-01-106-0636
Demand History | NSN 5961-01-106-0636
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-106-0636 | 2024-04-99 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-106-0636
Technical Data | NSN 5961-01-106-0636
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 60.0 MAXIMUM COLLECTOR TO BASE VOLTAGE/STATIC/EMITTER OPEN AND 35.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE/STATIC/BASE OPEN AND 4.0 MAXIMUM EMITTER TO BASE VOLTAGE, STATIC, COLLECTOR OPEN |
| CURRENT RATING PER CHARACTERISTIC | 1.00 AMPERES MAXIMUM COLLECTOR CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 10.0 WATTS MAXIMUM TOTAL DEVICE DISSIPATION |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 200.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | CERAMIC |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 1 |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| TERMINAL TYPE AND QUANTITY | 4 RIBBON |
| OVERALL LENGTH | 0.155 INCHES NOMINAL |
| OVERALL DIAMETER | 0.378 INCHES NOMINAL |
| SPECIAL FEATURES | JUNCTION PATTERN ARRANGEMENT: NPN |
Restrictions/Controls & Freight Information | NSN 5961-01-106-0636
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
