NSN 5961-01-010-7906 JAN2N5303, MIL-PRF-19500/456, MILPRF19500456
Product Details | TRANSISTOR
5961-01-010-7906 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: JAN2N5303, MIL-PRF-19500/456, MILPRF19500456, MIL-S-19500/456, MILS19500456, 5M.5512.222.96, 5M551222296, 5961-01-010-7906, 01-010-7906, 5961010107906, 010107906
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 OCT 1975 | 01-010-7906 | 20588 ( TRANSISTOR ) |

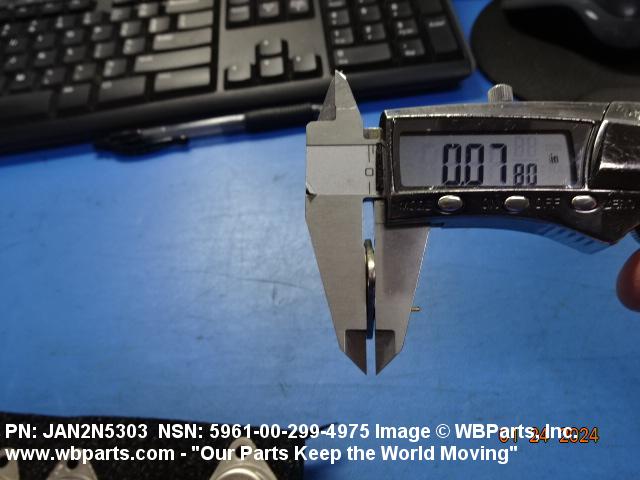

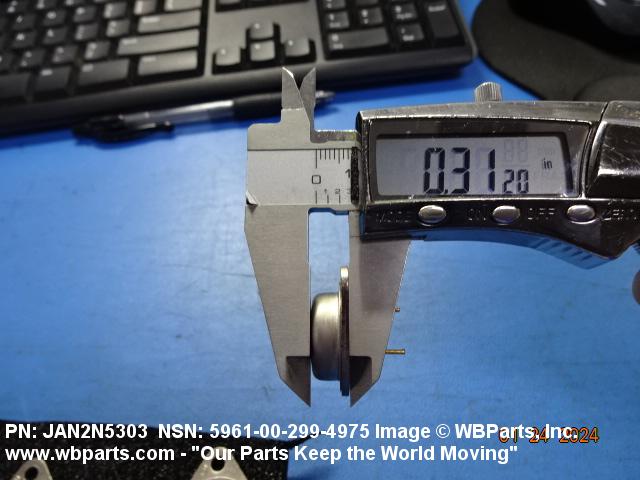

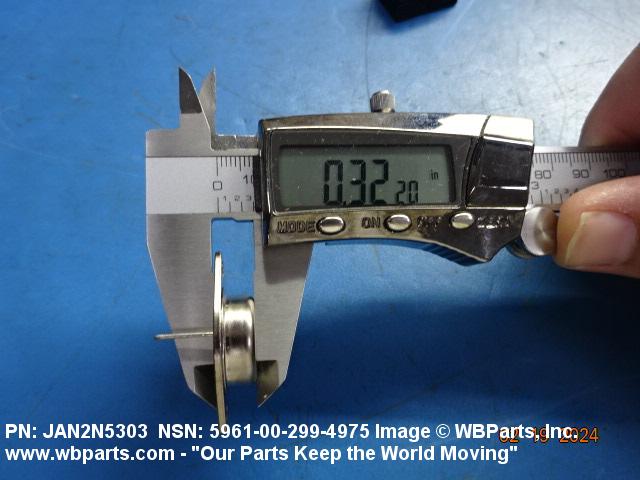

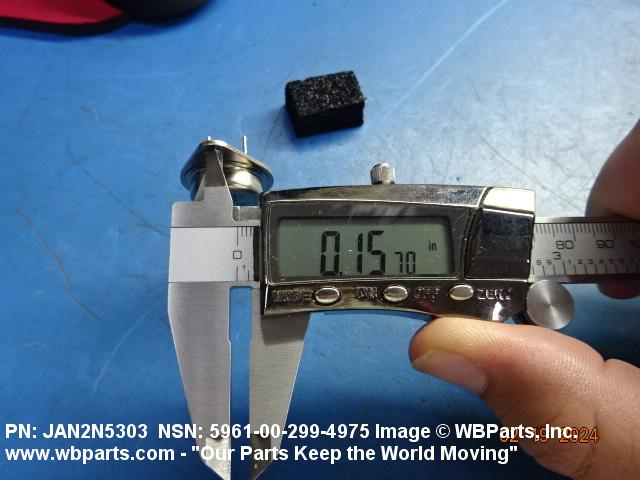

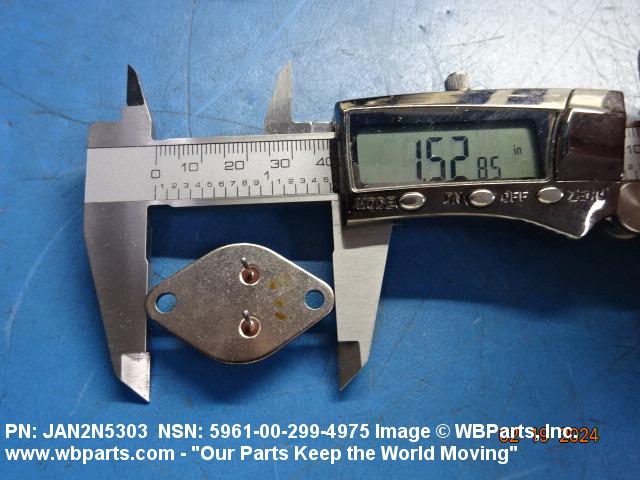

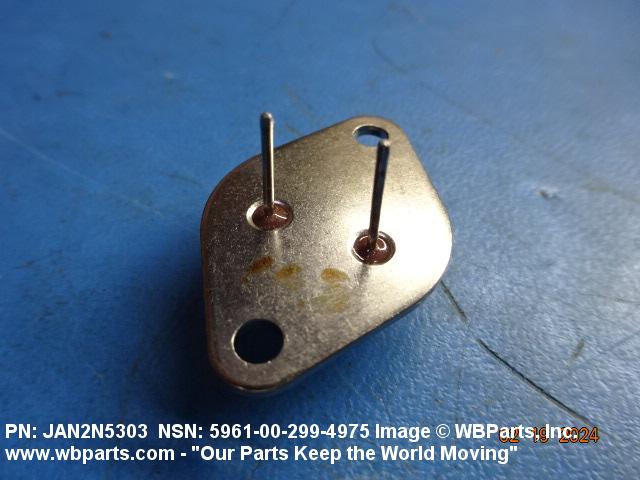

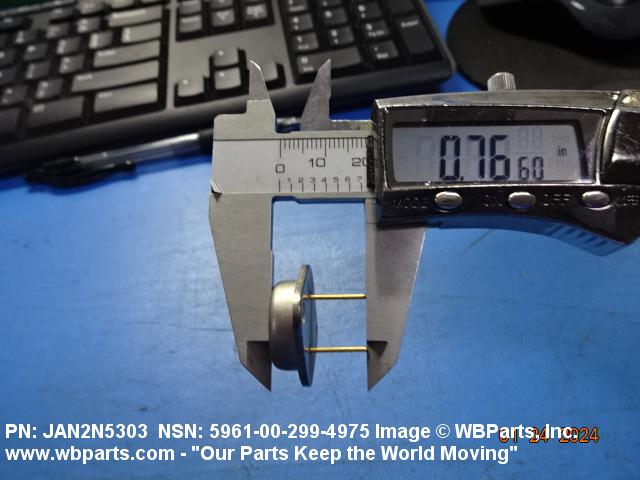

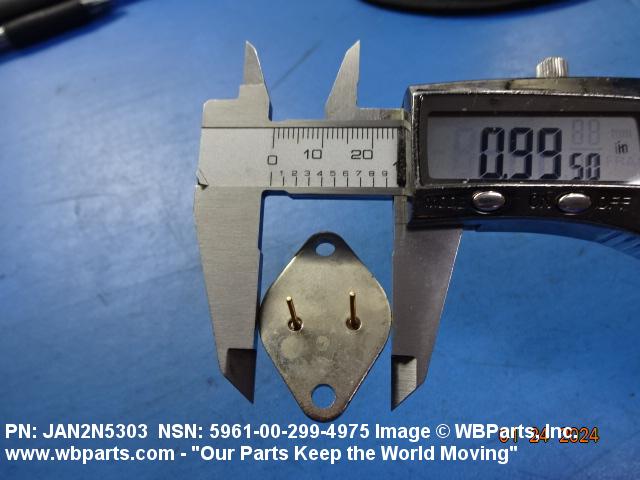

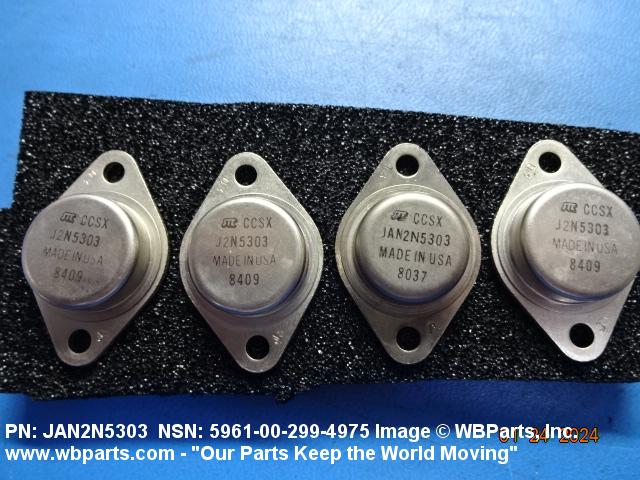

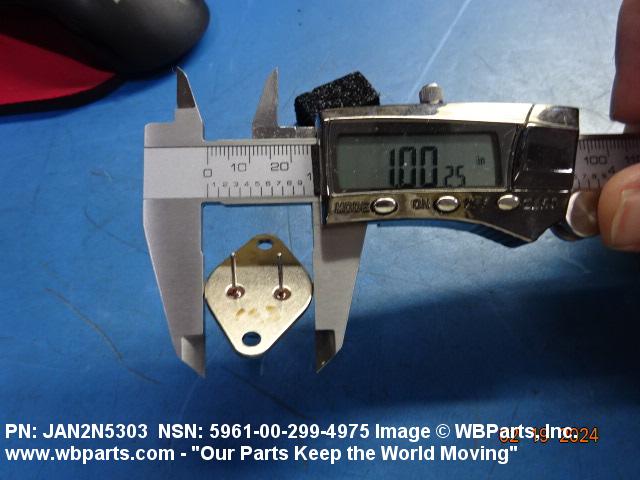

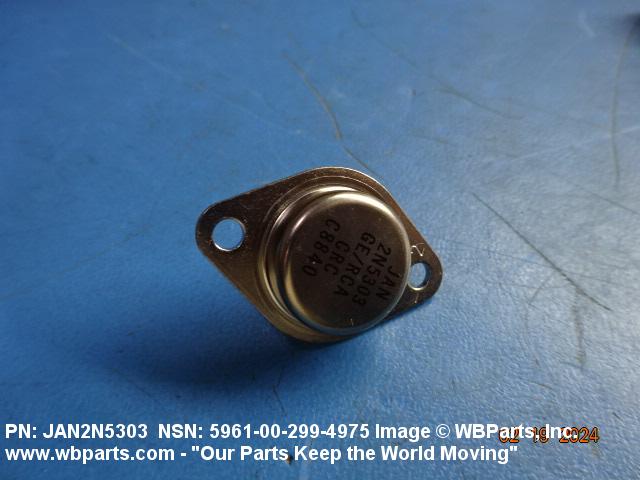

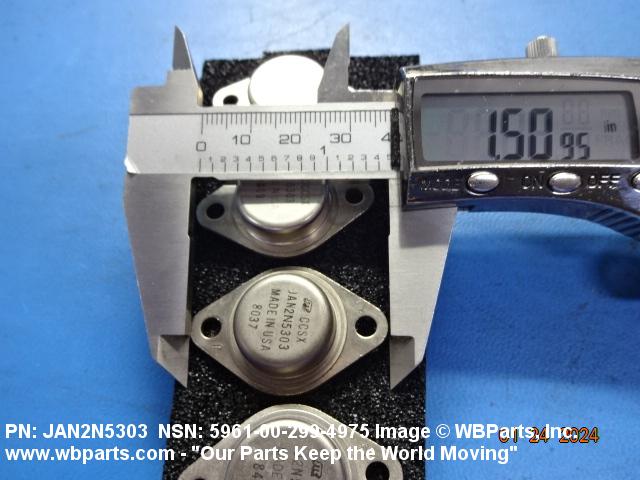

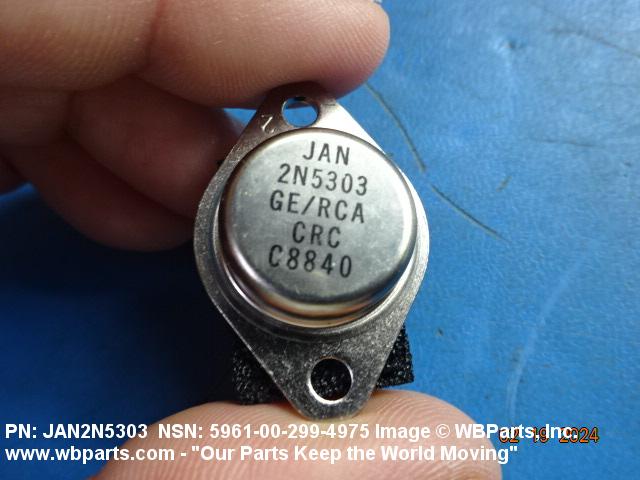

Drawings & Photos | NSN 5961-01-010-7906
Cross Reference | NSN 5961-01-010-7906
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5M.5512.222.96 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| JAN2N5303 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-19500/456 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-19500/456 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-010-7906
Related Products | NSN 5961-01-010-7906
Technical Data | NSN 5961-01-010-7906
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 5.0 MAXIMUM EMITTER TO BASE VOLTAGE, STATIC, COLLECTOR OPEN AND 80.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE/STATIC/BASE OPEN AND 80.0 MAXIMUM COLLECTOR TO BASE VOLTAGE/STATIC/EMITTER OPEN |
| CURRENT RATING PER CHARACTERISTIC | 7.50 AMPERES MAXIMUM BASE CURRENT, DC AND 20.00 AMPERES MAXIMUM COLLECTOR CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 5.0 WATTS MAXIMUM TOTAL POWER DISSIPATION |
| TRANSFER RATIO | 40.0 MAXIMUM SMALL-SIGNAL SHORT-CIRCUIT FORWARD CURRENT TRANSFER RATIO, COMMON-EMITTER |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 200.0 DEG CELSIUS AMBIENT AIR |
| INCLOSURE MATERIAL | METAL |
| ELECTRODE INTERNALLY-ELECTRICALLY CONNECTED TO CASE | COLLECTOR |
| JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION | TO-3 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| OVERALL LENGTH | 1.177 INCHES MINIMUM AND 1.197 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.270 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | JUNCTION PATTERN ARRANGEMENT: NPN |
| TEST DATA DOCUMENT | 81349-MIL-S-19500 SPECIFICATION |
| (NON-CORE DATA) SPECIFICATION/STANDARD DATA | 81349-MIL-S-19500/456 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JAN2N5303 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19500/456 |
Restrictions/Controls & Freight Information | NSN 5961-01-010-7906
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-01-010-7906
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
