NSN 5961-00-997-2844 DD116, DD1162, DD116-2
Product Details | SEMICONDUCTOR DEVICE RECTIFIER
5961-00-997-2844 Two or more interconnected SEMICONDUCTOR DEVICE (1), DIODE arranged in stack(s) for use in power supplies to change alternating current to direct current. For items containing material such as selenium or copper oxide, see RECTIFIER, METALLIC.
Part Alternates: DD116, DD1162, DD116-2, 00606296011067, 320C018G10, 5961-00-997-2844, 00-997-2844, 5961009972844, 009972844
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 APR 1967 | 00-997-2844 | 00300 ( RECTIFIER, SEMICONDUCTOR DEVICE ) |
Drawings & Photos | NSN 5961-00-997-2844
Cross Reference | NSN 5961-00-997-2844
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-00-997-2844
Technical Data | NSN 5961-00-997-2844
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICON |
| MOUNTING METHOD | UNTHREADED HOLE |

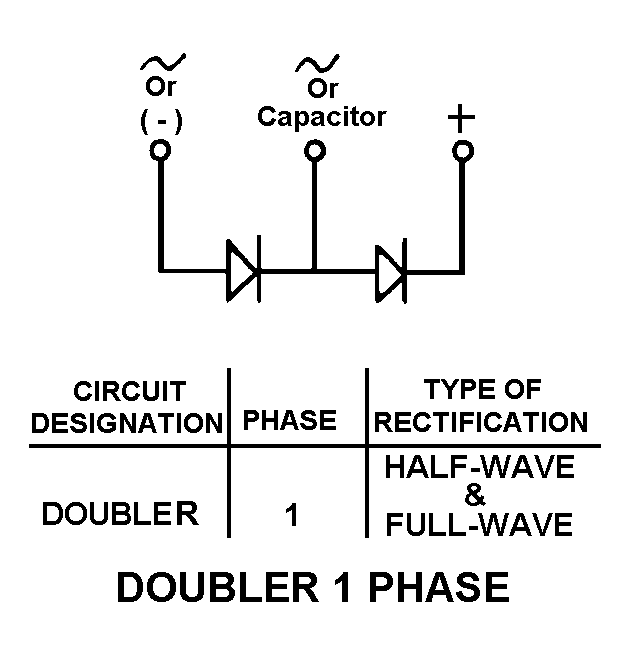

| CIRCUIT CONNECTION STYLE DESIGNATOR | 3 DOUBLER 1 PHASE |
| OVERALL LENGTH | 15.562 INCHES NOMINAL |
| OVERALL WIDTH | 3.891 INCHES NOMINAL |
| OVERALL HEIGHT | 2.062 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5961-00-997-2844
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-00-997-2844
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
