NSN 5961-00-939-4216 RELEASE4698, 2N3283, 486331
Product Details | TRANSISTOR

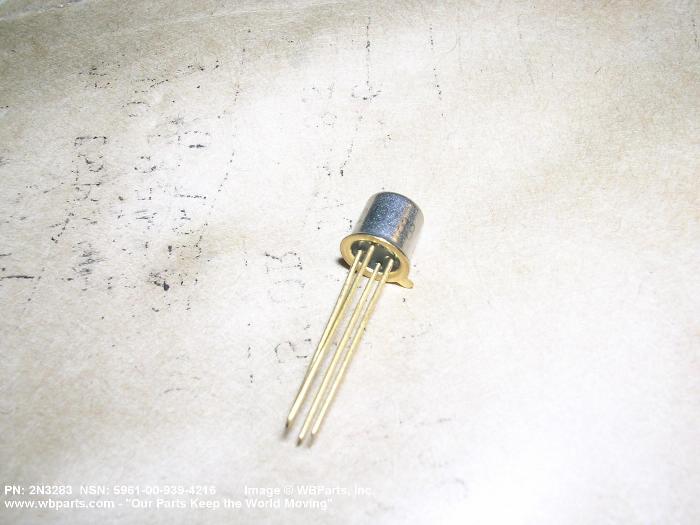

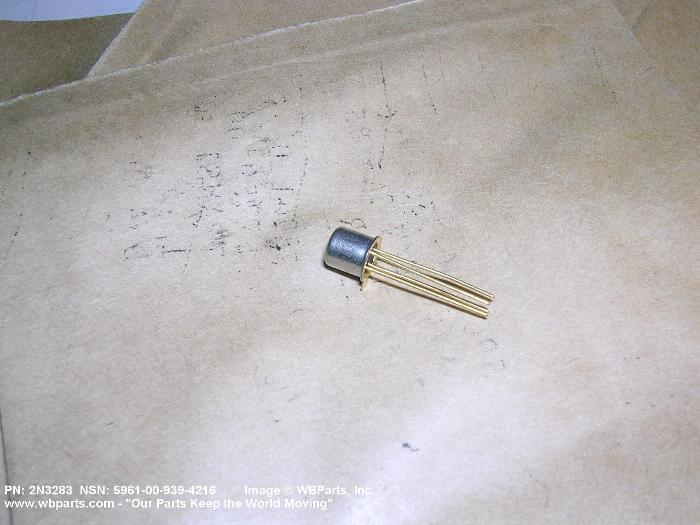

5961-00-939-4216 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: RELEASE4698, 2N3283, 486331, 48633-1, 5961-00-939-4216, 00-939-4216, 5961009394216, 009394216
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 11 MAR 1966 | 00-939-4216 | 20588 ( TRANSISTOR ) |
Demand History | NSN 5961-00-939-4216
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5961-00-939-4216 | 2007-12-347 | 1 | Spain |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5961-00-939-4216
Related Products | NSN 5961-00-939-4216
Technical Data | NSN 5961-00-939-4216
Characteristic | Specifications |
---|---|
SEMICONDUCTOR MATERIAL | GERMANIUM |
INTERNAL CONFIGURATION | JUNCTION CONTACT |
INTERNAL JUNCTION CONFIGURATION | PNP |
VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 25.0 MAXIMUM BREAKDOWN VOLTAGE, COLLECTOR-TO-BASE, EMITTER OPEN AND 25.0 MAXIMUM BREAKDOWN VOLTAGE, COLLECTOR-TO-EMITTER, BASE OPEN AND 5.0 MAXIMUM BREAKDOWN VOLTAGE, EMITTER-TO-BASE, COLLECTOR OPEN |
CURRENT RATING PER CHARACTERISTIC | 50.00 MILLIAMPERES MAXIMUM COLLECTOR CURRENT, DC |
POWER RATING PER CHARACTERISTIC | 100.0 MILLIWATTS MAXIMUM COLLECTOR POWER DISSIPATION |
MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 100.0 DEG CELSIUS JUNCTION |
INCLOSURE MATERIAL | METAL |
ELECTRODE INTERNALLY-ELECTRICALLY CONNECTED TO CASE | COLLECTOR |
MOUNTING METHOD | TERMINAL |
TERMINAL LENGTH | 0.500 INCHES MINIMUM |
TERMINAL CIRCLE DIAMETER | 0.100 INCHES NOMINAL |
TERMINAL TYPE AND QUANTITY | 3 UNINSULATED WIRE LEAD |
OVERALL LENGTH | 0.210 INCHES NOMINAL |
OVERALL DIAMETER | 0.230 INCHES NOMINAL |
FEATURES PROVIDED | HERMETICALLY SEALED CASE |
(NON-CORE DATA) SPECIFICATION/STANDARD DATA | 80131-RELEASE4698 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5961-00-939-4216
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-00-939-4216
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 3 | INSURANCE ITEMS. This code will identify items for which there may be occasional intermittent demands not sufficiently repetitive to warrant classification as regular stock items, but for which prudence requires that nominalquan tity be stocked for the reason that the essentiality of the item and the long lead time required to obtain such items by purchase would create an unacceptable situation if no stock were carried. |
Specific Group/Generic Code | Q | Avionics |
Weapons Systems/End Item or Homogeneous Group | QE | Other Avionics |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
