NSN 5961-00-450-8594 N5302, RELEASE5725, 9054991
Product Details | TRANSISTOR
5961-00-450-8594 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: N5302, RELEASE5725, 9054991, 905499-1, 0487770001, 048777-0001, 11741510, 2N5302, 2N5302A, 440016, 531-233-023, 580428, 580-428, 5961-00-450-8594, 00-450-8594, 5961004508594, 531233023, 004508594
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 DEC 1969 | 00-450-8594 | 20588 ( TRANSISTOR ) |

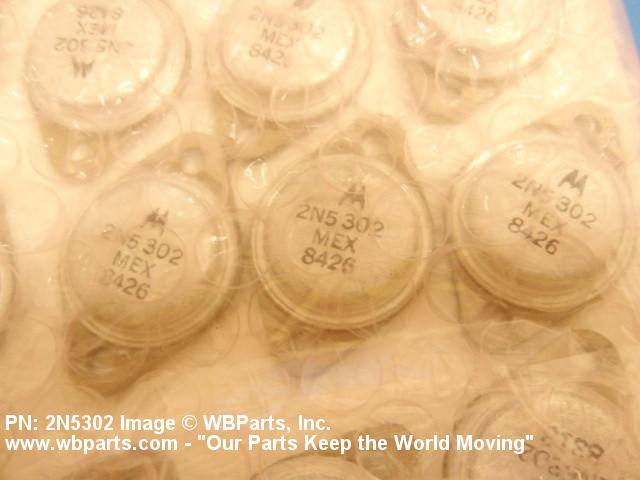

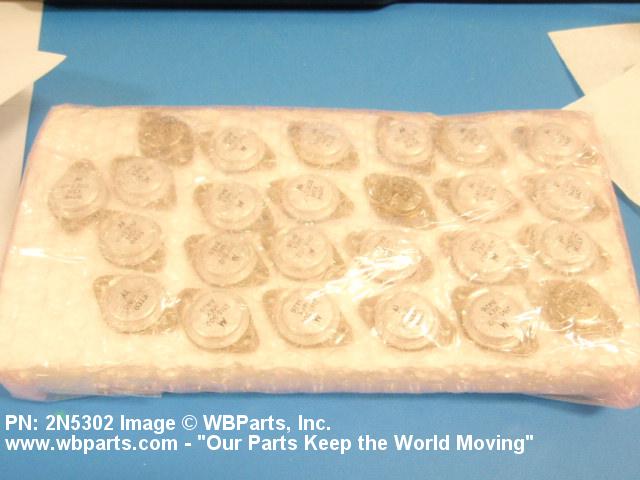

Drawings & Photos | NSN 5961-00-450-8594
Demand History | NSN 5961-00-450-8594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2N5302 | 2013-08-234 | 50 | US |
| 2N5302 | 2009-01-05 | 25 | Malaysia |
Cross Reference | NSN 5961-00-450-8594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 048777-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 11741510 | 19200 | US ARMY ARDEC RDECOM |
| 2N5302 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| 2N5302 | 80131 | ELECTRONIC INDUSTRIES ASSOCIATION |
| 2N5302 | C7191 | ADELCO ELEKTRONIK GMBH |
| 2N5302A | C7191 | ADELCO ELEKTRONIK GMBH |
| 440016 | 33642 | SYQWEST, INC. |
| 531-233-023 | A1997 | ELETTRONICA SPA |
| 531-233-023 | C3141 | ELETTRONICA GMBH |
| 580-428 | 92739 | AMPEX SYSTEMS CORP |
| 905499-1 | 05257 | GENERAL DYNAMICS CANADA LTD |
| N5302 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| RELEASE5725 | 80131 | ELECTRONIC INDUSTRIES ASSOCIATION |
