NSN 5960-00-688-9123 10034220-6, 13B22837, 13B22837E101
Product Details | ELECTRON TUBE SHIELD
5960-00-688-9123 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Part Alternates: 10034220-6, 13B22837, 13B22837E101, 21329886, 2132988-6, 5960-00-688-9123, 00-688-9123, 5960006889123, 100342206, 006889123
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-688-9123 | 10195 ( SHIELD, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-688-9123
Cross Reference | NSN 5960-00-688-9123
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-00-688-9123
Technical Data | NSN 5960-00-688-9123
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |
| SURFACE TREATMENT | NICKEL AND OXIDE |

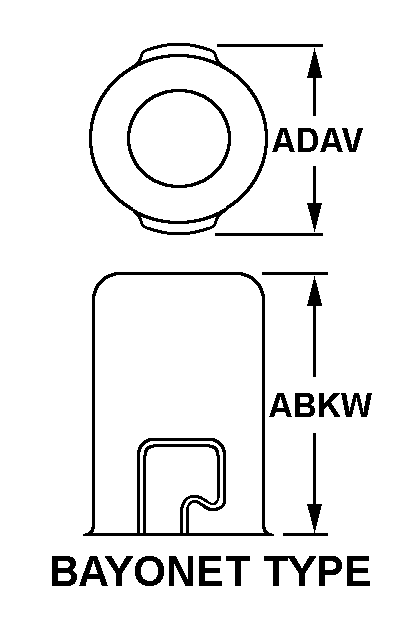

| STYLE DESIGNATOR | 22A BAYONET TYPE |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL DIAMETER | 1.065 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 TWIST LOCK SINGLE MOUNTING FACILITY |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T6 1-2 6-2 |
Restrictions/Controls & Freight Information | NSN 5960-00-688-9123
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
