Product Details | ELECTRON TUBE SHIELD

5960-00-686-8603 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).

Part Alternates: T122037NH, T12-2037NH, 0753, 5960-00-686-8603, 00-686-8603, 5960006868603, 006868603

Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-686-8603

Drawings & Photos | NSN 5960-00-686-8603


Demand History | NSN 5960-00-686-8603

Part Number Request Date QTY Origin
0753 2012-06-172 1 PR

Cross Reference | NSN 5960-00-686-8603

Part Number Cage Code Manufacturer
0753 06KW9 LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
0753 3B4M0 LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS
0753 64959 AMERICAN TELEPHONE AND TELEGRAPH CO
0753 70408 AT AND T CORP
0753 92674 A T AND T TECNOLOGIES INC SUB OF AMERICAN TELEPHONE AND
0753 98978 CTS ELECTRONIC COMPONENTS CALIFORNIA INC
T12-2037NH 98978 CTS ELECTRONIC COMPONENTS CALIFORNIA INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5960-00-686-8603

Technical Data | NSN 5960-00-686-8603

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 6061 AND COPPER ALLOY 170
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-200 FED SPEC 1ST MATERIAL RESPONSE AND QQ-C-533 FED SPEC 2ND MATERIAL RESPONSE

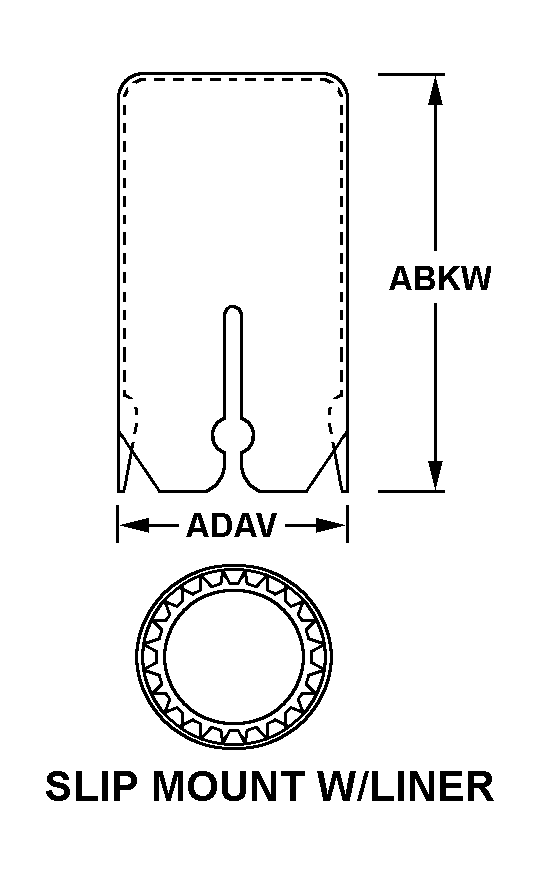

STYLE DESIGNATOR 26A SLOT MOUNT W/LINER
OVERALL HEIGHT 3.750 INCHES NOMINAL
OVERALL DIAMETER 1.750 INCHES NOMINAL
ACCOMMODATED ITEM SECURING DEVICE TYPE FRICTION FASTENER
MOUNTING FACILITY TYPE AND QUANTITY 1 FRICTION SINGLE MOUNTING FACILITY
TUBE ENVELOPE ACCOMMODATED MAXIMUM DIAMETER 1.700 INCHES
MANUFACTURERS CODE 98978
DESIGN CONTROL REFERENCE T12-2037NH

Restrictions/Controls & Freight Information | NSN 5960-00-686-8603

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062800 RADIO/TV RECEIVING SET CHASSIS ETC
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 72D unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5960-00-686-8603

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesXSEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
