NSN 5960-00-646-4615 SMB2095453, SMB209545-3, TS102U03
Product Details | ELECTRON TUBE SHIELD
5960-00-646-4615 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Part Alternates: SMB2095453, SMB209545-3, TS102U03, JANS28, 3081001P12, 308-1001P12, 72-290461-3, 83041942Z, 5960-00-646-4615, 00-646-4615, 5960006464615, 006464615, 722904613
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-646-4615 | 10195 ( SHIELD, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-646-4615
Cross Reference | NSN 5960-00-646-4615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 308-1001P12 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 308-1001P12 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 72-290461-3 | 06163 | EAC INDUSTRIES INC IDEAL SECURITY HARDWARE DIV |
| 83041942Z | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| JANS28 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| SMB209545-3 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| TS102U03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TS102U03 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-00-646-4615
Technical Data | NSN 5960-00-646-4615
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

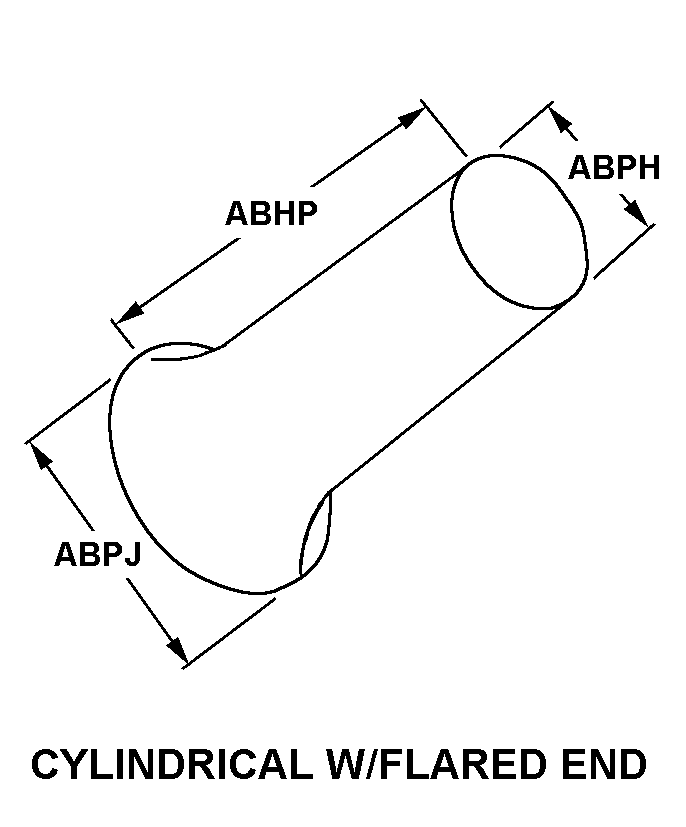

| STYLE DESIGNATOR | 5C CYLINDRICAL W/FLARED END |
