Product Details | ELECTRON TUBE SHIELD

5960-00-417-7230 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).

Part Alternates: SB980, T3A424FP, 5960-00-417-7230, 00-417-7230, 5960004177230, 004177230

Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware

Supply Group (FSG) NSN Assign. NIIN
59 25 NOV 1970 00-417-7230

Drawings & Photos | NSN 5960-00-417-7230


Cross Reference | NSN 5960-00-417-7230

Part Number Cage Code Manufacturer
SB980 51283 TECHNICAL SERVICES LABORATORY, INC. DBA TSL-REICO
SB980 60590 AIKEN ADVANCED SYSTEMS INC A DIV OF AMSTAR TECHNICAL PRODUCTS
T3A424FP 98978 CTS ELECTRONIC COMPONENTS CALIFORNIA INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5960-00-417-7230

Technical Data | NSN 5960-00-417-7230

Characteristic Specifications
MATERIAL ALUMINUM ALLOY

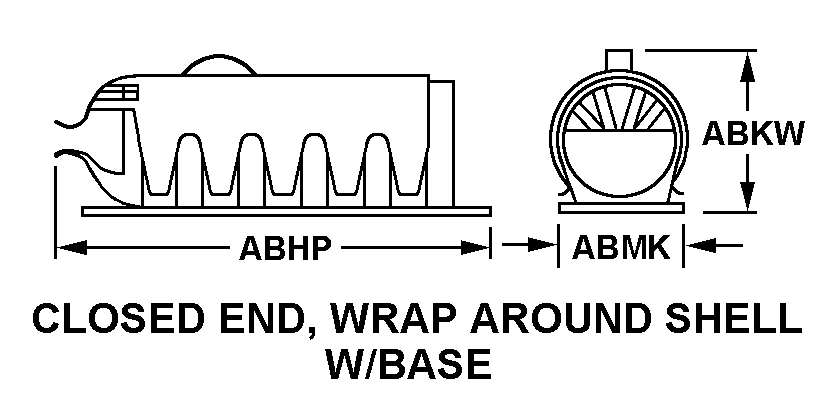

STYLE DESIGNATOR 14A CLOSED END, WRAP AROUND SHELL W/BASE
OVERALL LENGTH 1.500 INCHES MAXIMUM
OVERALL HEIGHT 0.500 INCHES MAXIMUM
OVERALL WIDTH 0.440 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER 0.078 INCHES MAXIMUM SINGLE MOUNTING FACILITY
DISTANCE BETWEEN MOUNTING FACILITY CENTERS 1.312 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
EIA ELECTRON TUBE ENVELOPE ACCOMMODATED T3-6
MANUFACTURERS CODE 98978
DESIGN CONTROL REFERENCE T3A424FP
