NSN 5955-00-989-7301 ER0151P0214D, ER0-15-1-P0214D, P0214
Product Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-989-7301 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.20259550038Oscillators and Piezoelectric Crystals59990050Miscellaneous Electrical and Electronic Components
Part Alternates: ER0151P0214D, ER0-15-1-P0214D, P0214, P0-214, 00606296015652, 5955-00-989-7301, 00-989-7301, 5955009897301, 009897301
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-989-7301 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5955-00-989-7301
Cross Reference | NSN 5955-00-989-7301
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-00-989-7301
Technical Data | NSN 5955-00-989-7301
| Characteristic | Specifications |
|---|---|

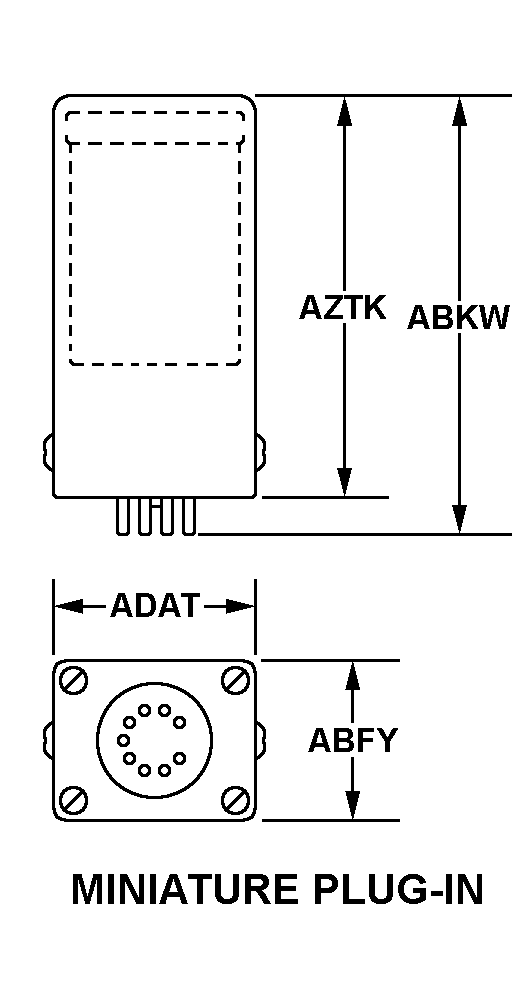

| STYLE DESIGNATOR | 9A MINIATURE PLUG-IN |
| OVERALL DEPTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.719 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| BODY OVERALL HEIGHT | 1.438 INCHES NOMINAL |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 2 CRYSTAL |
| FURNISHED CRYSTAL UNIT SPECIFIED FREQUENCY | 250.000 HERTZ AND 705.000 HERTZ |
| CRYSTAL HOLDER DESIGNATOR | HC-6/U |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 75.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -2.0 TO 2.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 6.3 AC NOMINAL AND 6.3 DC NOMINAL |
| TERMINAL TYPE AND QUANTITY | 7 PLUG |
| MANUFACTURERS CODE | 82679 |
| DESIGN CONTROL REFERENCE | P0214 |
