NSN 5955-00-951-8025 292-0211-00, 2920211000, 292-0211-000
Product Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-951-8025 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.20259550038Oscillators and Piezoelectric Crystals59990050Miscellaneous Electrical and Electronic Components
Part Alternates: 292-0211-00, 2920211000, 292-0211-000, 5955-00-951-8025, 00-951-8025, 5955009518025, 292021100, 009518025
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-951-8025 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |

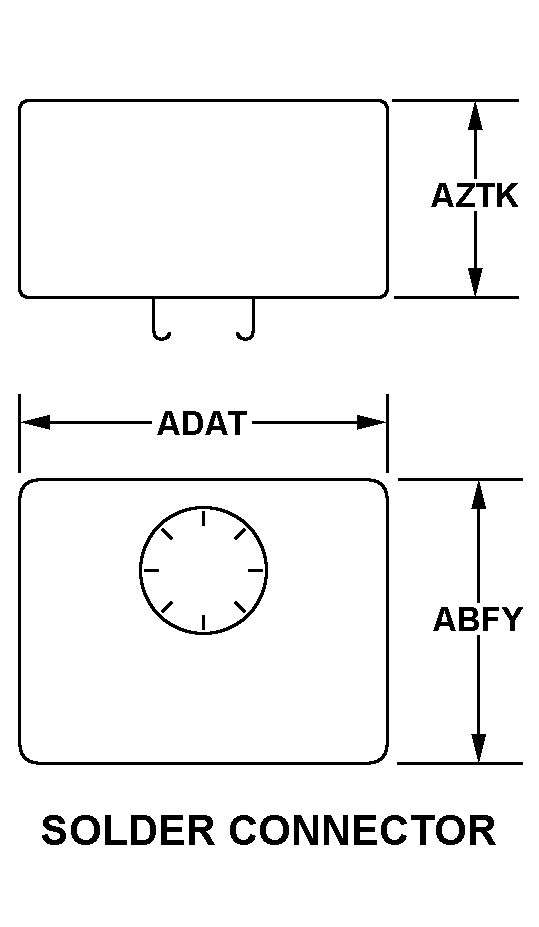

Drawings & Photos | NSN 5955-00-951-8025
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-00-951-8025
Technical Data | NSN 5955-00-951-8025
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1A SOLDER CONNECTED |
| OVERALL DEPTH | 4.313 INCHES NOMINAL |
| BODY WIDTH | 1.313 INCHES NOMINAL |
| BODY OVERALL HEIGHT | 0.813 INCHES NOMINAL |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 15 CRYSTAL |
| CRYSTAL HOLDER DESIGNATOR | HC-18/U |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 85.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -3.0 TO 3.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 27.5 DC NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 4.000 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| WIRE LEAD LENGTH | 1.375 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5955-00-951-8025
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
