NSN 5955-00-823-5385 26050053, 2605005-3, 4ST11
Product Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-823-5385 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.20259550038Oscillators and Piezoelectric Crystals59990050Miscellaneous Electrical and Electronic Components
Part Alternates: 26050053, 2605005-3, 4ST11, 4ST1-1, 5375873, 537587-3, 822, 82-2, 5955-00-823-5385, 00-823-5385, 5955008235385, 008235385
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 AUG 1967 | 00-823-5385 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |

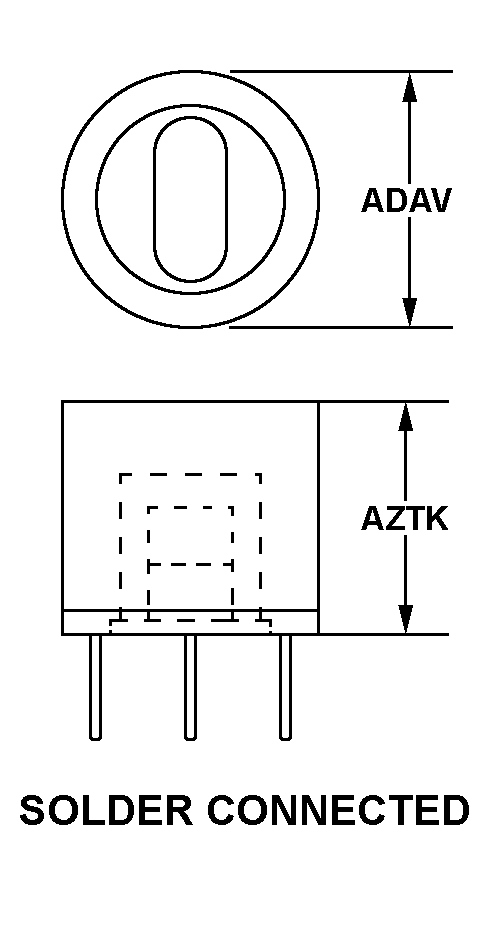

Drawings & Photos | NSN 5955-00-823-5385
Cross Reference | NSN 5955-00-823-5385
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2605005-3 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS |
| 4ST1-1 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| 4ST1-1 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| 4ST1-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 537587-3 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 82-2 | 88869 | EATON CORP ELECTRONIC INSTRUMENTATION DIV |
