NSN 5950-01-059-8704 C88521, C8852-1, 3211383201

Product Details | AUDIO FREQUENCY TRANSFORMER

5950-01-059-8704 A transformer which is designed so that part or all of its range of operating frequencies is 20 kilohertz (kilocycles) and below. The maximum value may extend into the radio frequency range. It is generally used in the input, output, amplifier, or oscillator stages of audio and sonar devices.

Part Alternates: C88521, C8852-1, 3211383201, 321-13832-01, 5950-01-059-8704, 01-059-8704, 5950010598704, 010598704

Electrical and Electronic Equipment Components | Coils and Transformers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	03 MAY 1978	01-059-8704	00780 ( TRANSFORMER, AUDIO FREQUENCY )

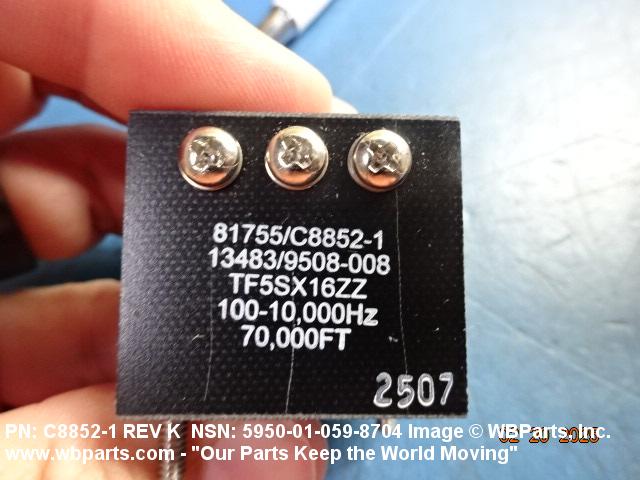

Drawings & Photos | NSN 5950-01-059-8704

Part Number	Request Date	QTY	Origin
C88521	2024-01-31	14	US
C88521	2024-01-19	14	US
321-13832-01	2022-03-90	47	DIBBS
9508-008	2022-03-90	47	DIBBS
321-13832-01	2021-07-194	40	DIBBS
5950-01-059-8704	2021-05-144	50	Taiwan
C88521	2020-05-135	6	US
5950-01-059-8704	2020-04-94	3	United States
C88521	2020-04-94	3	United States
321-13832-01	2019-04-108	33	DIBBS
5950-01-059-8704	2018-08-243	1	United States
5950-01-059-8704	2018-03-87	1	TR
5950-01-059-8704	2015-11-323	1	US
C88521	2013-07-190	1	United States
5950-01-059-8704	2013-07-185	88	DIBBS
5950-01-059-8704	2013-06-168	1	United States
5950-01-059-8704	2013-06-168	2	United States
5950-01-059-8704	2013-05-121	90	DIBBS
5950-01-059-8704	2013-03-73	14	DIBBS
5950-01-059-8704	2012-12-352	100	US
5950-01-059-8704	2012-11-334	18	DIBBS
5950-01-059-8704	2012-08-244	47	DIBBS
5950-01-059-8704	2012-05-152	17	DIBBS
5950-01-059-8704	2012-03-90	21	DIBBS
C88521	2011-06-153	4	United States
5950-01-059-8704	2011-04-117	9	United States
5950-01-059-8704	2011-02-59	1	US
5950-01-059-8704	2011-02-39	14	DIBBS
5950-01-059-8704	2011-01-10	10	DIBBS
5950-01-059-8704	2008-12-340	7	DIBBS
5950-01-059-8704	2007-12-338	45	DIBBS
5950-01-059-8704	2007-06-157	19	DIBBS
5950-01-059-8704	2006-04-103	23	DIBBS
5950-01-059-8704	2006-02-39	16	DIBBS

Cross Reference | NSN 5950-01-059-8704

Part Number	Cage Code	Manufacturer
321-13832-01	95266	OECO, LLC DBA PACIFIC SCIENTIFIC OECO
C8852-1	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5950-01-059-8704

Compare

Related Products | NSN 5950-01-059-8704

5950-01-059-8705, 5950-01-059-8706, 5950-01-059-8707, 5950-01-059-8708, 5950-01-059-8868

Technical Data | NSN 5950-01-059-8704

Characteristic	Specifications

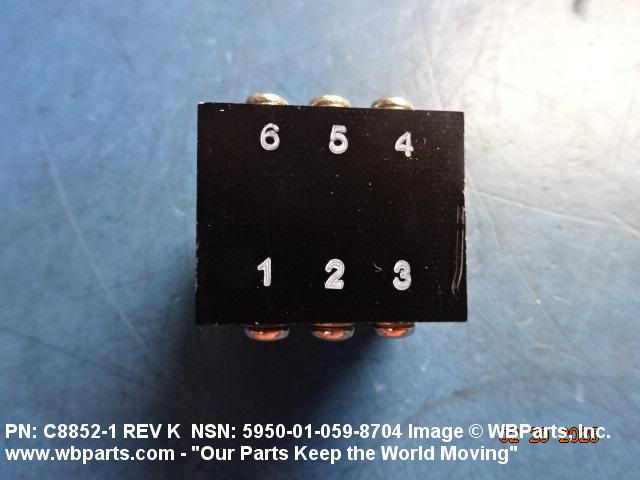

TERMINAL TYPE AND QUANTITY	6 STANDOFF, SCREW

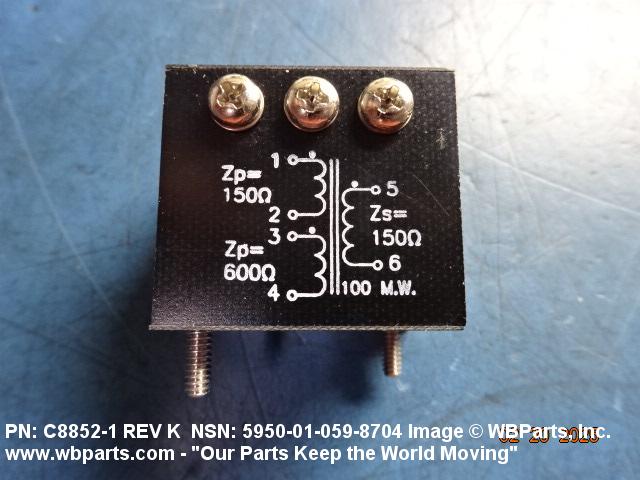

IMPEDANCE RATING IN OHMS	150.0 NOMINAL SINGLE COMPONENT 1ST PRIMARY 600.0 NOMINAL SINGLE COMPONENT 2ND PRIMARY 150.0 NOMINAL SINGLE COMPONENT SINGLE SECONDARY
(NON-CORE DATA) FREQUENCY RESPONSE TOLERANCE IN DECIBELS	-1.0 TO 1.0 SINGLE COMPONENT
MAXIMUM TRANSFORMER POWER RATING	100.0 MILLIWATTS SINGLE COMPONENT
WINDING SHIELDING METHOD	EXTERNAL INCLOSURE SINGLE COMPONENT
WINDING FUNCTION AND QUANTITY	2 PRIMARY AND 1 SECONDARY SINGLE COMPONENT

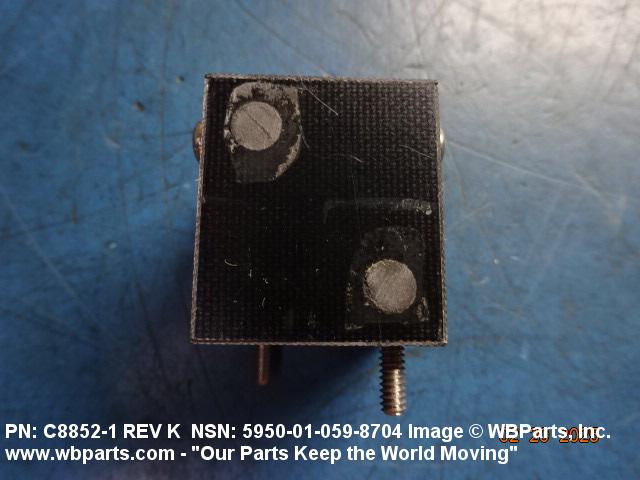

MOUNTING METHOD	THREADED STUD SINGLE GROUP
MOUNTING FACILITY QUANTITY	2 SINGLE GROUP
THREAD SERIES DESIGNATOR	UNC SINGLE GROUP
NOMINAL THREAD SIZE	0.138 INCHES SINGLE GROUP
THREAD QUANTITY PER INCH	32 SINGLE GROUP
(NON-CORE DATA) THREAD CLASS	2A SINGLE GROUP
INCLOSURE TYPE	FULLY INCLOSED

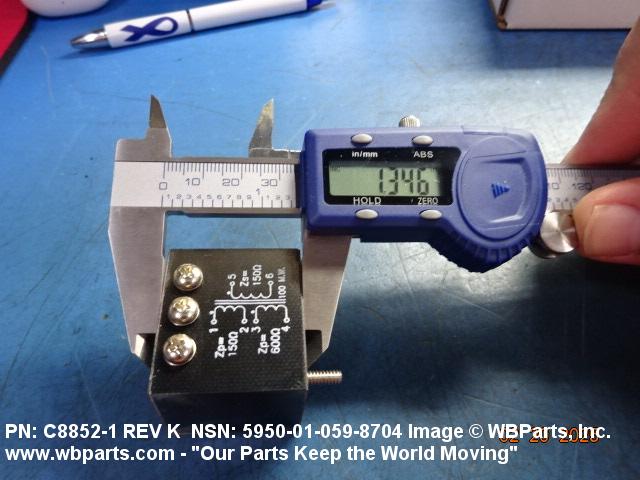

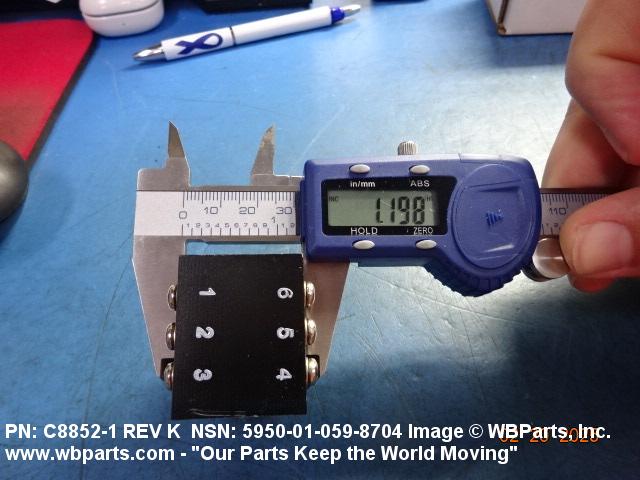

BODY LENGTH	1.620 INCHES NOMINAL
BODY HEIGHT	1.370 INCHES NOMINAL
BODY WIDTH	1.250 INCHES NOMINAL
III MAXIMUM OPERATING TEMP	130.0 DEG CELSIUS

Restrictions/Controls & Freight Information | NSN 5950-01-059-8704

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063420	TRANSFORMERS,NOI,OR TRANSFORMER PAR
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	595	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5950-01-059-8704

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Materiel Management Aggregation Code	WF	SU:F-16 AIR COMBAT FIGHTER
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
