NSN 5950-00-899-8480 193A9636G6, 50690, 00-899-8480

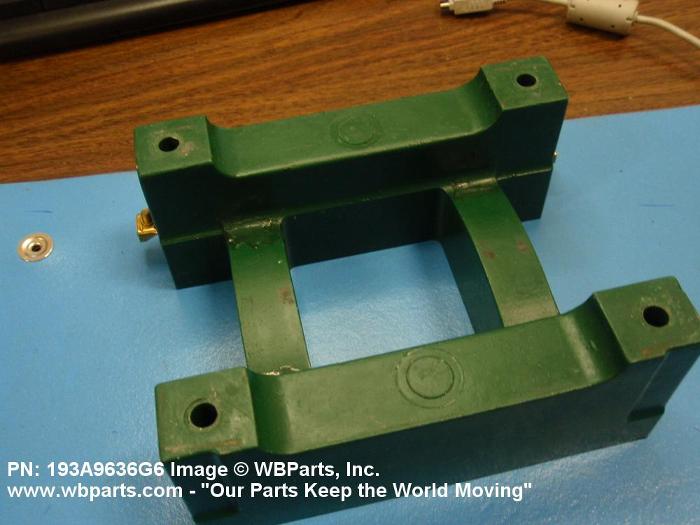

Product Details | ELECTRICAL COIL
5950-00-899-8480 An item generally consisting of one or more turns of wire or similar conductive material (in special cases it may be considered as a partial turn). It is specifically designed to concentrate magnetic flux generated by the flow of an electric current, to induce in itself an electromotive force, and to add or subtract inductive reactance in a circuit. It may include tuning devices, integral resistors and capacitors; however, excludes FILTER (as modified). For coils wound on resistors which are designed to be inserted into the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see SUPPRESSOR, PARASITIC..
Part Alternates: 193A9636G6, 50690, 5950-00-899-8480, 00-899-8480, 5950008998480, 008998480
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 FEB 1967 | 00-899-8480 | 32494 ( COIL, ELECTRICAL ) |

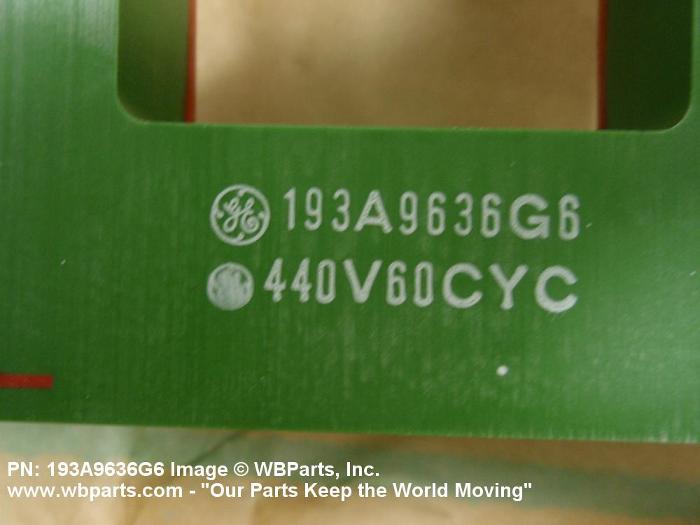

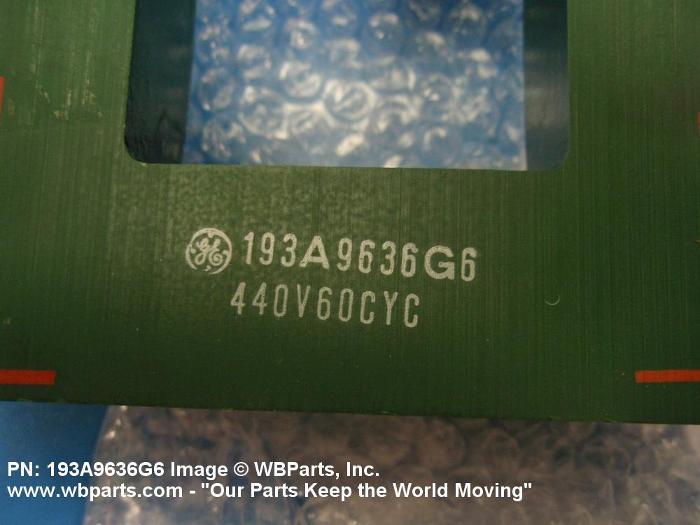

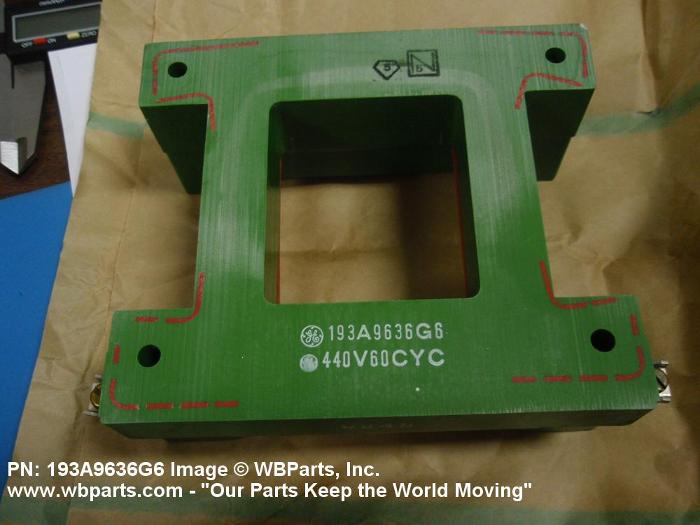

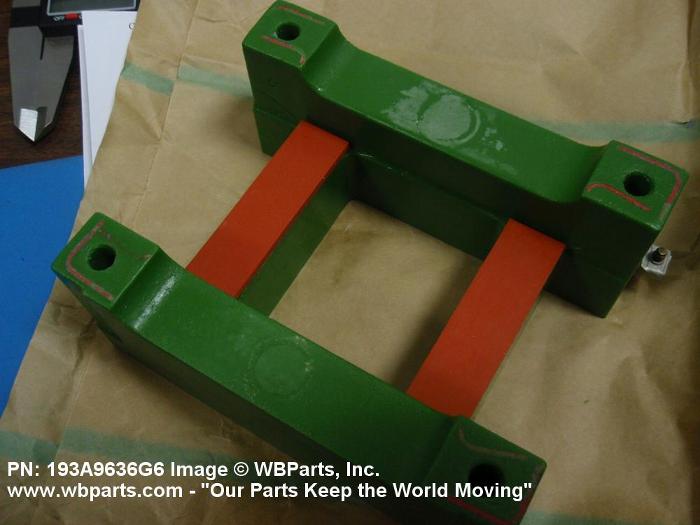

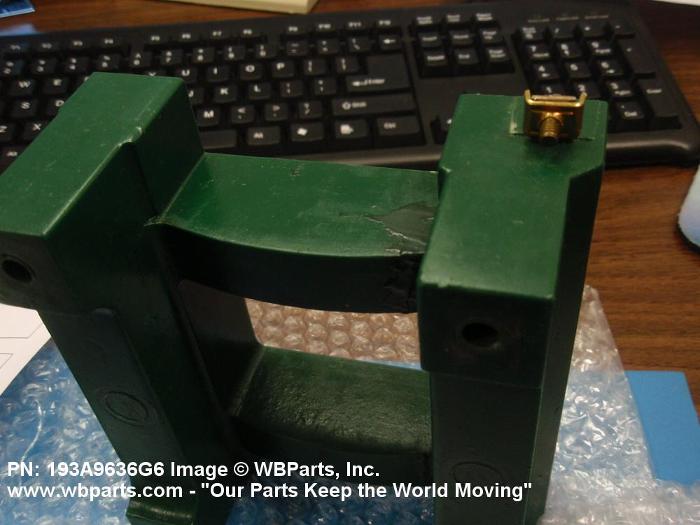

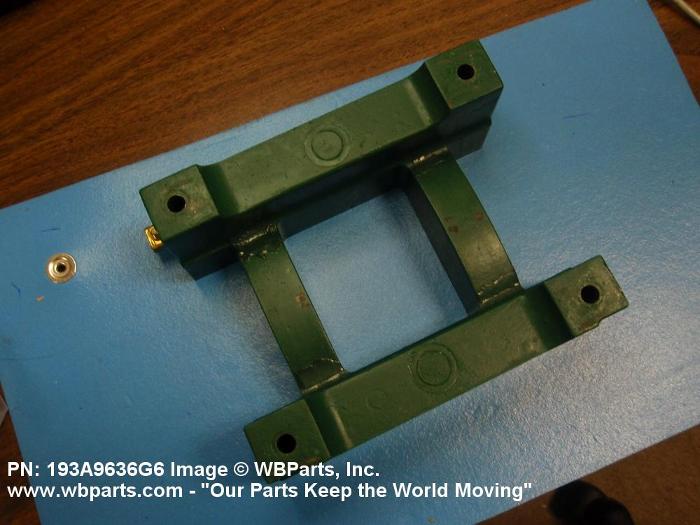

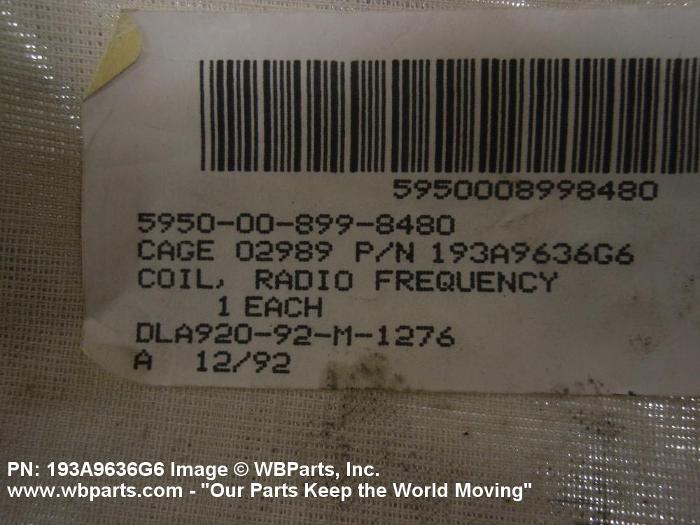

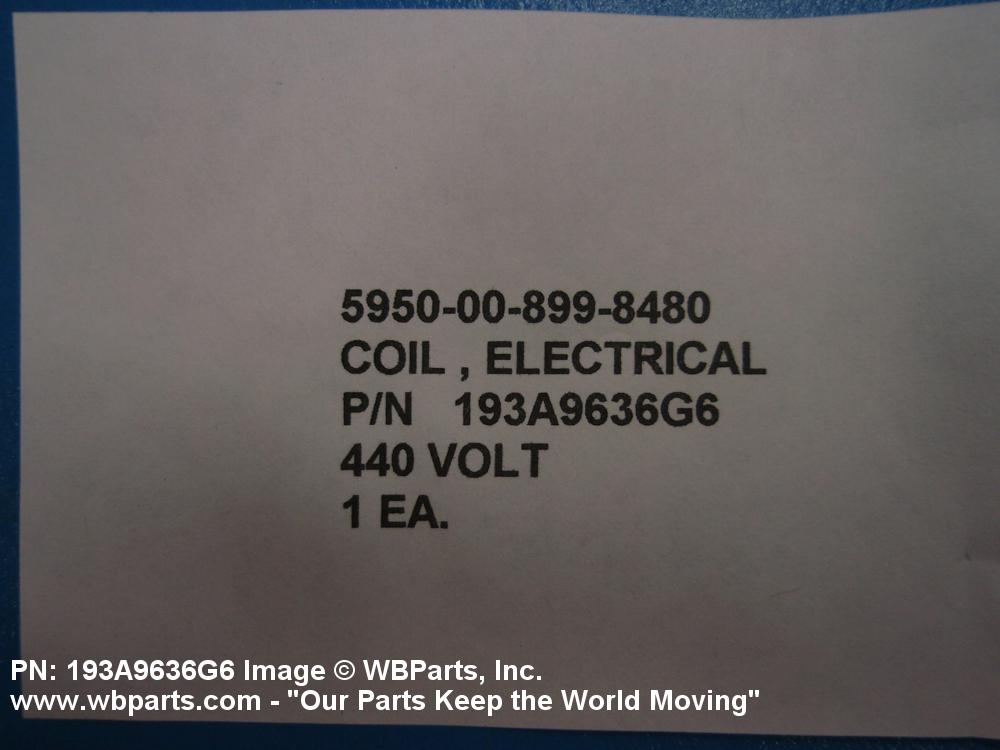

Drawings & Photos | NSN 5950-00-899-8480
Demand History | NSN 5950-00-899-8480
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 193A9636G6 | 2024-11-318 | 25 | DIBBS |
| 50690 | 2024-11-318 | 25 | DIBBS |
| 193A9636G6 | 2024-05-123 | 17 | DIBBS |
| 50690 | 2024-05-123 | 17 | DIBBS |
| 193A9636G6 | 2022-08-223 | 21 | DIBBS |
| 50690 | 2022-08-223 | 21 | DIBBS |
| 193A9636G6 | 2022-07-192 | 21 | DIBBS |
| 50690 | 2022-07-192 | 21 | DIBBS |
| 193A9636G6 | 2022-06-181 | 21 | DIBBS |
| 50690 | 2022-06-181 | 21 | DIBBS |
| 193A9636G6 | 2022-04-102 | 17 | DIBBS |
| 50690 | 2022-04-102 | 17 | DIBBS |
| 193A9636G6 | 2021-05-123 | 9 | DIBBS |
| 50690 | 2021-05-123 | 9 | DIBBS |
| 193A9636G6 | 2021-04-119 | 3 | DIBBS |
| 50690 | 2021-04-119 | 3 | DIBBS |
| 193A9636G6 | 2021-04-108 | 9 | DIBBS |
| 50690 | 2021-04-108 | 9 | DIBBS |
| 193A9636G6 | 2021-04-98 | 3 | DIBBS |
| 50690 | 2021-04-98 | 3 | DIBBS |
| 5950-00-899-8480 | 2018-06-162 | 32 | DIBBS |
| 5950-00-899-8480 | 2018-05-151 | 32 | DIBBS |
| 5950-00-899-8480 | 2017-07-198 | 18 | DIBBS |
| 5950-00-899-8480 | 2015-04-103 | 22 | DIBBS |
| 5950-00-899-8480 | 2015-04-92 | 22 | DIBBS |
| 5950-00-899-8480 | 2013-04-104 | 19 | DIBBS |
| 5950-00-899-8480 | 2013-01-14 | 4 | DIBBS |
| 5950-00-899-8480 | 2011-06-161 | 9 | DIBBS |
| 5950-00-899-8480 | 2011-04-91 | 2 | United States |
| 5950-00-899-8480 | 2011-03-63 | 10 | DIBBS |
| 5950-00-899-8480 | 2011-01-08 | 2 | DIBBS |
| 5950-00-899-8480 | 2010-12-354 | 2 | DIBBS |
| 5950-00-899-8480 | 2009-11-308 | 5 | DIBBS |
| 5950-00-899-8480 | 2009-10-303 | 10 | DIBBS |
| 5950-00-899-8480 | 2009-04-96 | 5 | DIBBS |
| 5950-00-899-8480 | 2009-02-56 | 4 | DIBBS |
| 5950-00-899-8480 | 2006-01-20 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-899-8480
Technical Data | NSN 5950-00-899-8480
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| RATING METHOD | ELECTRICAL AND WINDING TURNS SINGLE COMPONENT SINGLE WINDING |
| TURN QUANTITY | 480 SINGLE COMPONENT SINGLE WINDING |
| WINDING CONDUCTOR SIZE | 0.03020 INCHES AMERICAN WIRE GAGE SINGLE COMPONENT SINGLE WINDING |
| WINDING OPERATING VOLTAGE | 440.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE WINDING |
| WINDING OPERATING CURRENT | 136.4 MILLIAMPERES AC MAXIMUM SINGLE COMPONENT SINGLE WINDING |
| DC RESISTANCE RATING IN OHMS | 6.400 SINGLE COMPONENT SINGLE WINDING |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING QUANTITY | 1 SINGLE COMPONENT |
| MOUNTING METHOD | TERMINAL SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 0.750 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
