Product Details | COIL SHIELD
5950-00-813-2396 An item specifically designed to be placed around a coil for the purpose of shielding against electrical or mechanical interference. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Part Alternates: 625201, 5950-00-813-2396, 00-813-2396, 5950008132396, 008132396
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-813-2396 | 00873 ( SHIELD, COIL ) |
Drawings & Photos | NSN 5950-00-813-2396
Cross Reference | NSN 5950-00-813-2396
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 625201 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-813-2396
Technical Data | NSN 5950-00-813-2396
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |

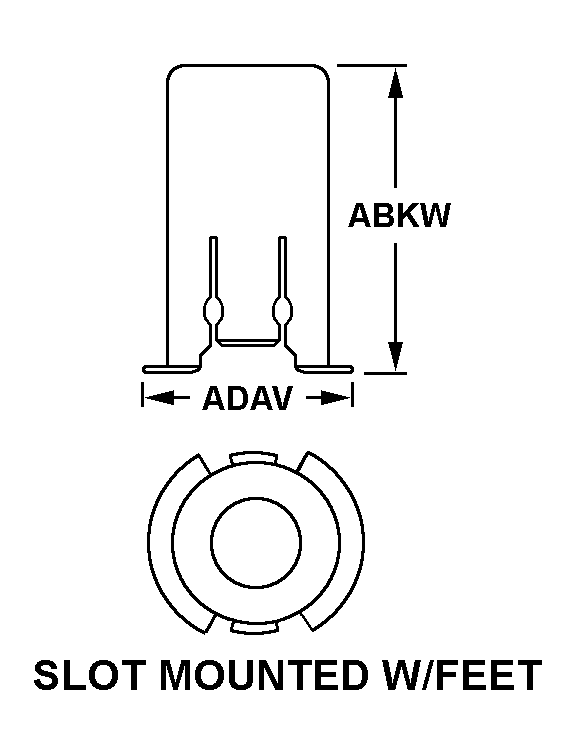

| STYLE DESIGNATOR | 16A SLOT MOUNTED W/FEET |
