NSN 5950-00-552-0823 R-43C, R43C, 00-552-0823
Product Details | POWER TRANSFORMER
5950-00-552-0823 A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see TRANSFORMER (1), POWER, AUTOTRANSFORMER. Excludes TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station
Part Alternates: R-43C, R43C, 5950-00-552-0823, 00-552-0823, 5950005520823, 005520823
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-552-0823 | 32496 ( TRANSFORMER, POWER ) |

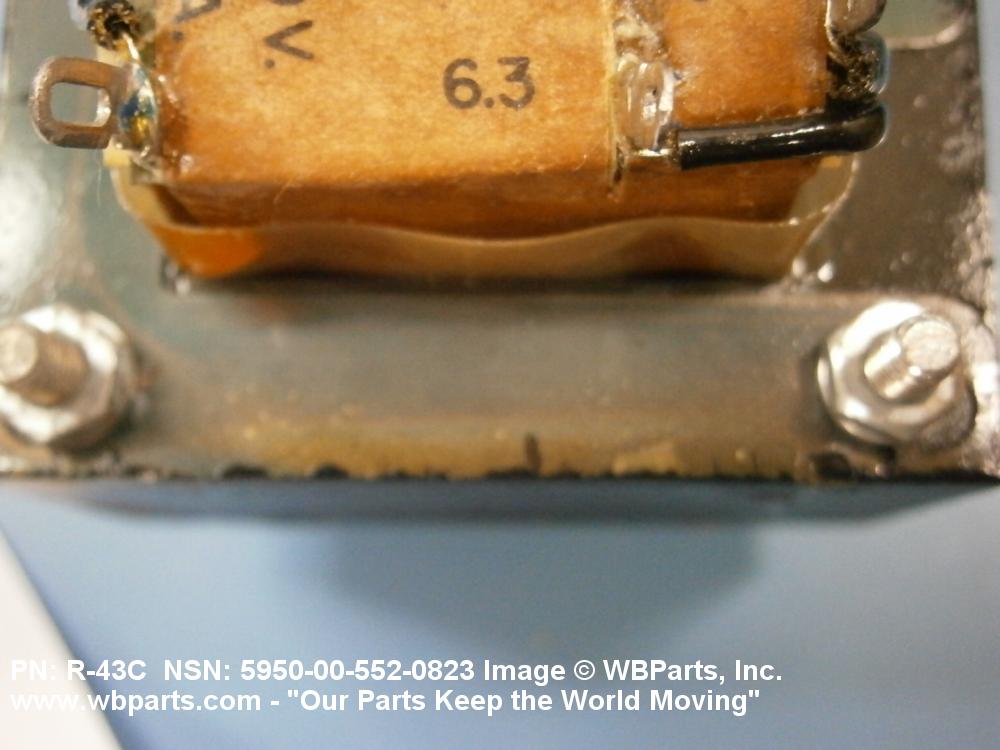

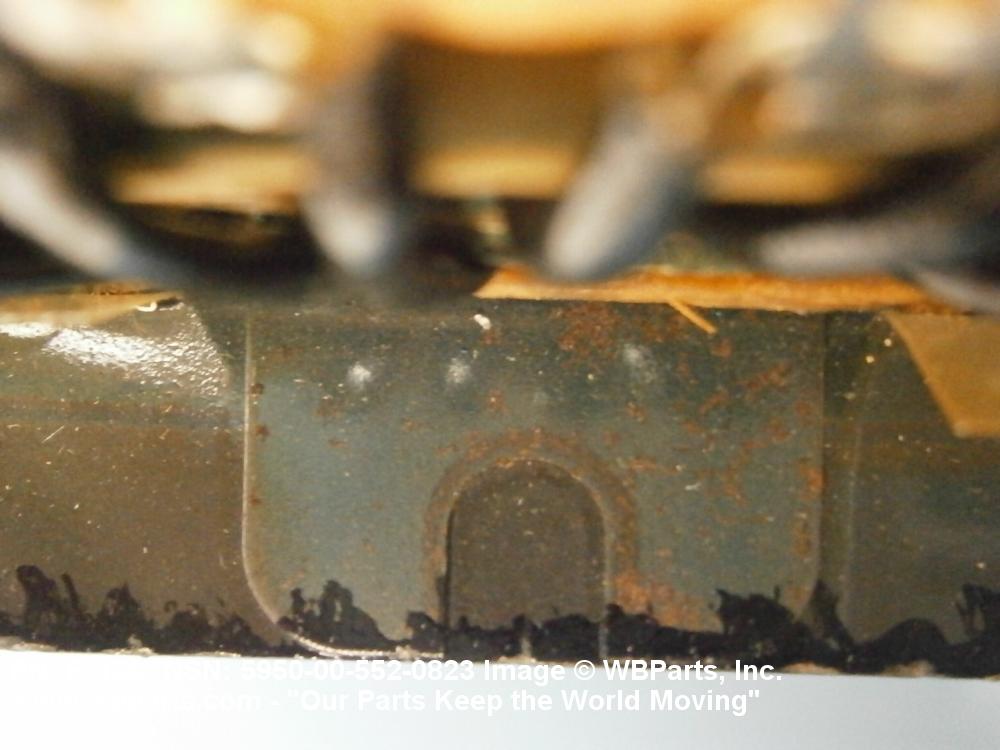

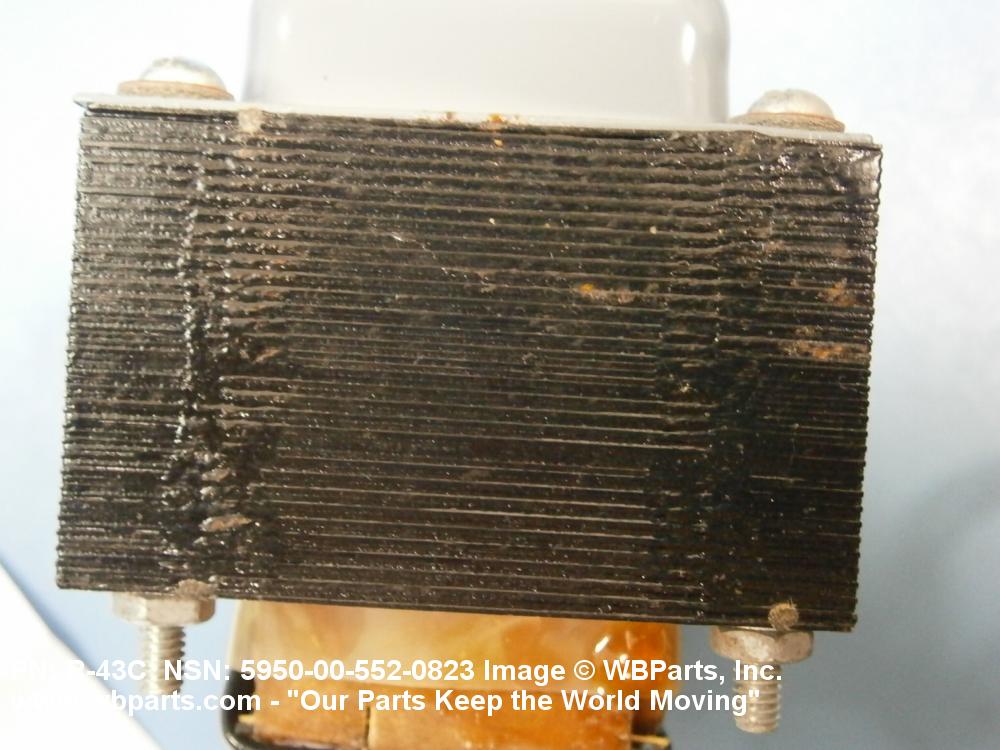

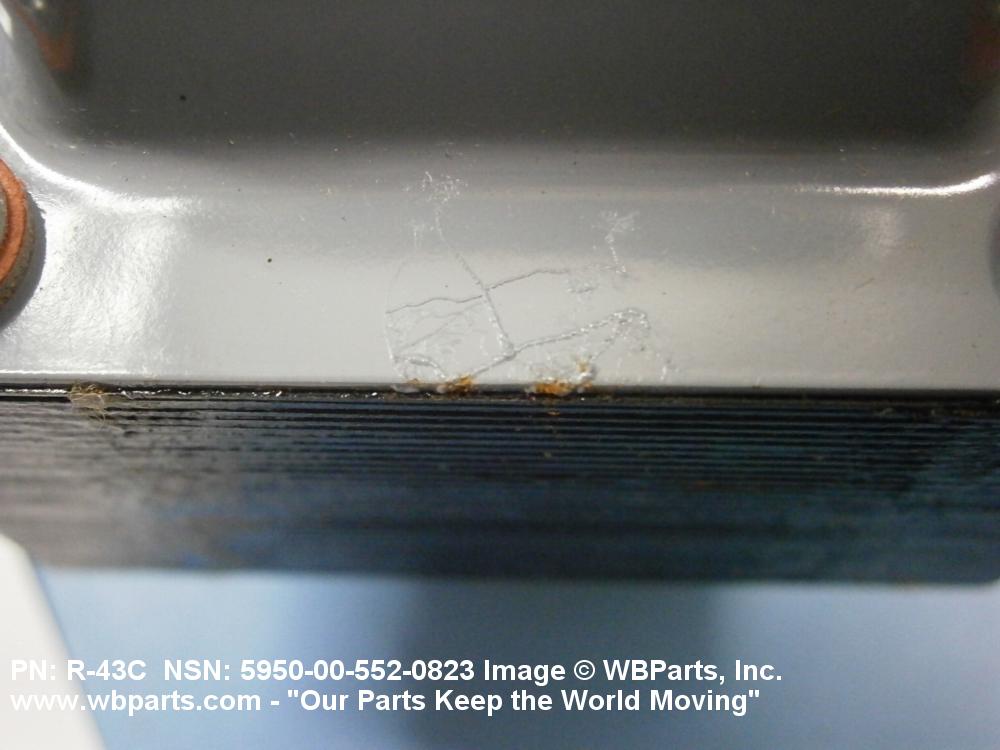

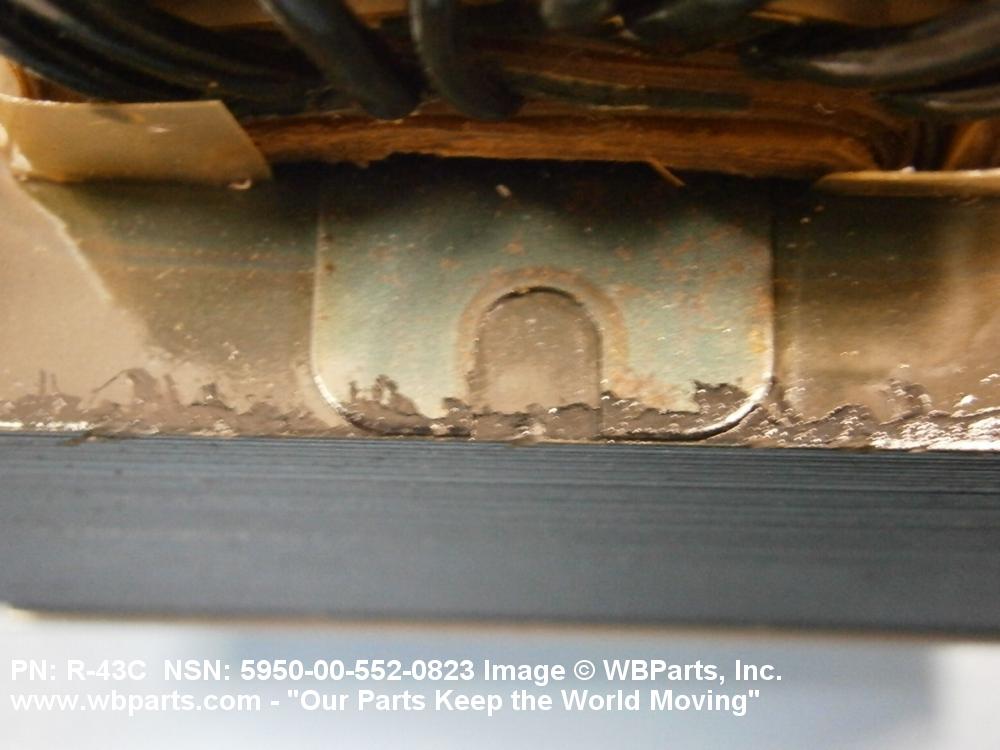

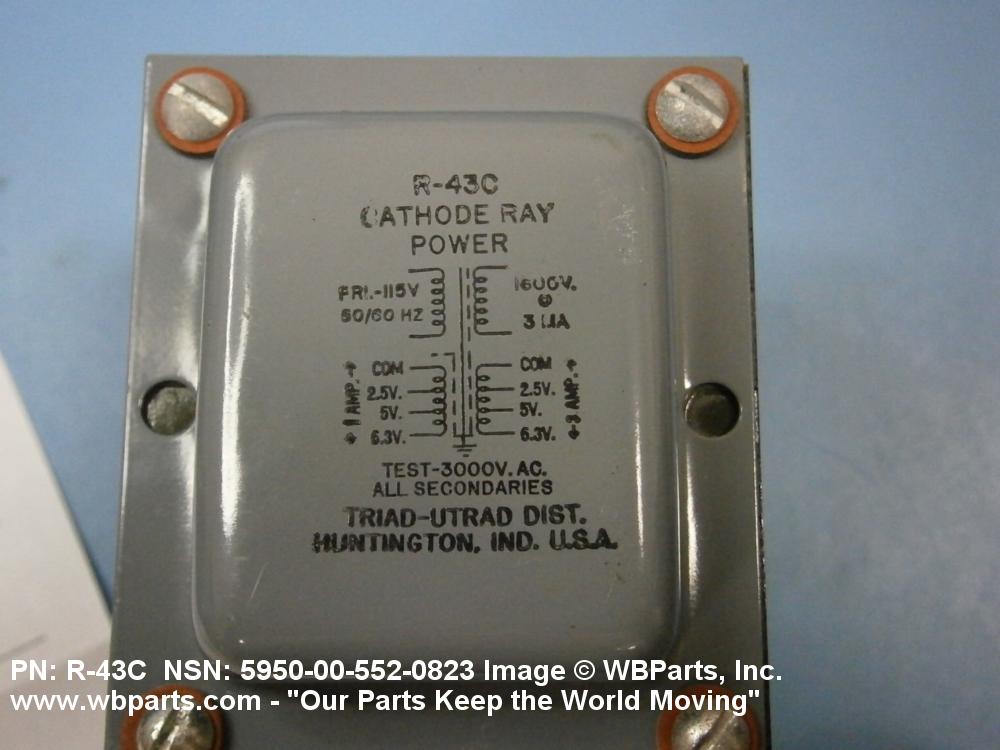

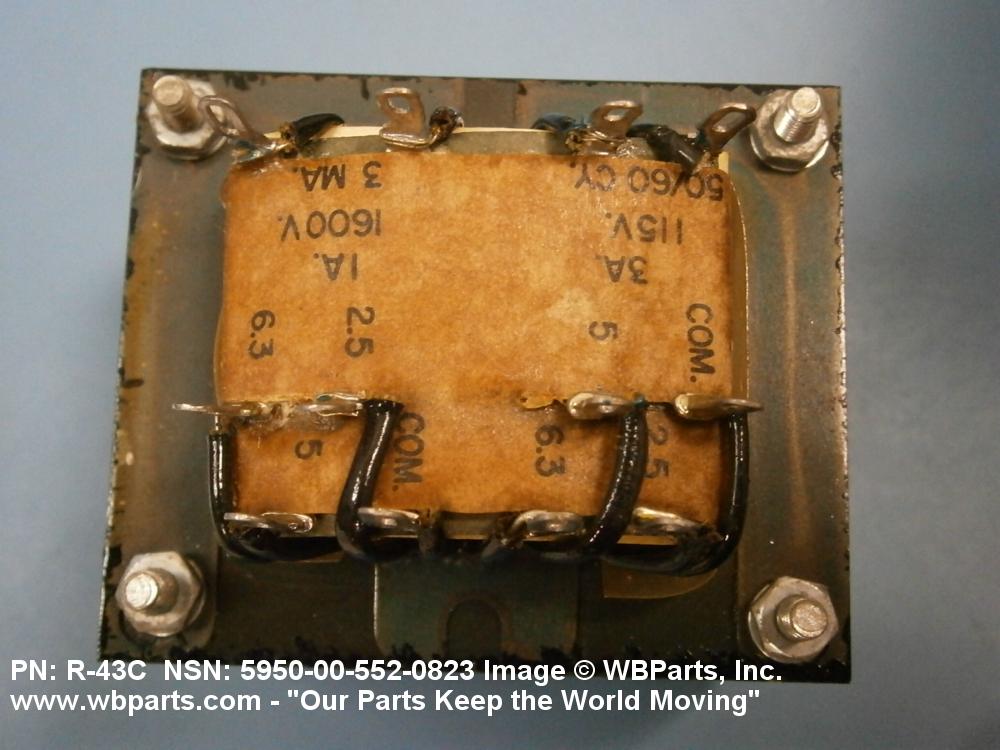

Drawings & Photos | NSN 5950-00-552-0823
Demand History | NSN 5950-00-552-0823
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-00-552-0823 | 2011-09-244 | 2 | United States |
| 5950-00-552-0823 | 2010-05-148 | 2 | United States |
| 5950-00-552-0823 | 2010-05-134 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-552-0823
Technical Data | NSN 5950-00-552-0823
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 12 TAB, SOLDER LUG |
| (NON-CORE DATA) WINDING TAP LOCATION | MULTIPLE TAPS W/O CENTER TAP SINGLE COMPONENT 1ST SECONDARY MULTIPLE TAPS W/O CENTER TAP SINGLE COMPONENT 2ND SECONDARY |
| WINDING OPERATING VOLTAGE | 2.50 AC VOLTS NOMINAL AND 5.00 AC VOLTS NOMINAL AND 6.30 AC VOLTS NOMINAL SINGLE COMPONENT 1ST SECONDARY 2.50 AC VOLTS NOMINAL AND 5.00 AC VOLTS NOMINAL AND 6.30 AC VOLTS NOMINAL SINGLE COMPONENT 2ND SECONDARY 1.60 AC KILOVOLTS NOMINAL SINGLE COMPONENT 3RD SECONDARY 115.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| WINDING OPERATING CURRENT | 375.0 MILLIAMPERES AC MAXIMUM AND 750.0 MILLIAMPERES AC MAXIMUM AND 1.0 AMPERES AC MAXIMUM SINGLE COMPONENT 1ST SECONDARY 1.125 AMPERES AC MAXIMUM AND 2.25 AMPERES AC MAXIMUM AND 3.0 AMPERES AC MAXIMUM SINGLE COMPONENT 2ND SECONDARY 3.0 MILLIAMPERES AC MAXIMUM SINGLE COMPONENT 3RD SECONDARY |
| FREQUENCY RATING | 50.0 HERTZ NOMINAL OR 60.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING SHIELDING METHOD | INTERNAL SHIELD GROUNDED TO CORE SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 3 SECONDARY SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | THREADED STUD SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| THREAD SERIES DESIGNATOR | UNC SINGLE GROUP |
| NOMINAL THREAD SIZE | 0.164 INCHES SINGLE GROUP |
| THREAD QUANTITY PER INCH | 32 SINGLE GROUP |
| (NON-CORE DATA) THREAD CLASS | 2A SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.500 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.000 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | OPEN |
| BODY LENGTH | 3.000 INCHES NOMINAL |
| BODY HEIGHT | 2.250 INCHES NOMINAL |
| BODY WIDTH | 2.500 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5950-00-552-0823
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-552-0823
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
