NSN 5950-00-251-3611 BE09024002, BE09024-002, 00-251-3611

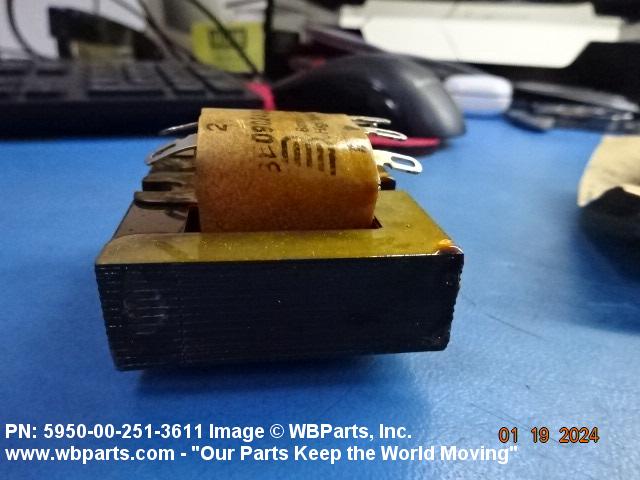

Product Details | AUDIO FREQUENCY TRANSFORMER
5950-00-251-3611 A transformer which is designed so that part or all of its range of operating frequencies is 20 kilohertz (kilocycles) and below. The maximum value may extend into the radio frequency range. It is generally used in the input, output, amplifier, or oscillator stages of audio and sonar devices.
Part Alternates: BE09024002, BE09024-002, 5950-00-251-3611, 00-251-3611, 5950002513611, 002513611
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUN 1973 | 00-251-3611 | 00780 ( TRANSFORMER, AUDIO FREQUENCY ) |

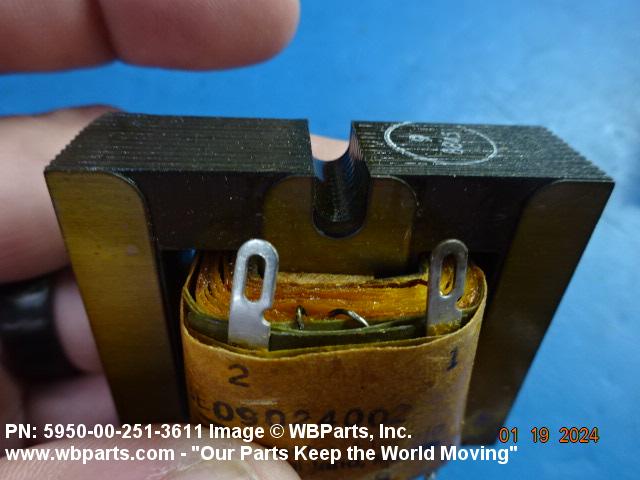

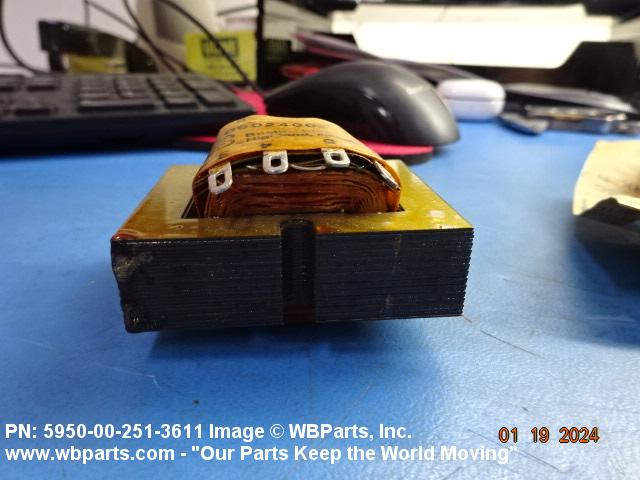

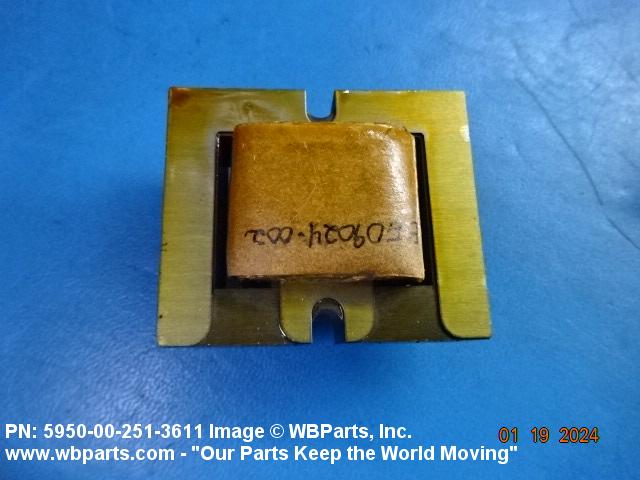

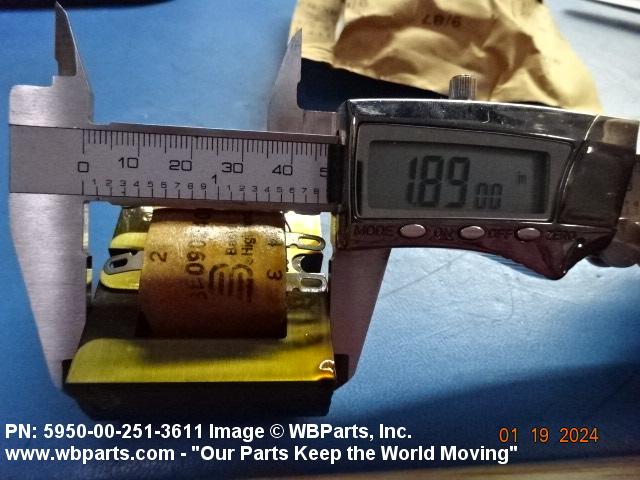

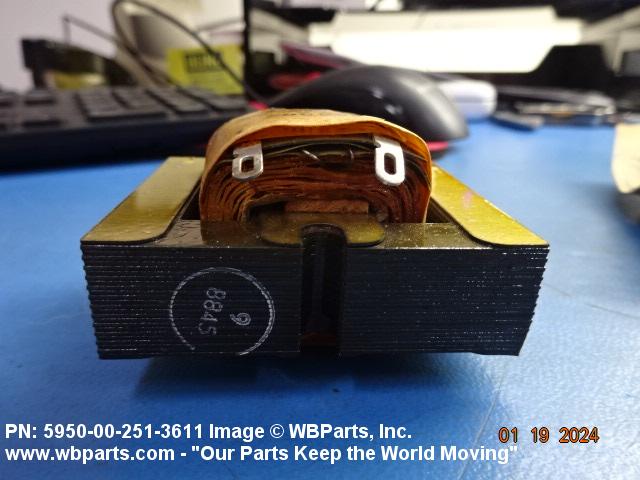

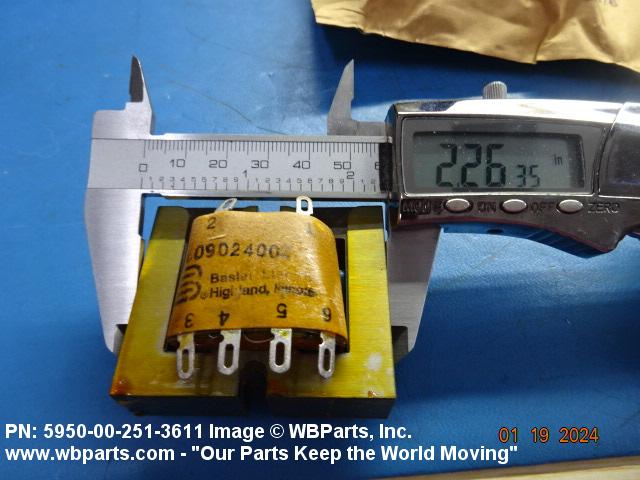

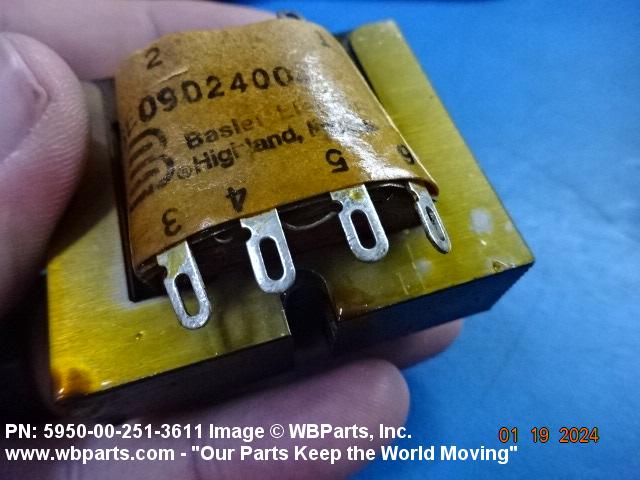

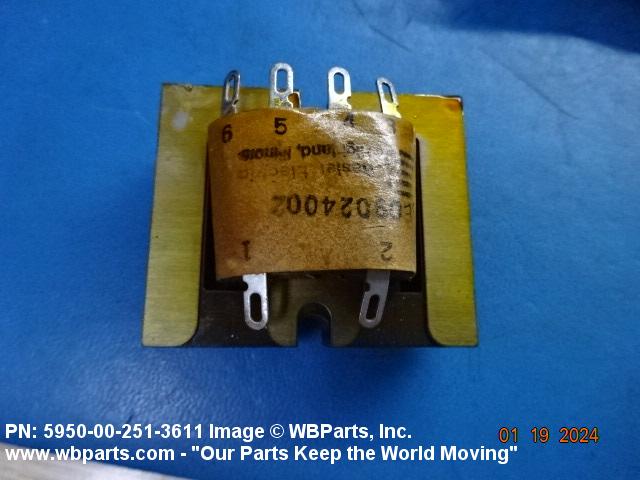

Drawings & Photos | NSN 5950-00-251-3611
Demand History | NSN 5950-00-251-3611
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-00-251-3611 | 2024-01-08 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-251-3611
Technical Data | NSN 5950-00-251-3611
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 2 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |
| MOUNTING SLOT WIDTH | 0.219 INCHES NOMINAL SINGLE GROUP |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.625 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | OPEN |
| BODY LENGTH | 2.250 INCHES NOMINAL |
| BODY HEIGHT | 1.500 INCHES NOMINAL |
| BODY WIDTH | 1.875 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 97520 |
| DESIGN CONTROL REFERENCE | BE09024-002 |
