NSN 5950-00-246-9755 3737301, 373730-1, 3737305
Product Details | RADIO FREQUENCY COIL ASSEMBLY
5950-00-246-9755 Two or more coils on a common mounting or mounted on each other. Excludes items inductively coupled.
Part Alternates: 3737301, 373730-1, 3737305, 373730-5, 5950-00-246-9755, 00-246-9755, 5950002469755, 002469755
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 DEC 1971 | 00-246-9755 | 00345 ( COIL ASSEMBLY, RADIO FREQUENCY ) |

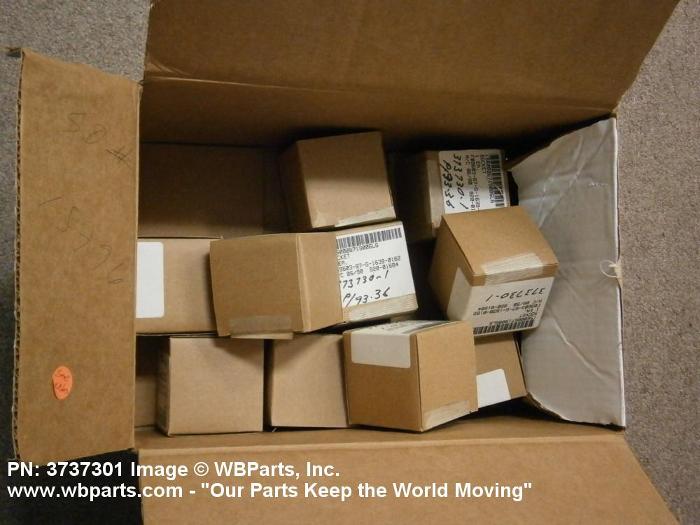

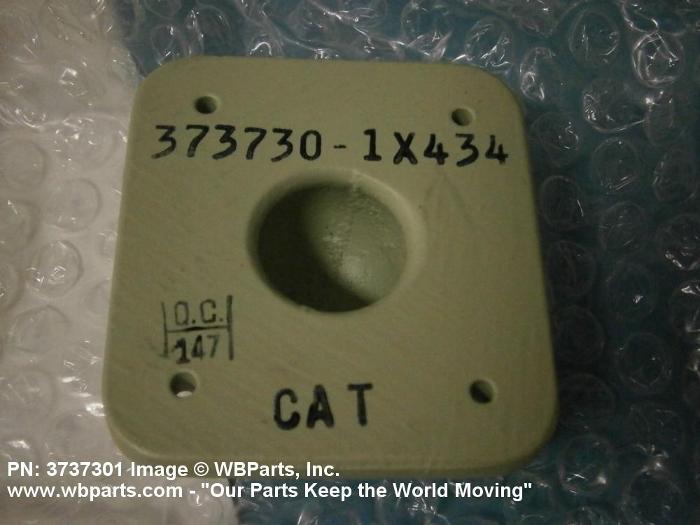

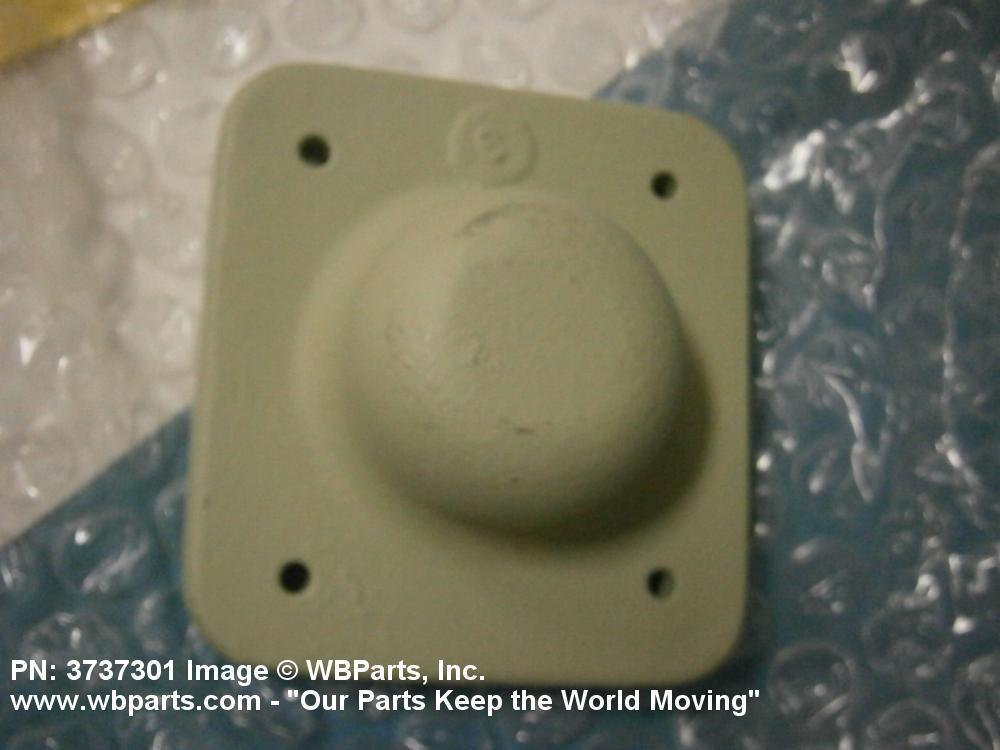

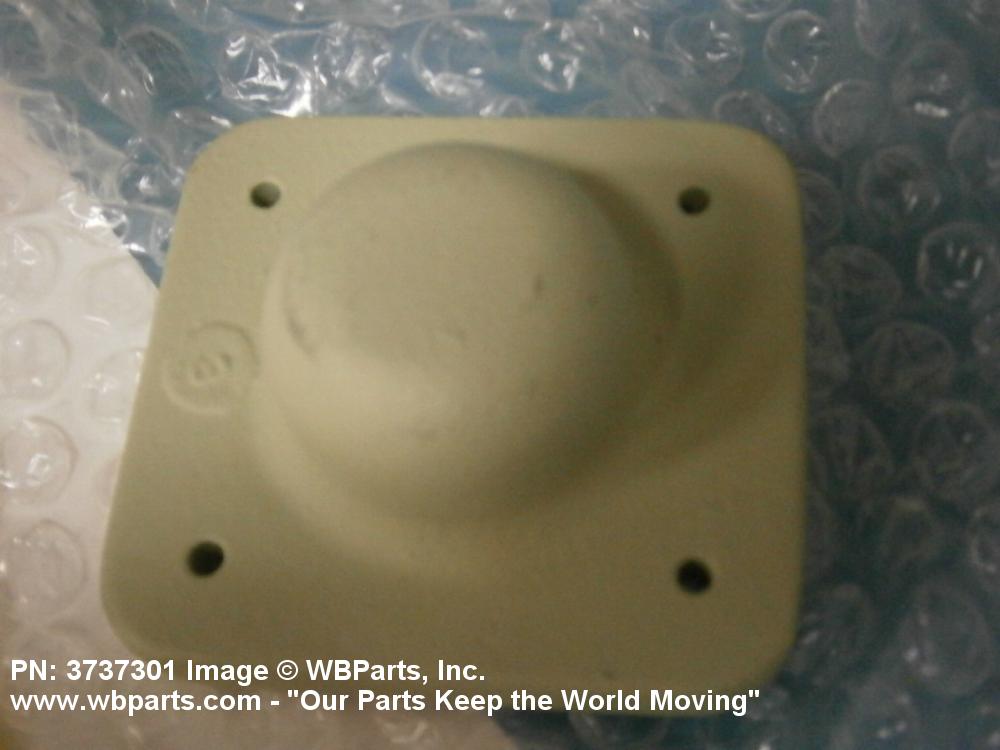

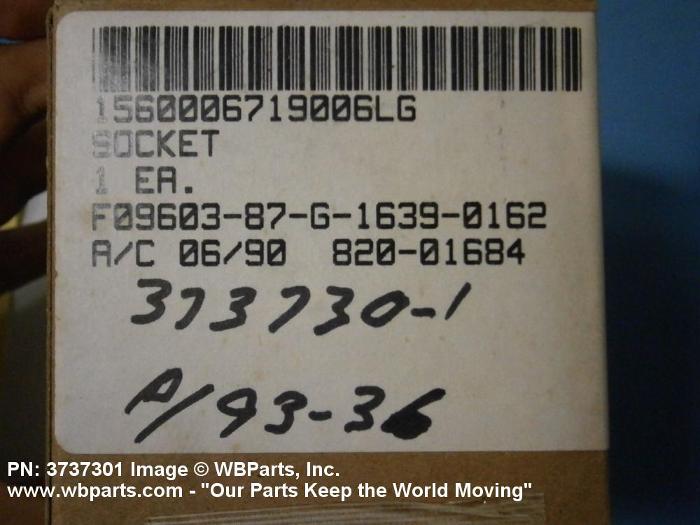

Drawings & Photos | NSN 5950-00-246-9755
Demand History | NSN 5950-00-246-9755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3737301 | 2012-06-164 | 10 | United States |
| 3737301 | 2012-05-137 | 10 | United States |
| 373730-1 | 2012-04-100 | 10 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-00-246-9755
Related Products | NSN 5950-00-246-9755
Technical Data | NSN 5950-00-246-9755
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| (NON-CORE DATA) COMPONENT NAME AND QUANTITY | 2 COIL |
| RATING METHOD | ELECTRICAL SINGLE COMPONENT ALL WINDING |
| WINDING OPERATING VOLTAGE | 530.00 AC VOLTS NOMINAL SINGLE COMPONENT ALL WINDING |
| WINDING OPERATING CURRENT | 7.5 AMPERES AC NOMINAL SINGLE COMPONENT ALL WINDING |
| DC RESISTANCE RATING IN OHMS | 0.125 SINGLE COMPONENT ALL WINDING |
| INDUCTANCE RATING | 29.00 MICROHENRIES NOMINAL SINGLE COMPONENT ALL WINDING |
| (NON-CORE DATA) MINIMUM SELF-RESONANT FREQUENCY | 4.9 MEGAHERTZ SINGLE COMPONENT |
| COIL FORM TYPE | SOLID SINGLE COMPONENT |
| CORE CONSTRUCTION | S0LID SINGLE COMPONENT |
| WINDING QUANTITY | 2 SINGLE COMPONENT |
| MOUNTING METHOD | UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 1 SINGLE GROUP |
| MOUNTING HOLE DIAMETER | 1.500 INCHES NOMINAL SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 2.940 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 3.995 INCHES MINIMUM AND 4.005 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | COILS MOUNT CONCENTRICALLY ON THE CATHODE-RAY TUBE NECK |
| III MAXIMUM OPERATING TEMP | 85.0 DEG CELSIUS |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 2.500 POUNDS |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT AND FUNGUS RESISTANT |
Restrictions/Controls & Freight Information | NSN 5950-00-246-9755
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061360 | COILS/YOKES FOCUS/DEFLECTION TV |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-246-9755
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
