5945-01-135-2089 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. In lieu of separable contacts and their actuator(s), the switching function is accomplished by means of an arrangement of semiconductors and passive circuit devices. The device is designed to have electrical isolation between control circuit and output circuit. Excludes RELAY, HYBRID.

Part Alternates: 0008005631, 000-8005-631, 2835501822, 283550-1822, 6012, 601-2, 5945-01-135-2089, 01-135-2089, 5945011352089, 011352089

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG) NSN Assign. NIIN
59 19 JUL 1982 01-135-2089

Drawings & Photos | NSN 5945-01-135-2089


Demand History | NSN 5945-01-135-2089

Part Number Request Date QTY Origin
5945-01-135-2089 2013-04-115 2 United States
6012 2011-02-56 2 United States

Cross Reference | NSN 5945-01-135-2089

Part Number Cage Code Manufacturer
000-8005-631 94756 BOEING COMPANY, THE DBA BOEING
283550-1822 U6441 UTC AEROSPACE SYSTEMS LIMITED DBA GOODRICH SENSORS AND INTEGRATED
601-2 11532 TELEDYNE REYNOLDS, INC. DBA TELEDYNE RELAYS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-135-2089

Technical Data | NSN 5945-01-135-2089

Characteristic Specifications

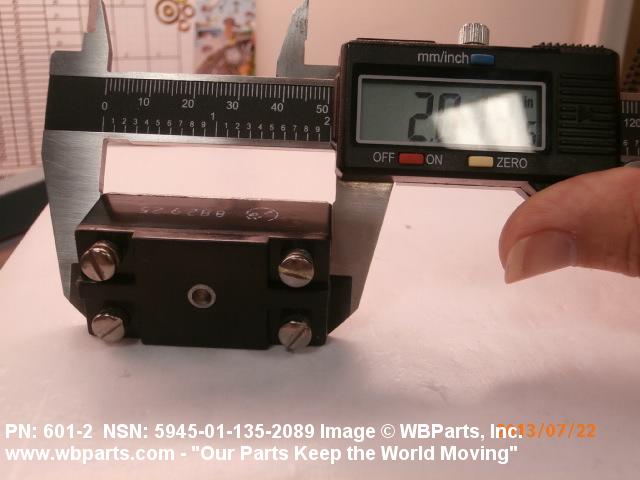

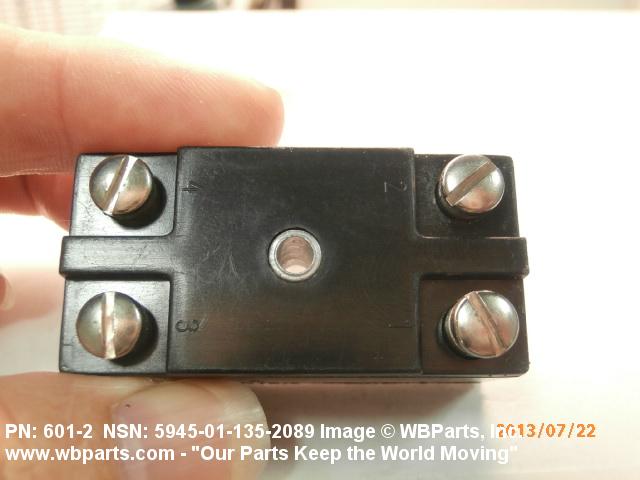

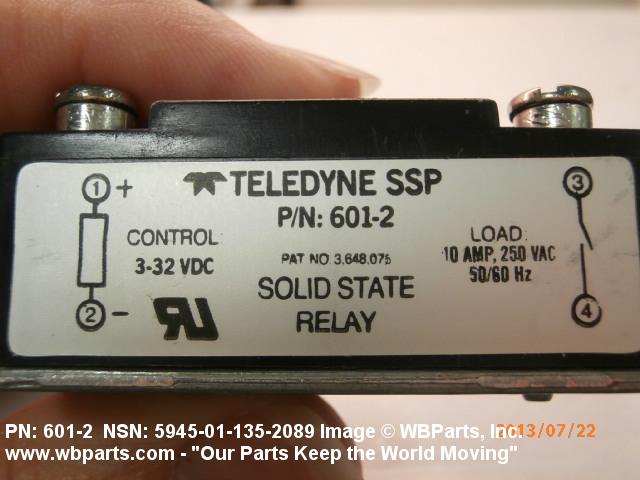

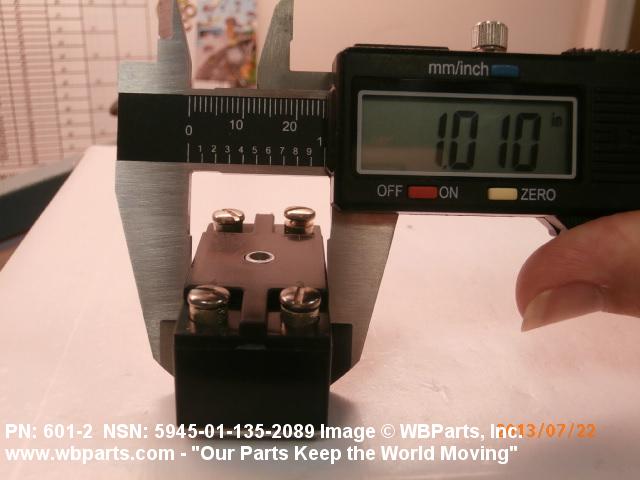

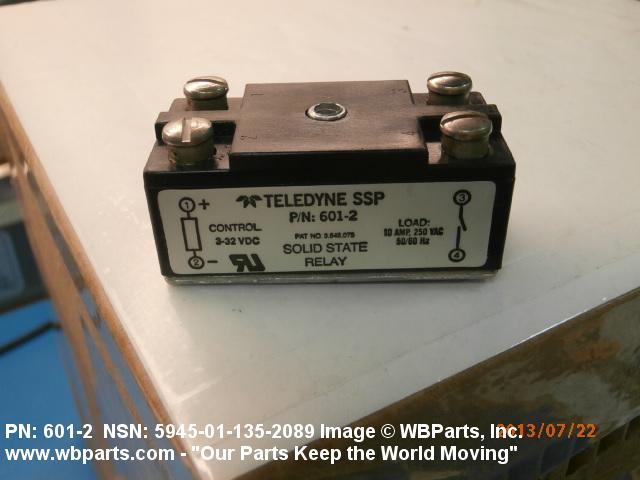

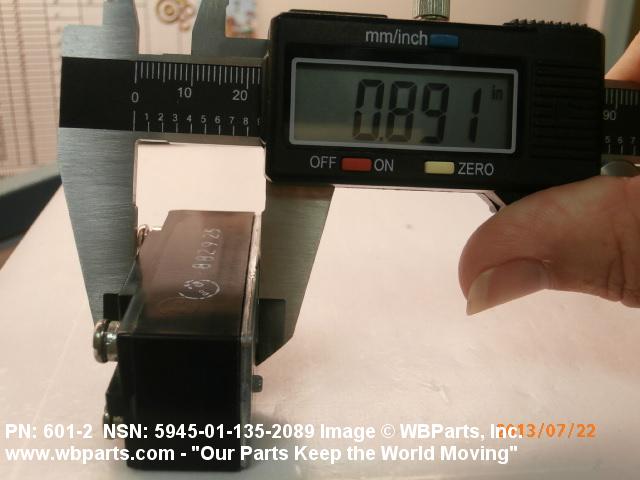

SPECIAL FEATURES INPUT CONTROL VOLTAGE 3 TO 32 VDC; 10 AMPS; 2.000 IN. LG; 1.000 IN. W; 0.960 IN. H; 0.201 IN. DIA CENTER MTG HOLE

Restrictions/Controls & Freight Information | NSN 5945-01-135-2089

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
