NSN 5945-01-070-9928 M6106/25-002, M6106/25-003, M610625002
Product Details | ELECTRICAL RELAY RETAINER
5945-01-070-9928 An item specifically designed to position and/or restrain the movement of one or more electrical relays in their normal mounting position. It may also include provisions for mounting terminal boards, connectors, and like items. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: M6106/25-002, M6106/25-003, M610625002, M610625003, CX73945C, CX7-3945C, MIL-R-6106/25, MILR610625, 5945-01-070-9928, 01-070-9928, 5945010709928, 010709928
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JAN 1979 | 01-070-9928 | 60955 ( RETAINER, ELECTRICAL RELAY ) |
Drawings & Photos | NSN 5945-01-070-9928
Demand History | NSN 5945-01-070-9928
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M610625002 | 2023-01-10 | 1 | US |
| 5945-01-070-9928 | 2021-04-119 | 10 | United States |
| M610625003 | 2015-03-68 | 8 | United States |
| M610625003 | 2011-09-272 | 8 | US |
| M610625003 | 2007-03-68 | 20 | United States |
Cross Reference | NSN 5945-01-070-9928
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-070-9928
Technical Data | NSN 5945-01-070-9928
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |

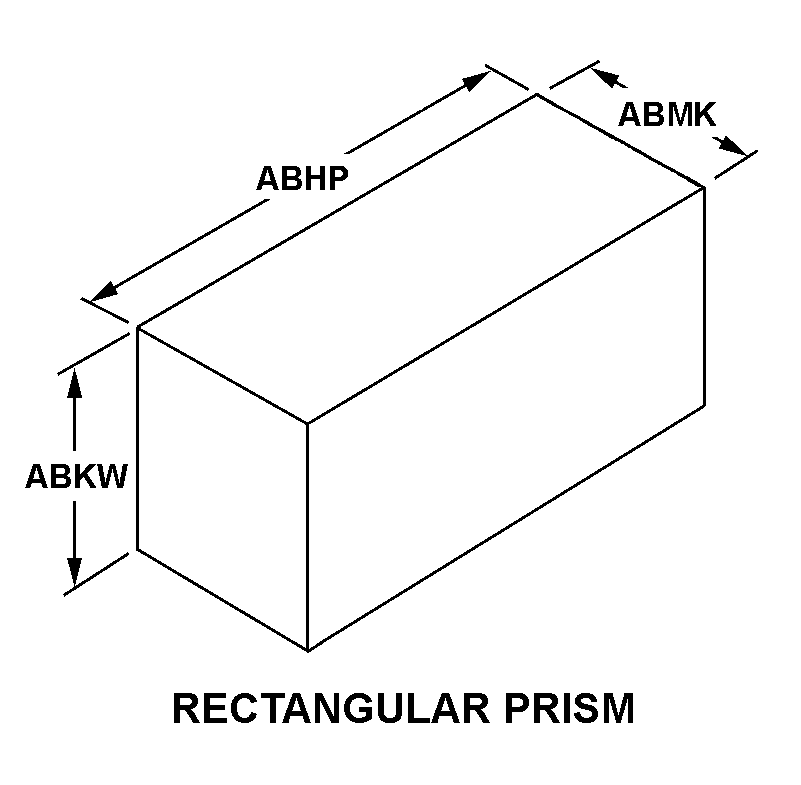

| STYLE DESIGNATOR | 1C RECTANGULAR PRISM |
| OVERALL LENGTH | 1.720 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES MAXIMUM |
| OVERALL WIDTH | 1.060 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BRACKET SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-6106/25 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-6106/25 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M6106/25-003 |
Restrictions/Controls & Freight Information | NSN 5945-01-070-9928
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-070-9928
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
