NSN 5945-00-883-6915 336C002H15, 54170001HS, 5417-0001HS
Product Details | ELECTROMAGNETIC RELAY
5945-00-883-6915 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 336C002H15, 54170001HS, 5417-0001HS , 54171HS, 5417-1HS, 5945-00-883-6915, 00-883-6915, 5945008836915, 008836915
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-883-6915 | 32512 ( RELAY, ELECTROMAGNETIC ) |

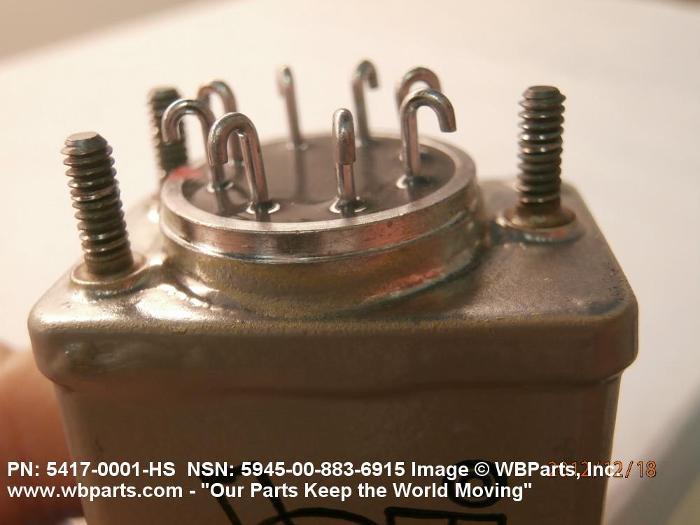

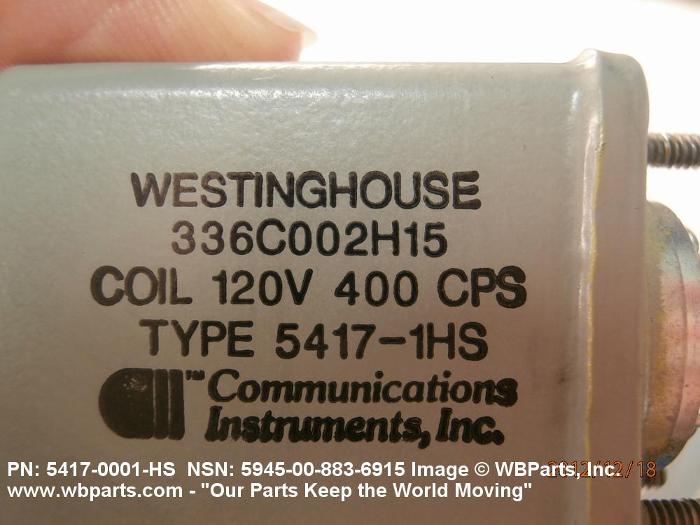

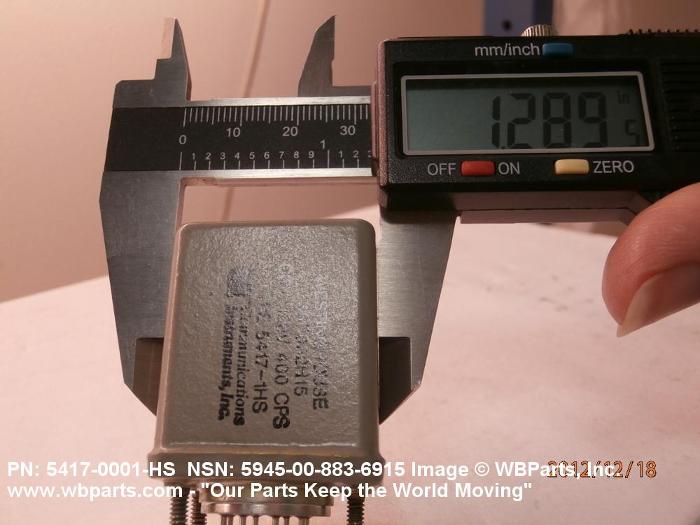

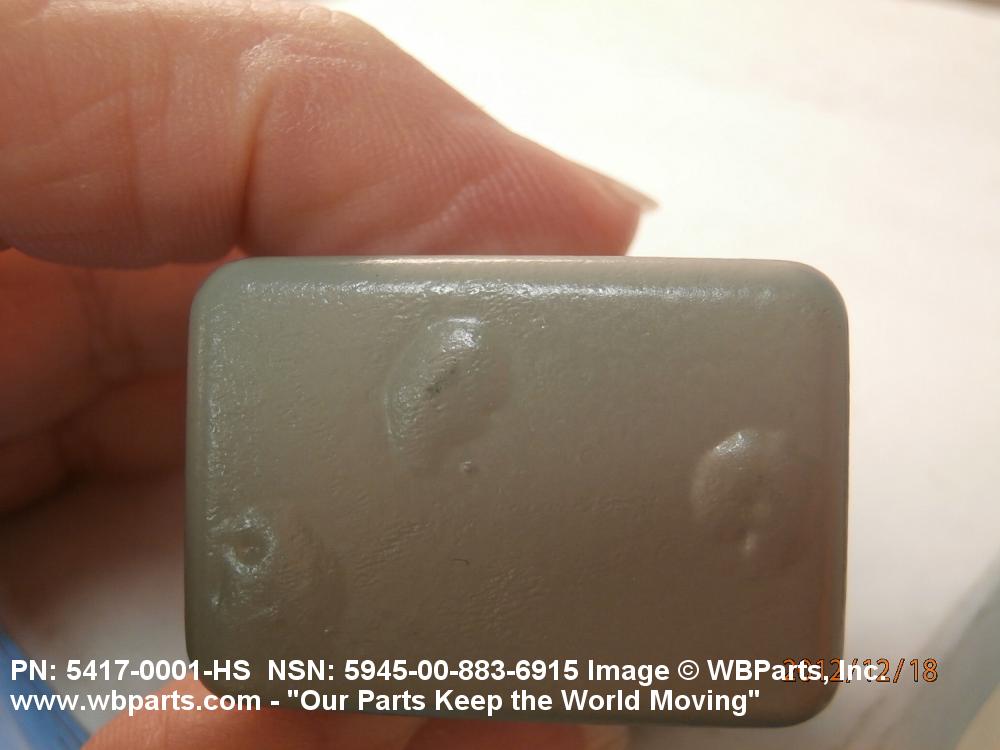

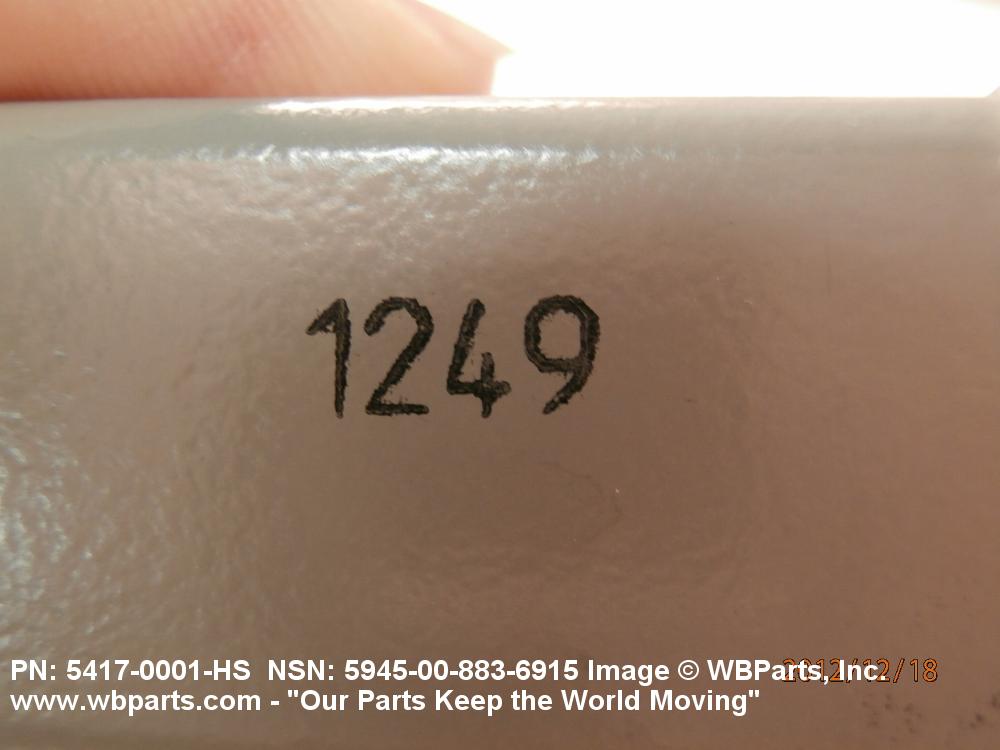

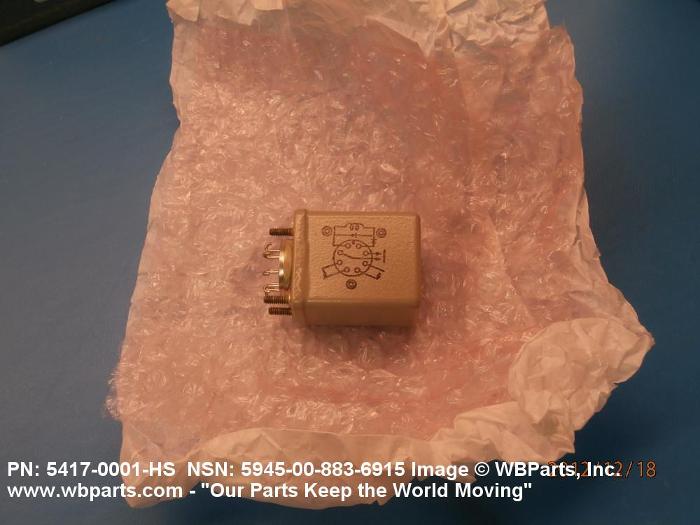

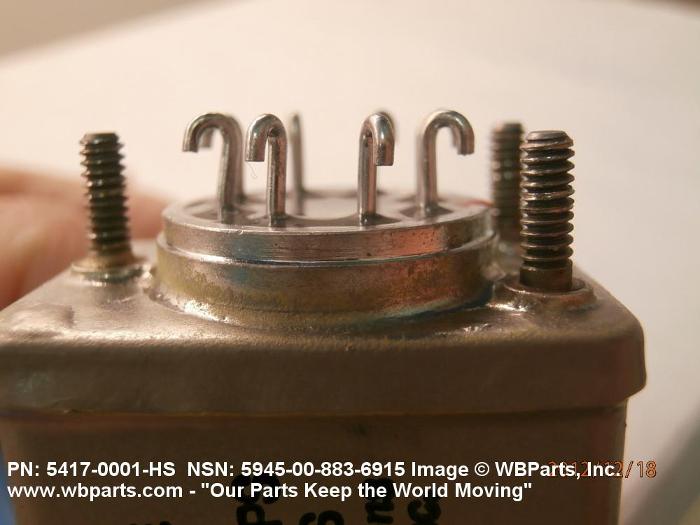

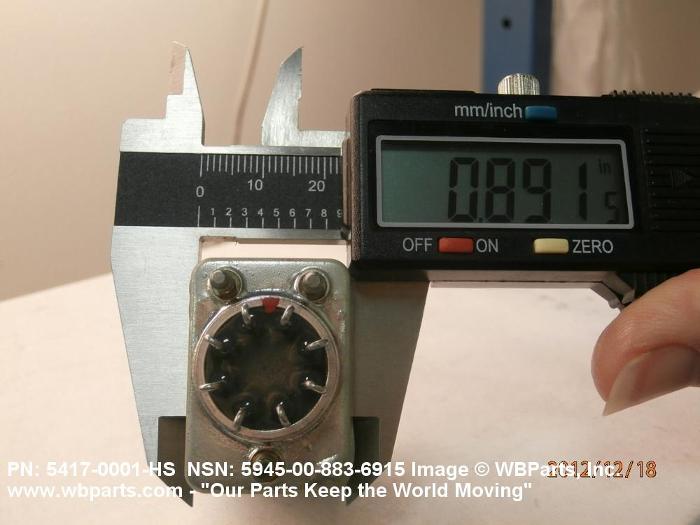

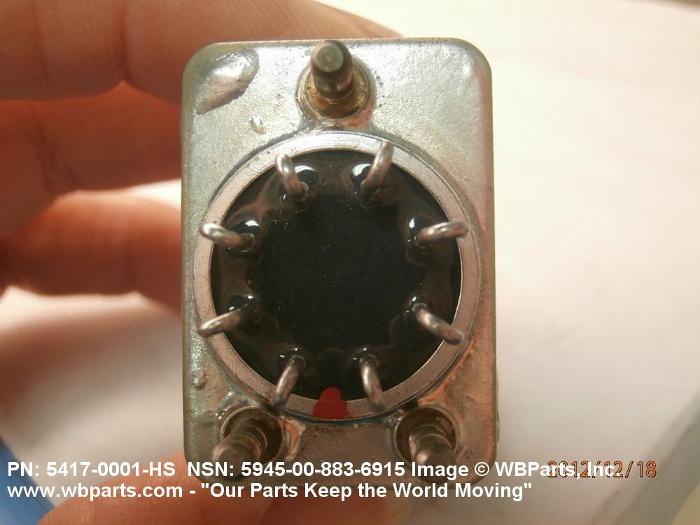

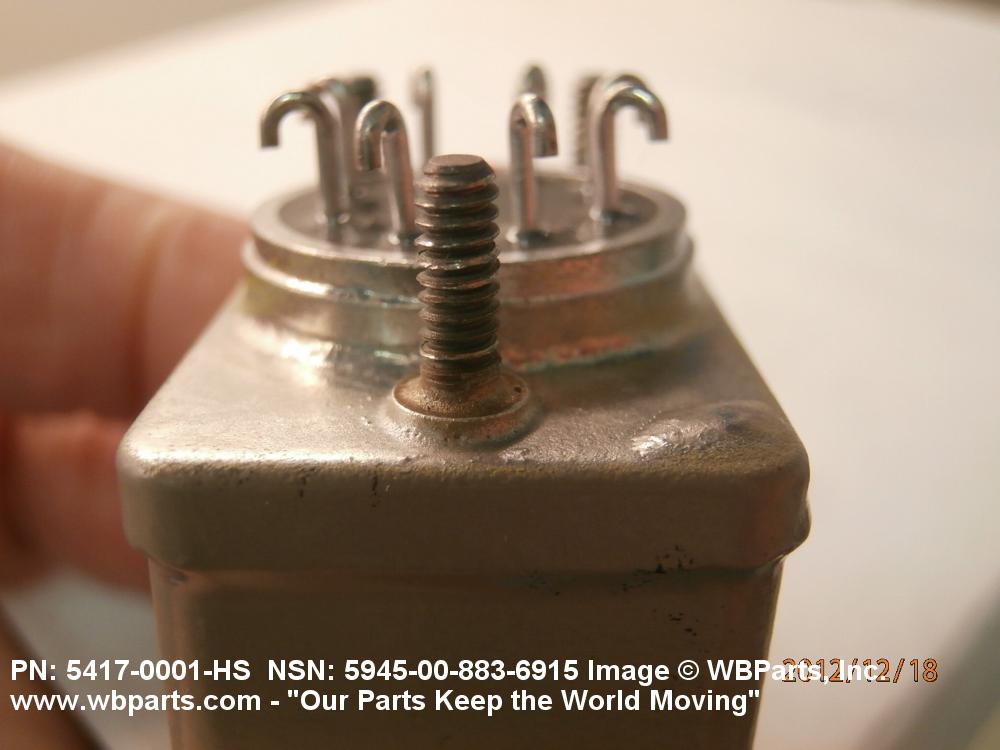

Drawings & Photos | NSN 5945-00-883-6915
Demand History | NSN 5945-00-883-6915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 336C002H15 | 2024-07-204 | 6 | DIBBS |
| 5417-0001HS | 2024-07-204 | 6 | DIBBS |
| 336C002H15 | 2024-07-191 | 6 | DIBBS |
| 5417-0001HS | 2024-07-191 | 6 | DIBBS |
| 5945-00-883-6915 | 2024-05-152 | 4 | United States |
| 5945-00-883-6915 | 2024-05-152 | 8 | United States |
| 5945-00-883-6915 | 2024-04-100 | 1 | Taiwan |
| 5945-00-883-6915 | 2024-03-64 | 1 | TW |
| 336C002H15 | 2024-02-43 | 10 | US |
| 5945-00-883-6915 | 2023-09-255 | 1 | Taiwan |
| 5945-00-883-6915 | 2023-08-230 | 1 | Taiwan |
| 5945-00-883-6915 | 2022-02-54 | 1 | Serbia |
| 5945-00-883-6915 | 2019-08-239 | 4 | US |
| 5945-00-883-6915 | 2018-12-364 | 4 | PK |
| 5945-00-883-6915 | 2018-09-272 | 4 | United States |
| 5945-00-883-6915 | 2018-09-267 | 4 | Pakistan |
| 5945-00-883-6915 | 2018-01-18 | 10 | DIBBS |
| 5945-00-883-6915 | 2017-10-288 | 9 | DIBBS |
| 5945-00-883-6915 | 2017-03-82 | 2 | YU |
| 5945-00-883-6915 | 2017-02-37 | 13 | DIBBS |
| 5945-00-883-6915 | 2016-12-354 | 5 | DIBBS |
| 5945-00-883-6915 | 2016-12-340 | 5 | DIBBS |
| 5945-00-883-6915 | 2016-11-318 | 5 | DIBBS |
| 5945-00-883-6915 | 2015-09-267 | 5 | DIBBS |
| 336C002H15 | 2015-08-234 | 5 | DE |
| 336C002H15 | 2014-06-162 | 4 | US |
| 5945-00-883-6915 | 2014-06-162 | 4 | MANUAL |
| 5945-00-883-6915 | 2014-04-96 | 6 | DIBBS |
| 336C002H15 | 2014-03-70 | 3 | us |
| 5945-00-883-6915 | 2014-01-21 | 3 | US |
| 336C002H15 | 2013-11-313 | 3 | us |
| 5945-00-883-6915 | 2013-10-283 | 3 | DIBBS |
| 5945-00-883-6915 | 2012-08-220 | 3 | United States |
| 336C002H15 | 2012-01-30 | 10 | United States |
| 5945-00-883-6915 | 2012-01-11 | 3 | US |
| 54171HS | 2011-10-286 | 5 | United States |
| 336C002H15 | 2011-10-283 | 6 | YU |
| 5945-00-883-6915 | 2011-09-269 | 6 | YU |
| 5945-00-883-6915 | 2011-09-255 | 3 | United States |
| 336C002H15 | 2011-09-250 | 5 | US |
| 5945-00-883-6915 | 2011-05-129 | 3 | DIBBS |
| 5945-00-883-6915 | 2011-04-91 | 9 | DIBBS |
| 5945-00-883-6915 | 2010-08-235 | 6 | DIBBS |
| 54171HS | 2010-05-139 | 1 | US |
| 5945-00-883-6915 | 2010-04-118 | 1 | US |
| 5945-00-883-6915 | 2009-11-322 | 6 | DIBBS |
| 5945-00-883-6915 | 2008-11-322 | 4 | DIBBS |
| 5945-00-883-6915 | 2008-05-123 | 3 | US |
| 336C002H15 | 2007-06-155 | 6 | US |
Cross Reference | NSN 5945-00-883-6915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 336C002H15 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 336C002H15 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 5417-0001HS | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| 5417-1HS | 00779 | TYCO ELECTRONICS CORPORATION |
| 5417-1HS | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-883-6915
Related Products | NSN 5945-00-883-6915
Technical Data | NSN 5945-00-883-6915
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION AND 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 26.5 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.0 AMPERES AC AND 3.0 AMPERES DC RESISTIVE LOAD 3.0 AMPERES AC AND 1.5 AMPERES DC INDUCTIVE LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 120.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 WIRE HOOK ALL FUNCTIONS |
| TIME DELAY | 0.015 SECONDS MAXIMUM FIXED OPERATE TIME 0.01 SECONDS MAXIMUM FIXED RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 1.344 INCHES MAXIMUM |
| OVERALL WIDTH | 0.953 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.921 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED STUD SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TRIANGLE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.500 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE | 1.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.112 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 40 SINGLE MOUNTING FACILITY |
| THREAD DIRECTION | RIGHT-HAND SINGLE MOUNTING FACILITY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 2.460 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 1.700 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CONTACT MATERIAL | SILVER |
| III CASE MATERIAL | METAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5945-00-883-6915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-883-6915
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
